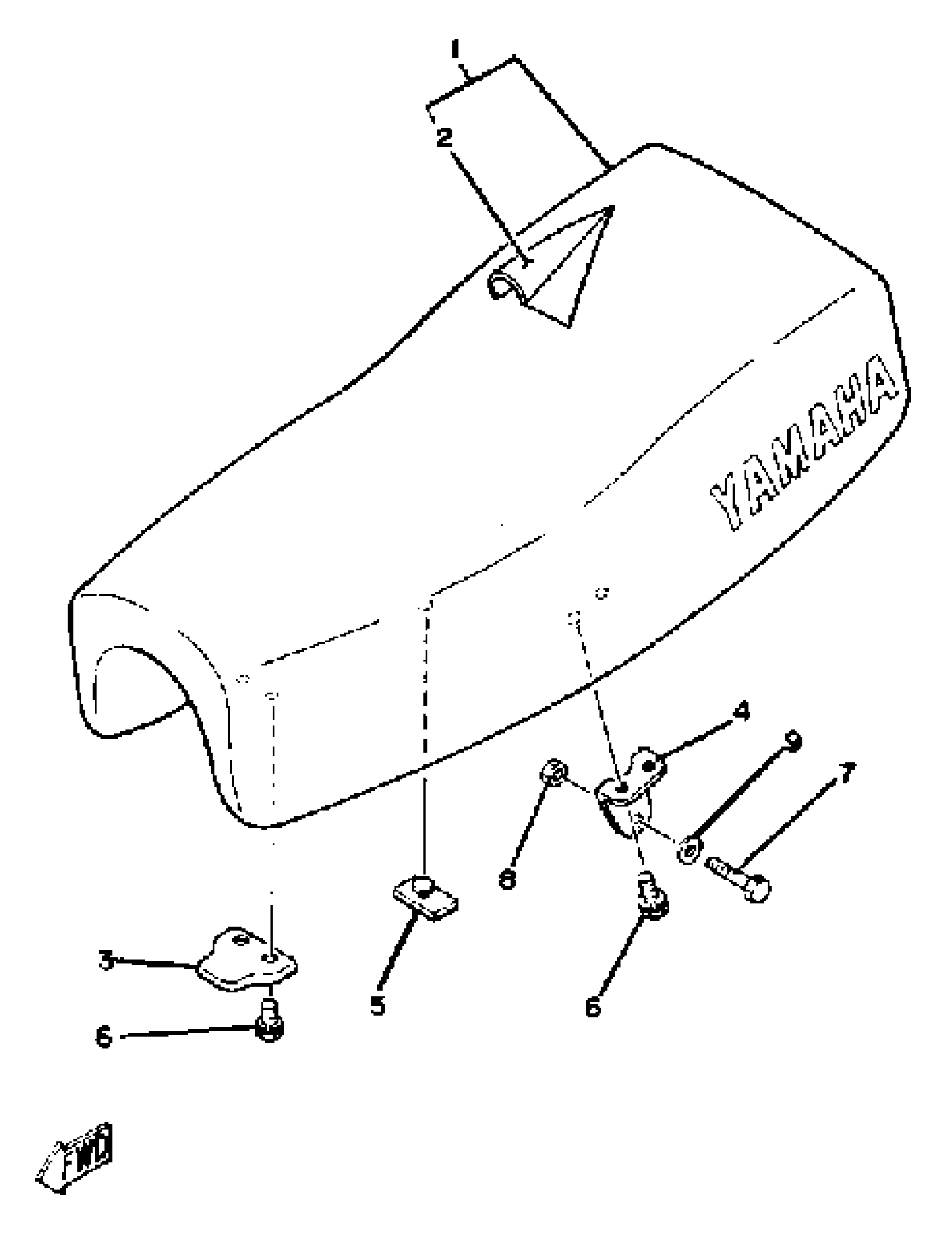

Yamaha YZ125E (YZ125E_F_G) 1978 SEAT YZ125G Diagram

#

Description
Price

1

SEMI-DBL-SEAT ASSEMBLY

(3R3-W2473-00-00)

Unavailable

2

. COVER, SM-DBL SEAT

3R3-24771-00-00

Unavailable

3

BRACKET, SEAT

1M1-24748-00-00

Unavailable

4

BRACKET, SEAT

1W1-24738-00-00

Unavailable

5

DAMPER, SEAT

509-24724-00-00

$8.84

6

BOLT (583)

90101-06304-00

$5.44

7

BOLT(3RV)

97014-06035-00

$1.54

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73
