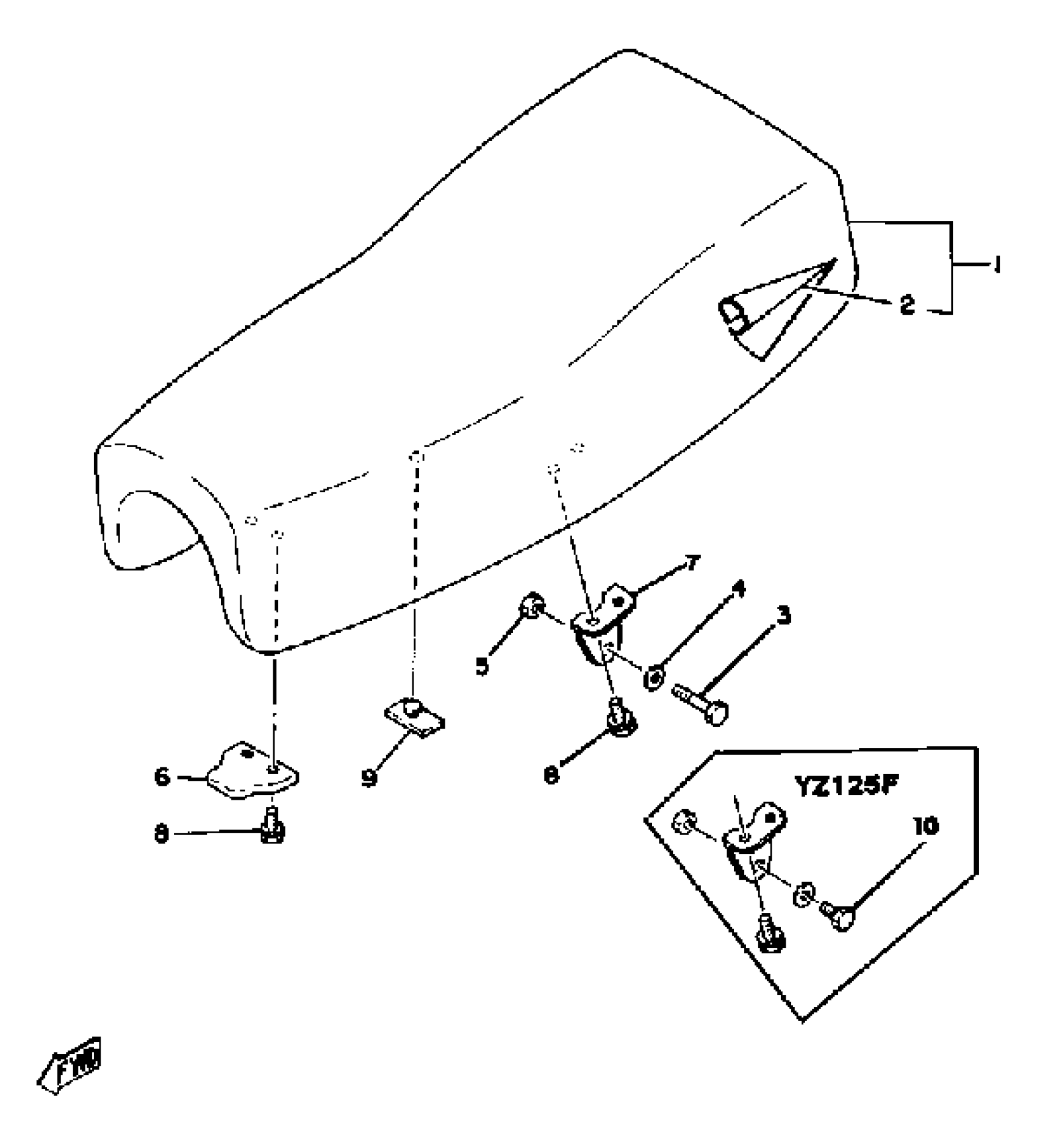

Yamaha YZ125E (YZ125E_F_G) 1978 SEAT YZ125E - F Diagram

#

Description
Price

1

SEMI-DBL SEAT ASSEMBLY

(2K6-24770-90-00)

Unavailable

1

SEMI-DBL-SEAT ASSEMBLY

(2K6-W2473-00-00)

Unavailable

2

COVER, SM-DBL SEAT

(1W4-24771-00-00)

Unavailable

3

BOLT(3RV)

97014-06035-00

$1.54

3

BOLT(3RV)

97014-06035-00

$1.54

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

BRACKET, SEAT

1M1-24748-00-00

Unavailable

7

BRACKET, SEAT

1W1-24738-00-00

Unavailable

8

BOLT (583)

90101-06304-00

$5.44

9

DAMPER, SEAT

509-24724-00-00

$8.84

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78
