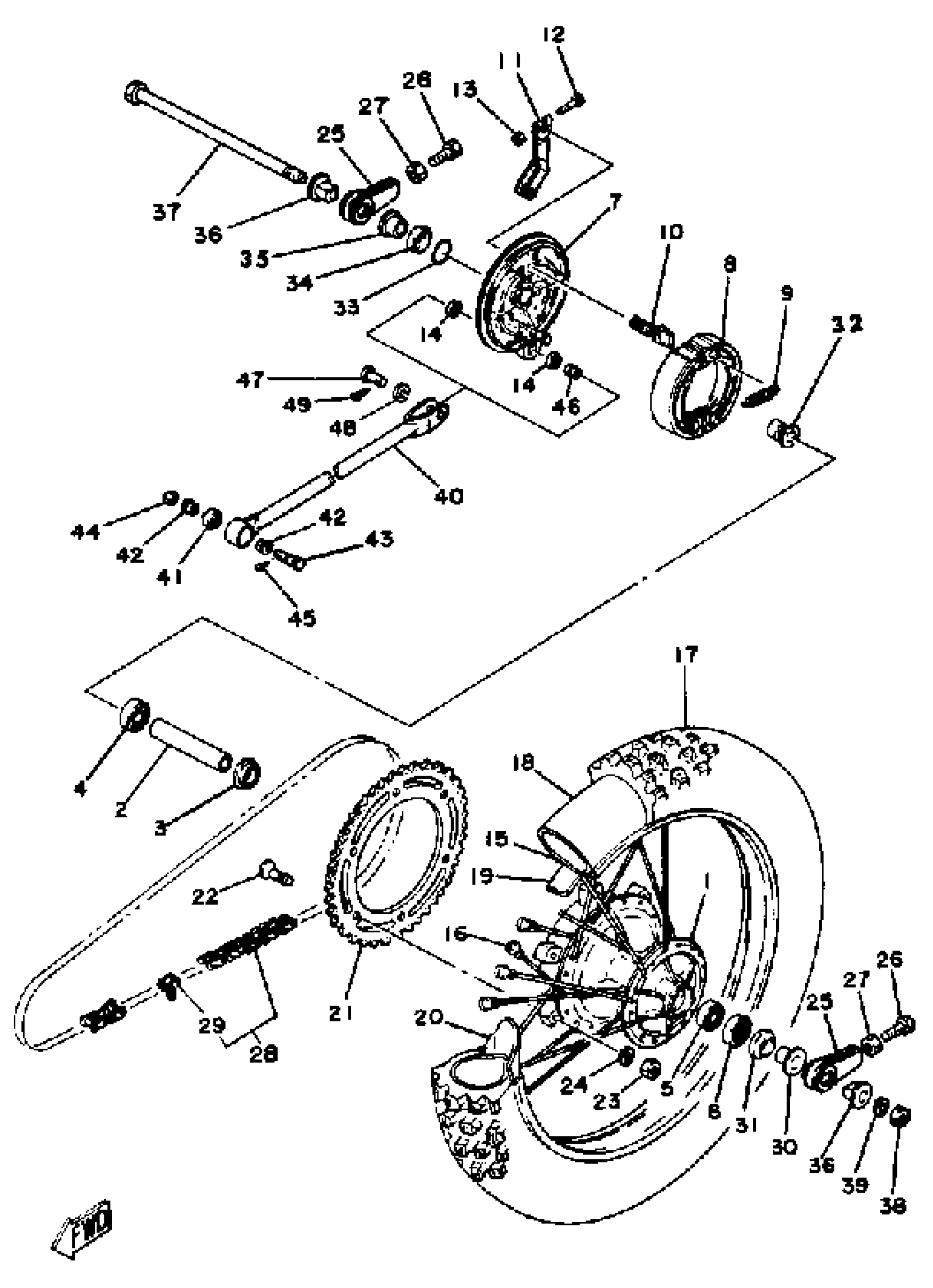

Yamaha YZ125E (YZ125E_F_G) 1978 REAR WHEEL YZ125G Diagram

#

Description
Price

1

HUB, REAR

3R3-25311-02-98

Unavailable

1

SPOKE SET, REAR

4V2-25304-00-00

Unavailable

1

HUB REAR (3R3-25311-00-98)

99999-01159-00

Unavailable

2

SPACER, BEARING

3R3-25317-00-00

Unavailable

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING

93306-30212-00

$40.99

5

BEARING

93306-20205-00

$38.99

6

OIL SEAL, DD-TYPE

93106-22017-00

Unavailable

7

PLATE, BRAKE SHOE

3R3-25321-00-98

Unavailable

8

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

9

SPRING (5T9)

90506-17328-00

Unavailable

10

CAMSHAFT

26A-25351-00-00

Unavailable

11

LEVER, CAMSHAFT (2X3-25355-00)

2X3-25355-01-00

Unavailable

12

BOLT, HEXAGON (538)

90101-06278-00

$2.17

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

OIL SEAL

93104-12003-00

Unavailable

15

RIM 1.85X18

94418-18245-00

Unavailable

16

SPOKE SET, REAR

537-25304-01-00

Unavailable

17

410-18 4PR M22

(94141-18649-00)

Unavailable

18

TUBE (3R9)

94241-18153-00

Unavailable

19

BAND, RIM (2J4)

94340-18086-00

Unavailable

20

SPACER, BEAD

2X3-25394-00-00

Unavailable

21

SPROCKET, DRIVEN 46T

3R4-25446-01-XX

Unavailable

21

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

21

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

22

BOLT, HEX SKT HEAD

90110-08038-00

Unavailable

23

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

24

WASHER, PLAIN

92990-08200-00

Unavailable

25

PULLER, CHAIN 1

2K6-25388-00-00

Unavailable

26

BOLT

90101-08060-00

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

CHAIN 520DS-103L (DID520DS-102L)

9Y585-20101-00

Unavailable

29

JOINT, CHAIN

94681-68001-00

Unavailable

30

COLLAR

90387-15791-00

Unavailable

31

COVER, HUB DUST

3R3-25367-00-00

Unavailable

32

COLLAR

90387-15792-00

Unavailable

33

. O-RING

93210-27ME3-00

Unavailable

34

COVER, PLATE

2X3-25327-00-00

Unavailable

35

COLLAR

90387-15790-00

Unavailable

36

BUSH, SOLID

90381-15029-00

Unavailable

37

AXLE, WHEEL

(3R3-25381-01-00)

Unavailable

38

NUT(1KT)

90170-14349-00

Unavailable

39

WASHER(6TC)

92907-14100-00

Unavailable

40

BAR, TENSION

3R3-25371-00-00

Unavailable

41

BEARING, SPECIAL

93399-99906-00

Unavailable

42

COLLAR

90387-080A8-00

Unavailable

43

BOLT, WITH HOLE

90102-08034-00

Unavailable

44

NUT, U

95617-08100-00

Unavailable

45

PIN, COTTER

91490-20025-00

Unavailable

46

COLLAR

90387-08699-00

Unavailable

47

BOLT, WITH HOLE

90102-08034-00

Unavailable

48

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

49

PIN, COTTER

91490-20025-00

Unavailable
