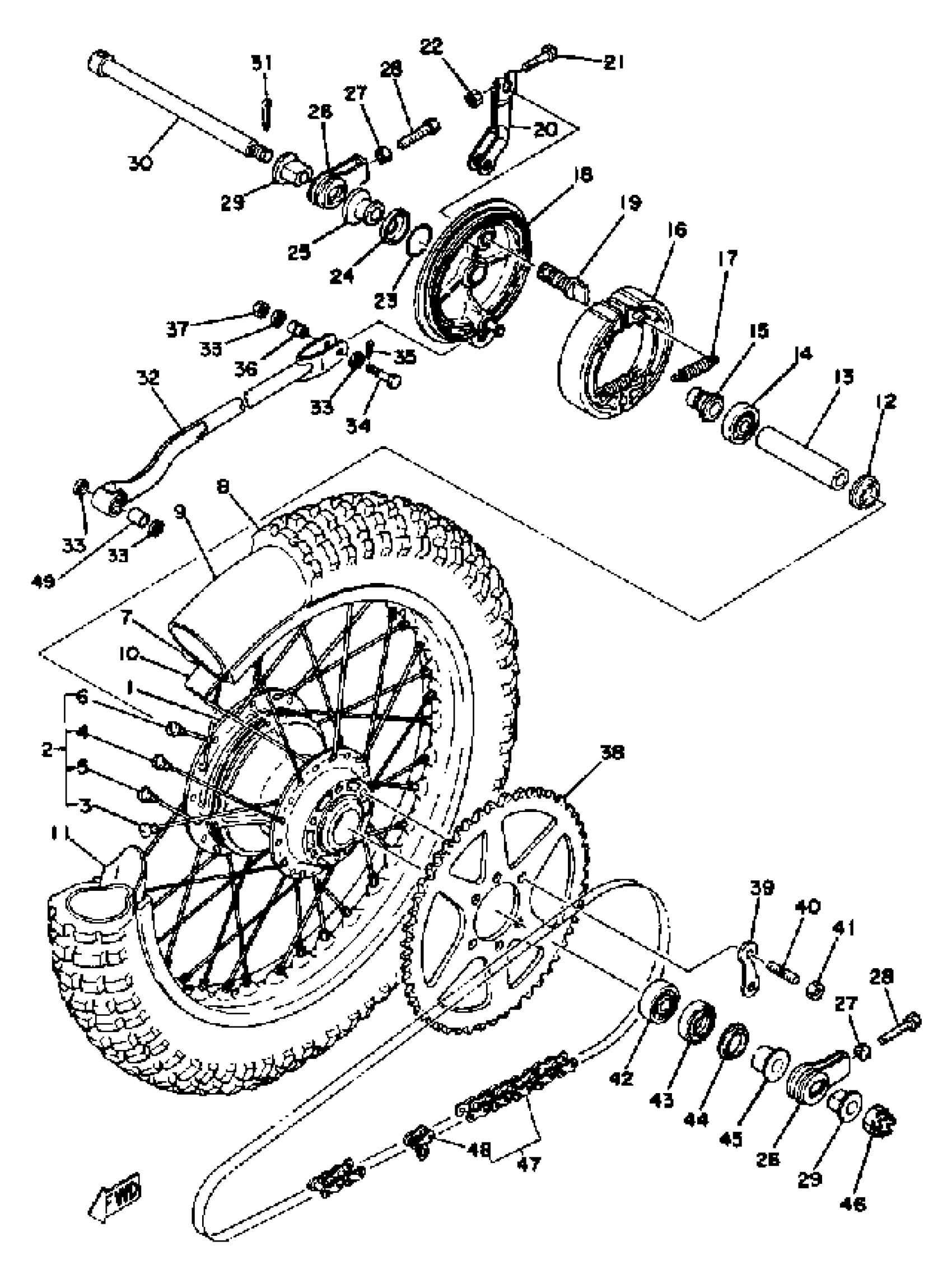

Yamaha YZ125E (YZ125E_F_G) 1978 REAR WHEEL YZ125F Diagram

#

Description
Price

1

HUB, REAR

2X3-25311-00-98

Unavailable

2

SPOKE SET, REAR

537-25304-01-00

Unavailable

3

SPOKE SET, INNER 2

(537-25396-90-00)

Unavailable

4

SPOKE SET, OUTER 2

(537-25397-90-00)

Unavailable

5

SPOKE SET, INNER 1

(537-25391-90-00)

Unavailable

6

SPOKE SET, OUTER 1

(537-25392-90-00)

Unavailable

7

RIM 1.85X18

94418-18245-00

Unavailable

8

410-18 MARK 2 (TT)

(94141-18655-00)

Unavailable

9

TUBE (2RH)

94232-18113-00

$29.99

10

BAND, RIM (2J4)

94340-18086-00

$17.99

11

SPACER, BEAD

2X3-25394-00-00

Unavailable

12

FLANGE, SPACER

146-25115-00-00

$6.99

13

SPACER

90560-15313-00

$46.99

14

BEARING(3DL)

93306-20226-00

$38.99

15

COLLAR

90387-15714-00

Unavailable

16

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

17

SPRING (5T9)

90506-17328-00

Unavailable

18

PLATE, BRAKE SHOE

2X3-25321-00-98

Unavailable

19

CAMSHAFT

2RH-25351-00-00

Unavailable

20

LEVER, CAMSHAFT (2X3-25355-00)

2X3-25355-01-00

Unavailable

21

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

O-RING (498)

93210-29282-00

Unavailable

24

COVER, PLATE

2X3-25327-00-00

Unavailable

25

COLLAR

90387-15658-00

Unavailable

26

PULLER, CHAIN 1

2K6-25388-00-00

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

BOLT

90101-08060-00

Unavailable

29

BUSH, SOLID

90381-15029-00

Unavailable

30

AXLE, WHEEL

2K6-25381-00-00

Unavailable

31

PIN, COTTER

91490-30030-00

Unavailable

32

TENSION BAR SET (2X3-25371-02)

2X3-25000-80-00

Unavailable

33

OIL SEAL

93104-12003-00

Unavailable

34

BOLT, WITH HOLE

90102-08034-00

Unavailable

35

PIN, COTTER

91490-20025-00

Unavailable

36

COLLAR

90387-08699-00

Unavailable

37

NUT, U

95617-08100-00

Unavailable

38

SPROCKET, DRIVEN 44T

(1G8-25444-00-00)

Unavailable

38

SPROCKET, DRIVEN 46T (SPECIAL XX ALUMINUM) (46T)

1G8-25446-01-XX

Unavailable

38

SPROCKET, DRIVEN 48T (SPECIAL XX ALUMINUM) (48T)

1G8-25448-00-XX

Unavailable

38

SPROCKET, DRIVEN 50T

(1G8-25450-00-XX)

Unavailable

38

SPROCKET, DRIVEN 38T

(1J4-25438-00-XX)

Unavailable

38

SPROCKET, DRIVEN 40T

(1J4-25440-01-XX)

Unavailable

38

SPROCKET, DRIVEN 42T

(1J4-25442-00-XX)

Unavailable

38

SPROCKET, DRIVEN 49T (1W1-25451-00)

1W1-25449-00-XX

Unavailable

38

SPROCKET, DRIVEN 51T

(1W1-25451-00-XX)

Unavailable

38

SPROCKET, DRIVEN 53T

(1W1-25453-00-XX)

Unavailable

38

SPROCKET, DRIVN 55T

(1W1-25455-00-XX)

Unavailable

39

WASHER, SPECIAL.

1G8-25412-00-00

Unavailable

40

BOLT, STUD (537 HUB)

90116-10221-00

Unavailable

41

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

42

BEARING

93306-30212-00

Unavailable

43

SEAL,OIL

93106-26005-00

Unavailable

44

COVER, HUB DUST

431-25367-00-00

Unavailable

45

COLLAR

90387-15791-00

Unavailable

46

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

47

CHAIN 520DS-103L (DID520DS-102L)

9Y585-20101-00

Unavailable

48

JOINT, CHAIN

94681-68001-00

Unavailable

49

COLLAR (2X3)

90387-08725-00

Unavailable
