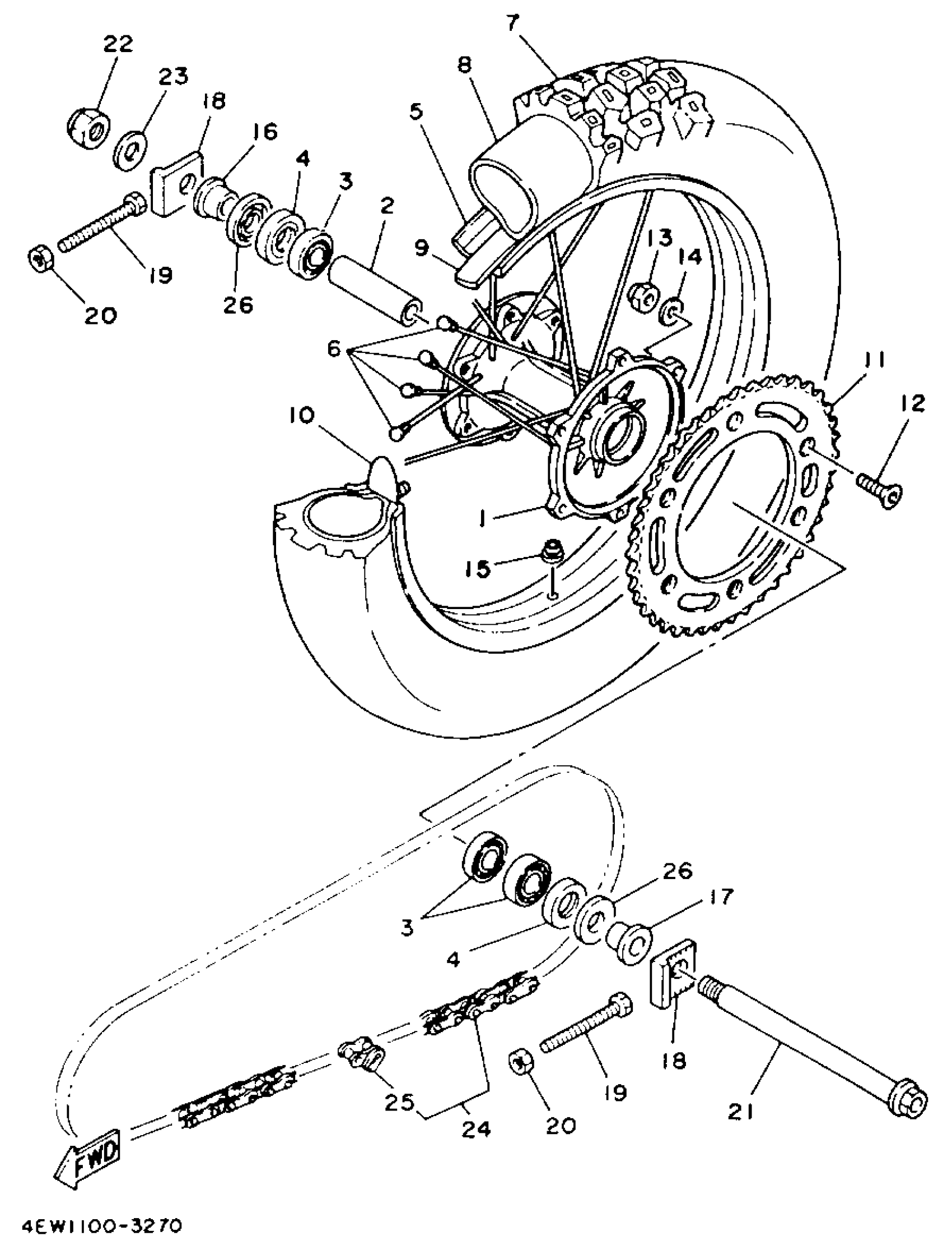

Yamaha YZ125E (YZ125E_F_G) 1978 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

4EW-25311-00-00

Unavailable

2

SPACER(1LX)

90560-20278-00

$29.99

3

BEARING(8AB)

93306-00444-00

$41.99

4

OIL SEAL(39X)

93106-28023-00

$12.49

5

RIM (1.85-19)

94418-19485-00

Unavailable

6

SPOKE SET, REAR

3JD-25304-00-00

Unavailable

7

100/90-19 DUN

94110-1900X-00

Unavailable

8

TUBE(42X)

94210-19224-00

$33.99

9

BAND, RIM

94327-19111-00

$14.99

10

SPACER, BEAD

2X3-25394-00-00

Unavailable

11

INACTIVE PART NUMBER

39W-25452-01-00

Unavailable

11

SPROCKET, DRIVEN 44T

3R4-25444-01-XX

Unavailable

11

SPROCKET, DRIVEN (45T) (39W-25445-01-00)

3R4-25445-01-XX

Unavailable

11

SPROCKET, DRIVEN 46T

3R4-25446-01-XX

Unavailable

11

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

11

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

12

BOLT(3RB)

90109-081G1-00

Unavailable

13

NUT, U

95617-08100-00

Unavailable

14

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

15

GROMMET (397)

90480-10068-00

Unavailable

16

COLLAR

90387-2000B-00

Unavailable

17

COLLAR

90387-2000C-00

Unavailable

18

PULLER, CHAIN 1

3SP-25388-00-00

Unavailable

19

BOLT

90101-08060-00

Unavailable

20

NUT, FLANGE

95704-08500-00

Unavailable

21

AXLE, WHEEL

3JD-25381-01-00

Unavailable

22

NUT, SELF-LOCKING

90185-18009-00

Unavailable

23

WASHER(64J)

92995-18600-00

Unavailable

24

CHAIN

9Y581-92115-00

Unavailable

25

JOINT, CHAIN

94681-68001-00

Unavailable

26

COVER, HUB DUST

4V4-25367-00-00

Unavailable
