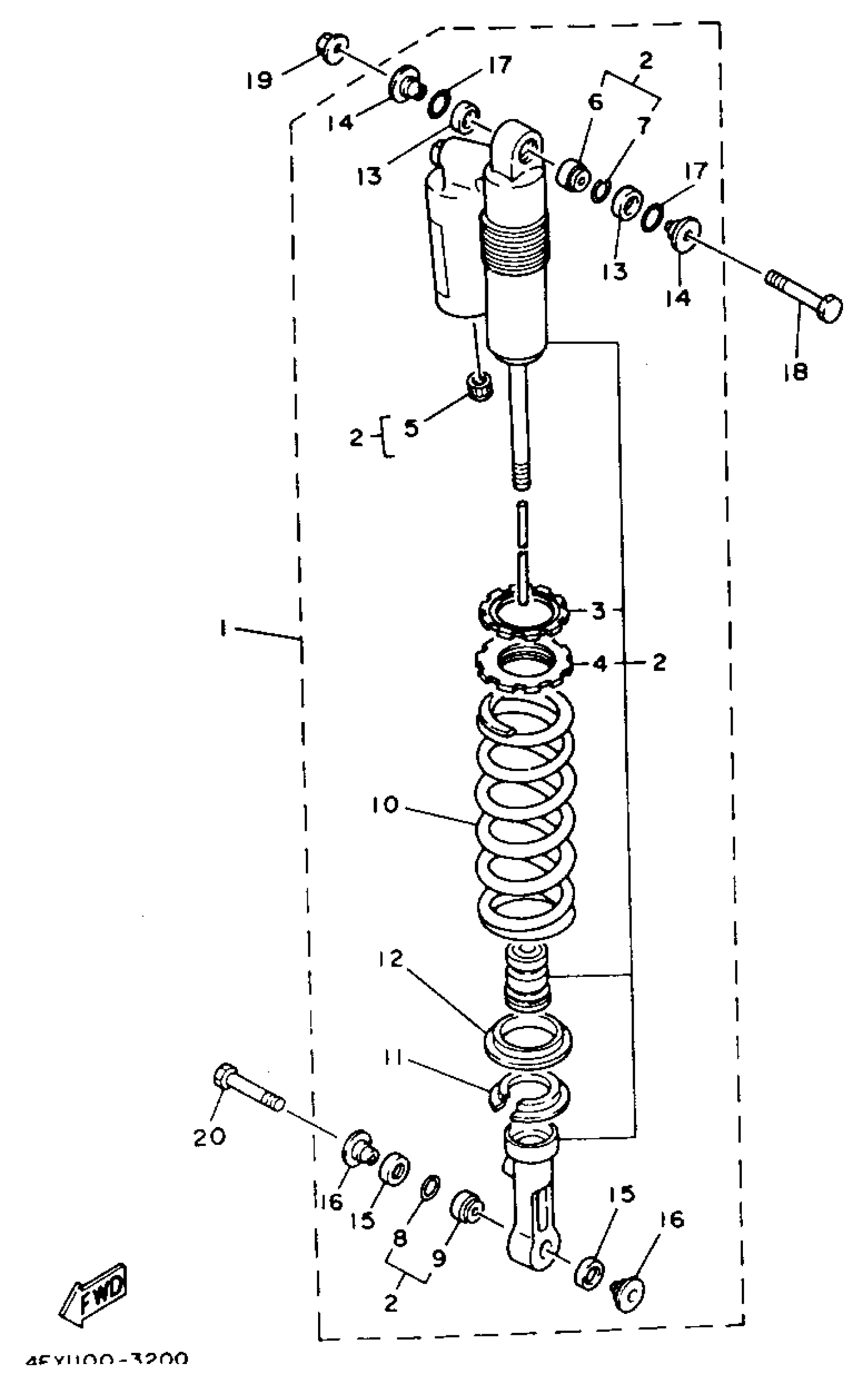

Yamaha YZ125E (YZ125E_F_G) 1978 REAR SHOCKS Diagram

SHK/ABS ASY,REAR

4EX-22210-30-00

Unavailable

DAMPER SUB ASY

4EW-22201-30-00

Unavailable

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

.. CAP, AIR VALVE

24M-23184-00-00

Unavailable

.. BUSH, REAR SHOCK ABSORBER

3JD-22216-00-00

Unavailable

.. RING, STOP

43M-22274-00-00

Unavailable

.. CIRCLIP

3Y6-23183-00-00

Unavailable

BEARING(3XP)

93399-99935-00

$79.99

SPRING (K=4.8)

3XJ-22212-11-00

Unavailable

GUIDE, SPRING 1

3JD-22214-00-00

$28.99

. GUIDE, SPRING 2

3JD-22224-00-00

Unavailable

SEAL, DUST

3JD-22475-00-00

$24.99

. COLLAR, DISTANCE

3XJ-22253-00-00

Unavailable

SEAL, DUST

3JE-22475-00-00

$13.49

. COLLAR, DISTANCE

4EW-22253-00-00

Unavailable

SEAL, RING

4EW-22474-00-00

Unavailable

BOLT 1

3SP-22241-00-00

Unavailable

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

BOLT, WASHER BASED(3XJ)

90105-10614-00

Unavailable
