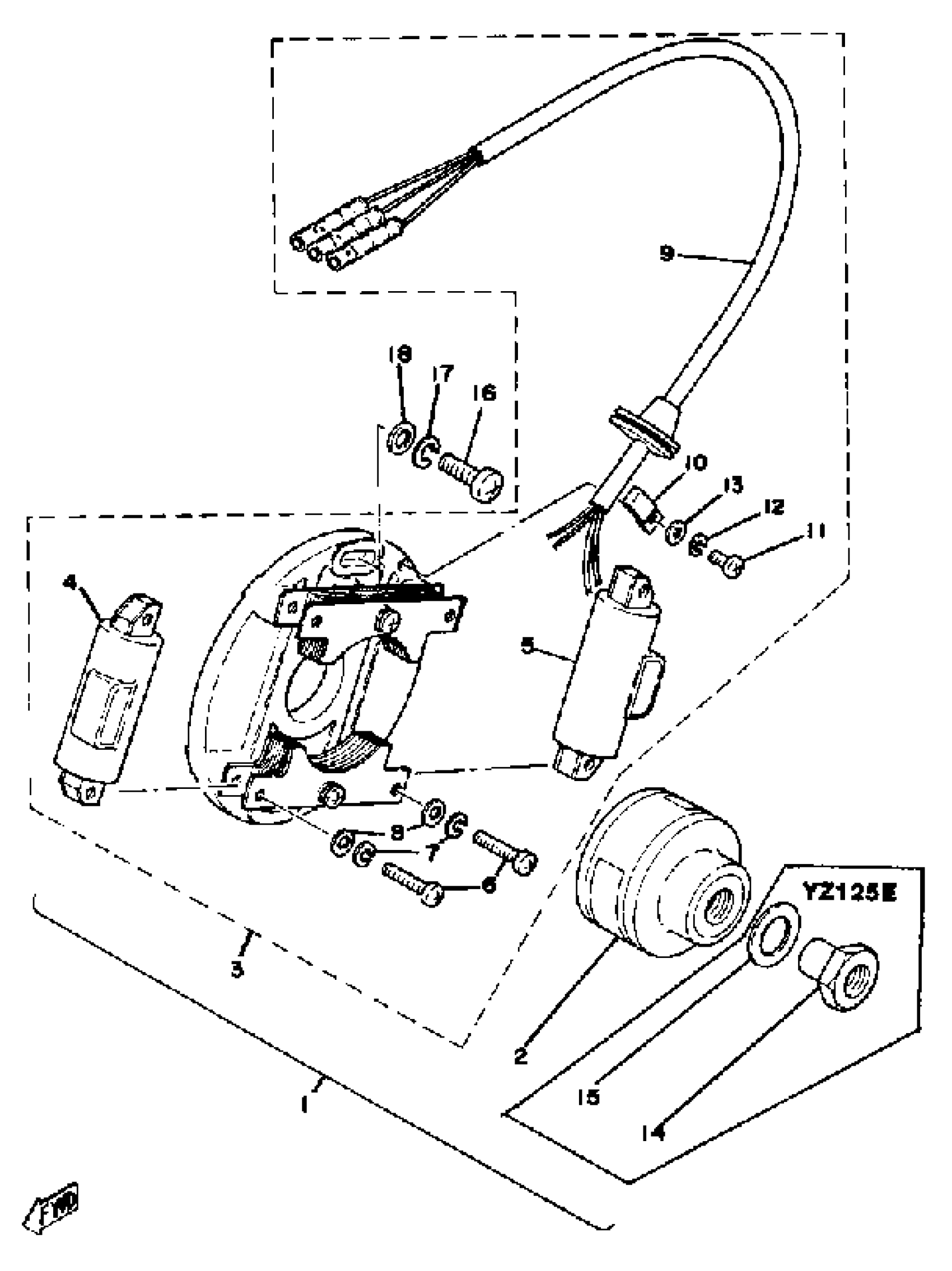

Yamaha YZ125E (YZ125E_F_G) 1978 GENERATOR YZ125E - F Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

2X6-85500-11-00

Unavailable

1

CDI MAGNETO ASSEMBLY

3V3-85500-10-00

Unavailable

2

ROTOR ASSEMBLY

(1G8-85550-10-00)

Unavailable

2

ROTOR ASSEMBLY

(2X6-85550-10-00)

Unavailable

3

. STATOR ASSEMBLY

2X6-85510-11-00

Unavailable

3

STATOR ASSEMBLY

(565-85510-10-00)

Unavailable

4

COIL,CHARGE

3R4-85520-11-00

Unavailable

4

.. COIL, CHARGE 1

565-85566-10-00

Unavailable

5

.. COIL, CHARGE 2

2X6-85567-10-00

Unavailable

5

.. COIL, CHARGE 2

565-85567-10-00

Unavailable

6

SCREW, PAN HEAD

98517-05030-00

$10.49

6

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

9

.. LEAD WIRE ASSEMBLY

2X6-85515-10-00

Unavailable

9

.. LEAD WIRE ASSEMBLY

565-85515-10-00

Unavailable

10

. CLAMP

109-81328-11-00

Unavailable

11

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

13

WASHER, PLAIN (646)

92990-04600-00

Unavailable

14

. NUT, ROTOR

322-85553-10-00

Unavailable

15

. WASHER, ROTOR

322-85554-10-00

Unavailable

16

SCREW PAN HEAD

98580-06020-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLATE

90201-06045-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable
