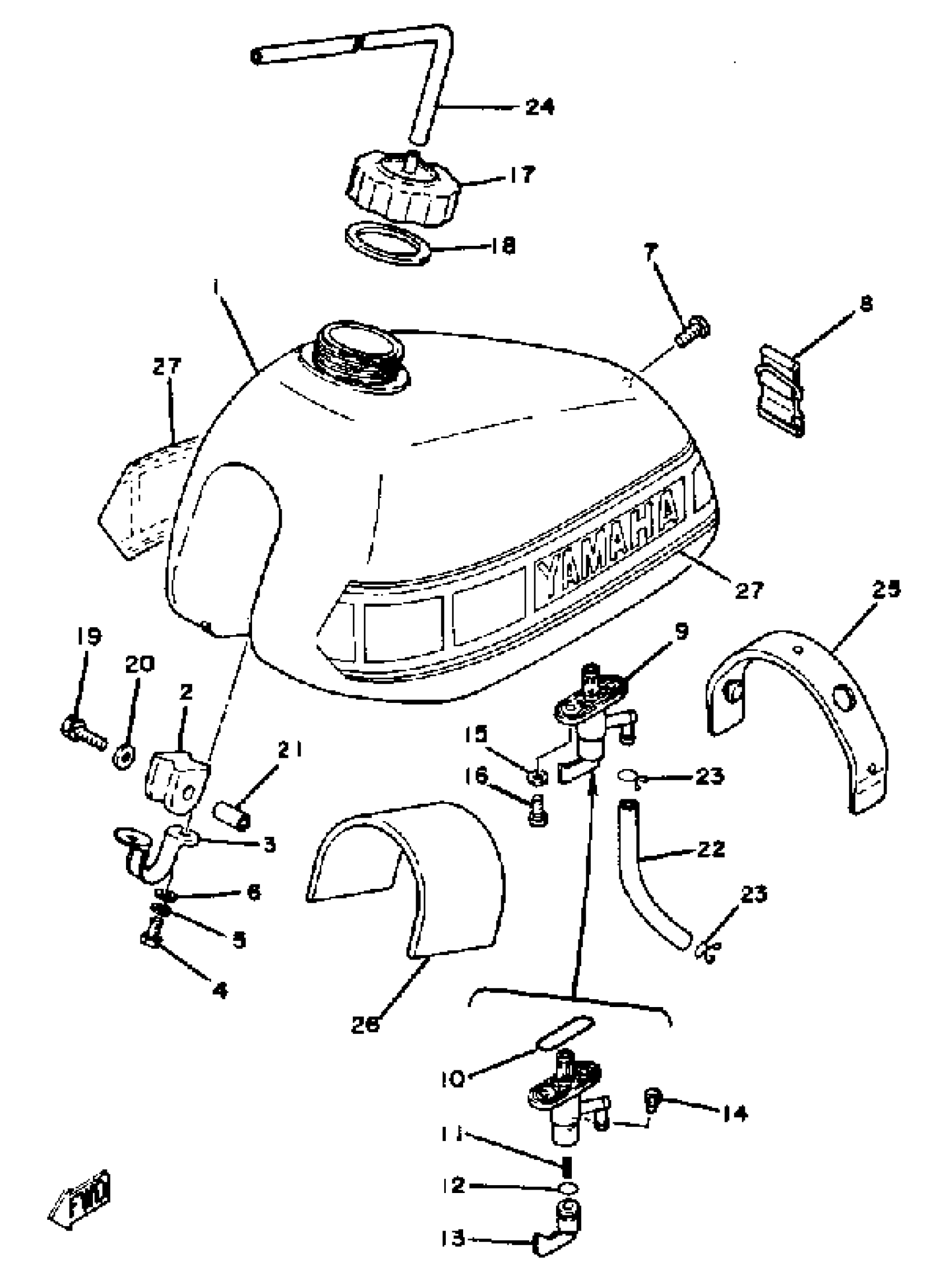

Yamaha YZ125E (YZ125E_F_G) 1978 FUEL TANK YZ125G Diagram

#

Description
Price

1

FUEL TANK

(3R3-24110-00-00)

Unavailable

2

DAMPER, TANK LOCATING 2

1W1-24182-01-00

$32.99

3

HOLDER, DAMPER

1W1-24144-01-00

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

SCREW(3JM)

90149-06306-00

$8.49

8

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

9

FUEL COCK ASSY

2K5-24500-00-00

$86.99

10

GASKET, BODY

214-24512-00-00

$30.99

11

. SPRING

1A0-24529-01-00

Unavailable

12

O-RING

1A0-24512-00-00

Unavailable

13

. LEVER, COCK

1A0-24524-01-00

Unavailable

14

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

SCREW 256241430000

90149-06011-00

Unavailable

17

BODY, CAP

1W1-24611-00-00

Unavailable

18

PACKING, CAP

1W1-24612-00-00

Unavailable

19

BOLT, WITH WASHER

90119-06022-00

Unavailable

20

WASHER, PLATE

90201-06747-00

Unavailable

21

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

22

HOSE

90445-11491-00

Unavailable

23

CLIP

90467-100A1-00

Unavailable

24

HOSE (L420)

90445-092K1-00

Unavailable

25

DAMPER, LOCATING 1

3R4-24181-00-00

Unavailable

26

DAMPER, LOCATING 3

1W1-24183-00-00

Unavailable

27

GRAPHIC SET

3R3-24240-20-00

Unavailable
