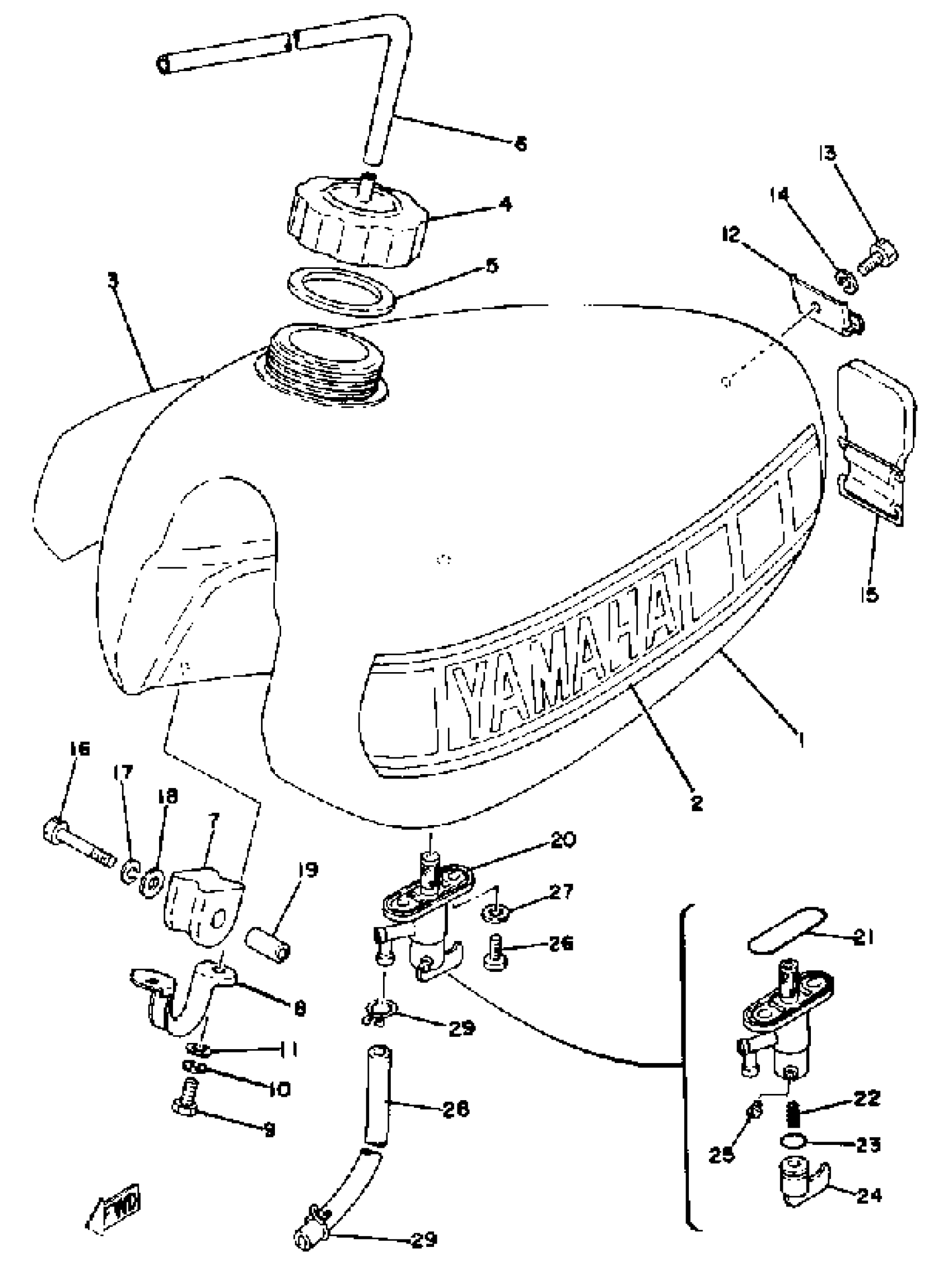

Yamaha YZ125E (YZ125E_F_G) 1978 FUEL TANK YZ125E - F Diagram

FUEL TANK

(1W1-24110-00-00)

Unavailable

FUEL TANK

(2X3-24110-00-00)

Unavailable

GRAPHIC, FUEL TNK 1

1W1-24244-00-00

Unavailable

GRAPHIC, FUEL TNK 1

2X3-24244-20-00

Unavailable

GRAPHIC, FUEL TNK 2

1W1-24245-00-00

Unavailable

GRAPHIC, FUEL TNK 2

2X3-24245-20-00

Unavailable

BODY, CAP

1W1-24611-00-00

Unavailable

PACKING, CAP

1W1-24612-00-00

$9.99

HOSE (L545)

90445-09361-00

Unavailable

DAMPER, TANK LOCATING 2

1W1-24182-01-00

$32.99

HOLDER, DAMPER

1W1-24144-01-00

Unavailable

BOLT (661)

97013-06012-00

$5.60

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

BRACKET, FUEL TNK 2

1W1-24192-00-00

Unavailable

BOLT (661)

97013-06012-00

$5.60

WASHER, SPRING

92995-06100-00

Unavailable

BAND, TNK FITTING 1

1W1-24173-00-00

Unavailable

BOLT(3RV)

97014-06035-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLATE

90201-06747-00

Unavailable

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

FUEL COCK ASSY

2K5-24500-00-00

Unavailable

GASKET, BODY

214-24512-00-00

Unavailable

. SPRING

1A0-24529-01-00

Unavailable

O-RING

1A0-24512-00-00

Unavailable

. LEVER, COCK

1A0-24524-01-00

Unavailable

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

HOSE (L370)

90445-112E1-00

Unavailable

HOSE

90445-11491-00

Unavailable

CLIP

90467-100A1-00

Unavailable
