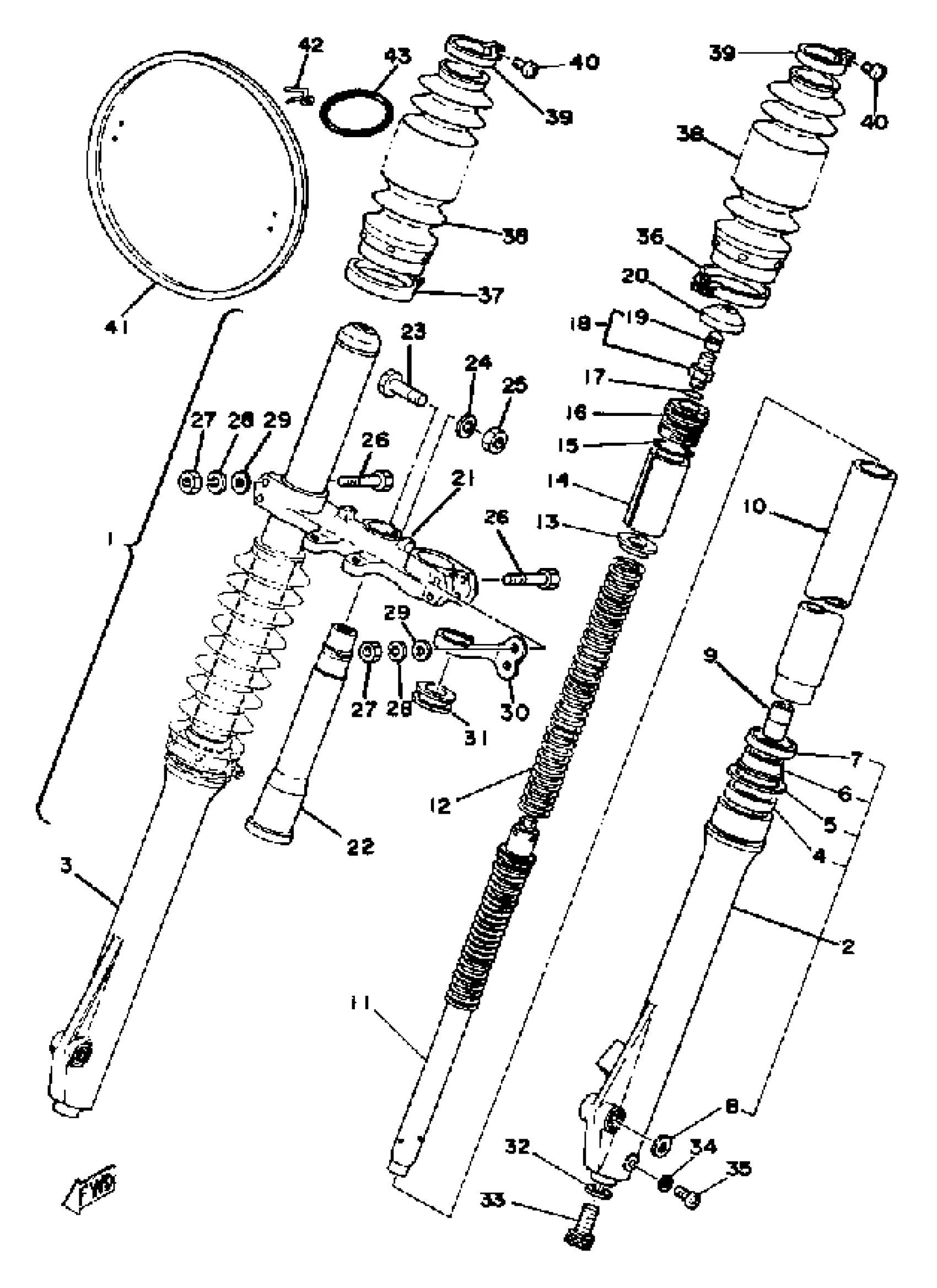

Yamaha YZ125E (YZ125E_F_G) 1978 FRONT FORK YZ125E Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(2K6-23101-L0-00)

Unavailable

2

TUBE, OUTER 1

(2K6-23126-L0-00)

Unavailable

3

TUBE, OUTER 2

(2K6-23136-L0-00)

Unavailable

4

OIL SEAL

48Y-23145-00-00

$30.99

5

.. CLIP, OIL SEAL

1W1-23156-L0-00

Unavailable

6

SEAL, DUST

1G8-23144-L1-00

$25.99

7

. COVER, DUST SEAL

3R8-23148-L0-00

Unavailable

7

. SEAL, DUST

509-23144-L0-00

Unavailable

7

.. COVER, DUST SEAL

99999-01510-00

Unavailable

8

.. CAP, FRONT FORK

1W1-23168-L0-00

Unavailable

9

TAPER SPINDLE

1W1-23173-L0-00

$31.99

10

INNER TUBE 1

(2K6-23110-L0-00)

Unavailable

11

CYLINDER, FRTFRK

(1W1-23170-L0-00)

Unavailable

12

SPRING, FRONT FORK

(1W1-23141-10-00)

Unavailable

12

SPRING, FRONT FORK

(1W1-23141-20-00)

Unavailable

12

SPRING, FRONT FORK

(1W1-23141-L0-00)

Unavailable

13

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

14

SPACER

(1W1-23118-L0-00)

Unavailable

14

SPACER

4V5-23118-L1-00

Unavailable

15

O-RING

1W1-23114-L0-00

Unavailable

16

. BOLT, CAP

1W1-23111-L0-00

Unavailable

17

. O-RING

509-23163-L0-00

Unavailable

18

. AIR VALVE

509-23190-L0-00

Unavailable

19

CAP, AIR VALVE

509-23184-L0-00

Unavailable

20

. COVER, VALVE

1W1-23185-L0-00

Unavailable

21

BRACKET, LOWER

(1W1-23345-L0-33)

Unavailable

22

SHAFT, STEERING

(1W1-23341-L0-00)

Unavailable

23

BOLT 2

(1W1-23356-L0-00)

Unavailable

24

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

25

NUT

(322-23357-00-00)

Unavailable

26

BOLT (1E6)

90101-08340-00

Unavailable

27

NUT(6L2)

95333-08600-00

Unavailable

28

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

29

.. WASHER, PLATE

92990-08600-00

Unavailable

30

. HOLDER, CABLE

1W1-23317-01-00

Unavailable

31

GUIDE, WIRE

1W1-23389-00-00

Unavailable

32

GASKET

509-23158-L0-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

34

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

34

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

36

HOLDER, CABLE 1

1W1-23318-L0-00

Unavailable

37

BAND

509-23489-L0-00

Unavailable

38

BOOT, FRONT FORK

2K6-23191-L0-00

Unavailable

39

BAND, BOOT

341-92090-60-00

Unavailable

40

SCREW

509-23194-L0-00

Unavailable

41

. BAND

2X4-23489-00-00

Unavailable

41

. PLATE, NUMBER

3R0-23485-00-00

Unavailable

41

HOSE

(90446-09158-00)

Unavailable

41

PLATE NUMBER

(99999-01016-00)

Unavailable

42

STAY, PLATE

431-23486-02-00

Unavailable

43

O-RING (3.0-69.0)

93210-69355-00

Unavailable
