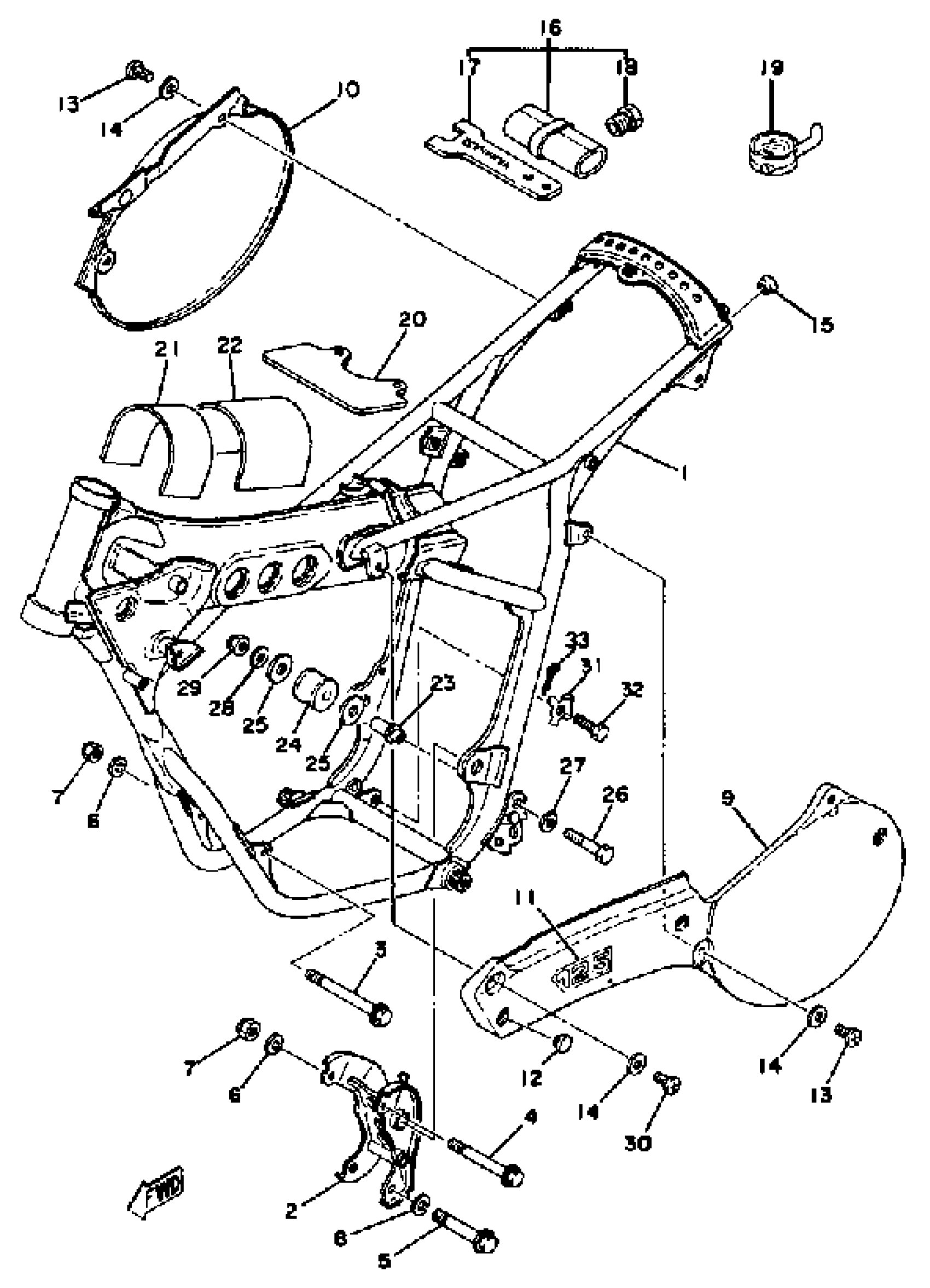

Yamaha YZ125E (YZ125E_F_G) 1978 FRAME - SIDE COVER YZ125F Diagram

#

Description
Price

1

FRAME

(2X3-21110-01-33)

Unavailable

2

ENGINE BRKT

(2X3-21410-00-00)

Unavailable

3

BOLT (1W1)

90105-08099-00

$5.60

4

BOLT,WASHER BASED

90105-08100-00

Unavailable

5

BOLT

90105-10037-00

Unavailable

6

WASHER, PLAIN

92990-08200-00

Unavailable

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

8

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

9

COVER, SIDE 1

2X3-21711-00-98

Unavailable

10

COVER, SIDE 2

(2X3-21721-00-98)

Unavailable

11

EMBLEM

2X3-21737-00-00

Unavailable

12

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

13

SCREW, BIND(J45)

98980-06012-00

$8.49

14

WASHER, PLATE

90201-06380-00

$0.60

15

PLUG (2K5)

90339-13005-00

$4.29

16

TOOL KIT

(5X5-28100-00-00)

Unavailable

17

SPANNER, SPECIAL

10V-28135-00-00

Unavailable

18

PULLER, ROTOR

(2K7-85555-00-00)

Unavailable

19

GAUGE, AIR

2X4-2811A-01-00

Unavailable

20

DAMPER, LOCATING 1

(1W1-24181-00-00)

Unavailable

21

DAMPER, LOCATING 3

1W1-24183-00-00

Unavailable

22

DAMPER, LOCATING 3

(2X4-24183-00-00)

Unavailable

23

SHAFT

2K7-2148A-00-00

Unavailable

24

TENSIONER

2K6-22178-00-00

Unavailable

25

WASHER, PLATE

90201-13013-00

Unavailable

26

BOLT, HEXAGON

97013-08050-00

Unavailable

27

WASHER, PLAIN

92990-08200-00

Unavailable

28

.. WASHER, PLATE

92990-08600-00

Unavailable

29

NUT, U

95617-08100-00

Unavailable

30

SCREW, BIND (705)

98980-06016-00

Unavailable

31

WASHER, LOCK

90215-08154-00

Unavailable

32

BOLT

90101-08371-00

Unavailable

33

PIN, COTTER

91490-20025-00

Unavailable
