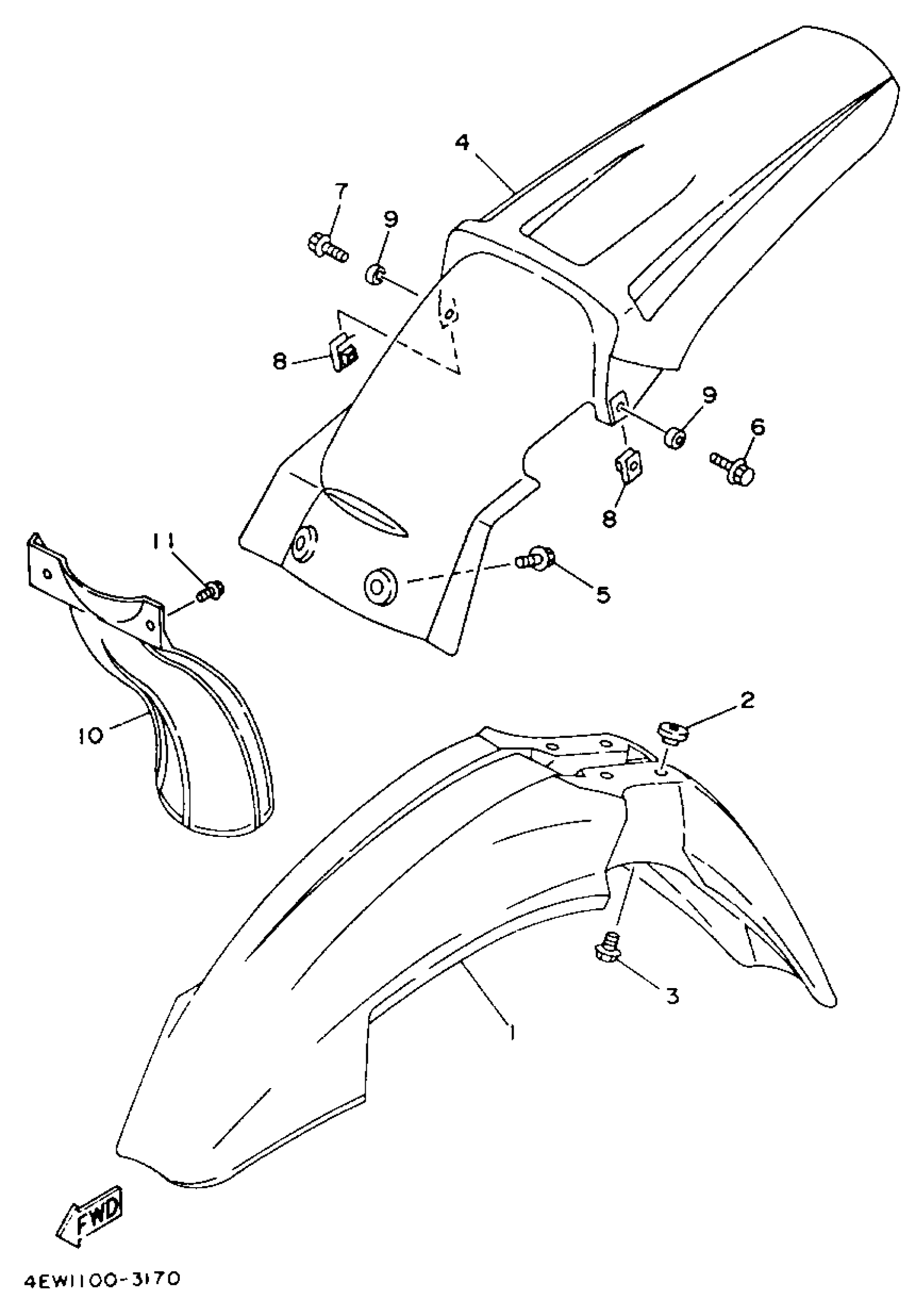

Yamaha YZ125E (YZ125E_F_G) 1978 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4DA-21511-00-00

Unavailable

2

COLLAR

3JD-21748-00-00

$4.01

3

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

4

FENDER, REAR

4EW-21611-00-00

Unavailable

5

BOLT, WITH WASHER(3JD)

90119-06185-00

$7.00

6

BOLT, FLANGE(2UJ)

95024-06016-00

$6.22

7

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

8

NUT, SPRING (26H)

90183-06023-00

$6.94

9

COLLAR(4EW)

90387-0701A-00

$6.22

10

GUARD, FLAP

39X-21642-00-00

$73.55

11

BOLT, WITH WASHER(3JD)

90119-06185-00

$7.00
