Description

Price

1

FENDER, FRONT

3R2-21511-01-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.60

3

BOLT(3DM)

97024-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER (3R8)

90209-06187-00

$8.49

6

FENDER, REAR

3R3-21611-01-00

Unavailable

7

WASHER, PLATE

90201-06380-00

$0.60

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

NUT(650)

95380-06700-00

$8.49

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

GUARD, MUD

(3R3-21629-00-00)

Unavailable

14

FLAP

1M1-21621-00-00

$16.49

15

. DAMPER

565-21746-00-00

Unavailable

16

WASHER, PLATE

90201-06380-00

$0.60

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

18

WASHER, SPRING

92995-06100-00

Unavailable

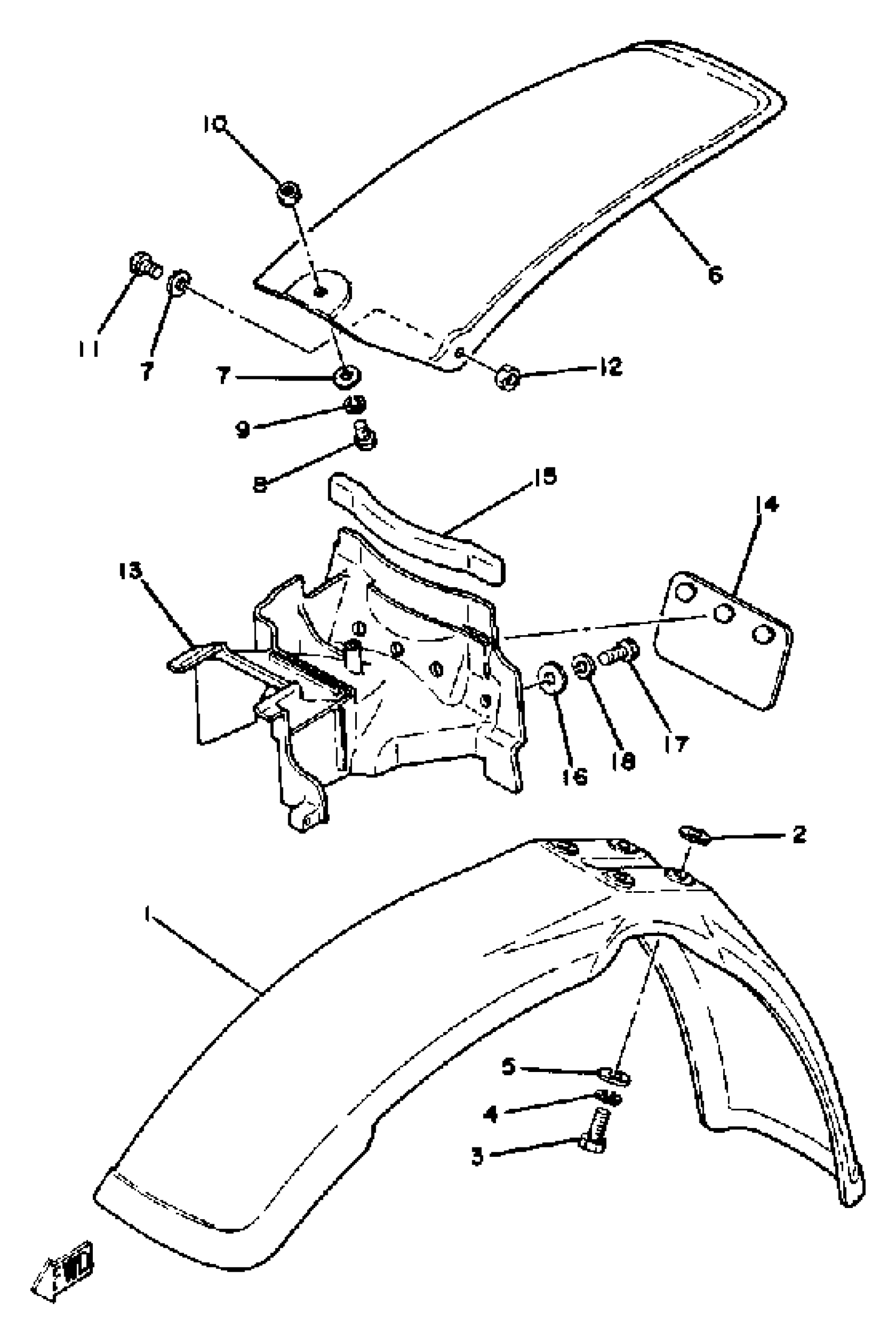

Yamaha YZ125E (YZ125E_F_G) 1978 FENDER YZ125G Diagram

FENDER, FRONT

WASHER, PLATE

BOLT(3DM)

WASHER, SPRING

WASHER (3R8)

FENDER, REAR

WASHER, PLATE

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

NUT(650)

BOLT, HEXAGON DEEP RECESS

NUT, SELF-LOCKING

GUARD, MUD

FLAP

. DAMPER

WASHER, PLATE

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING
