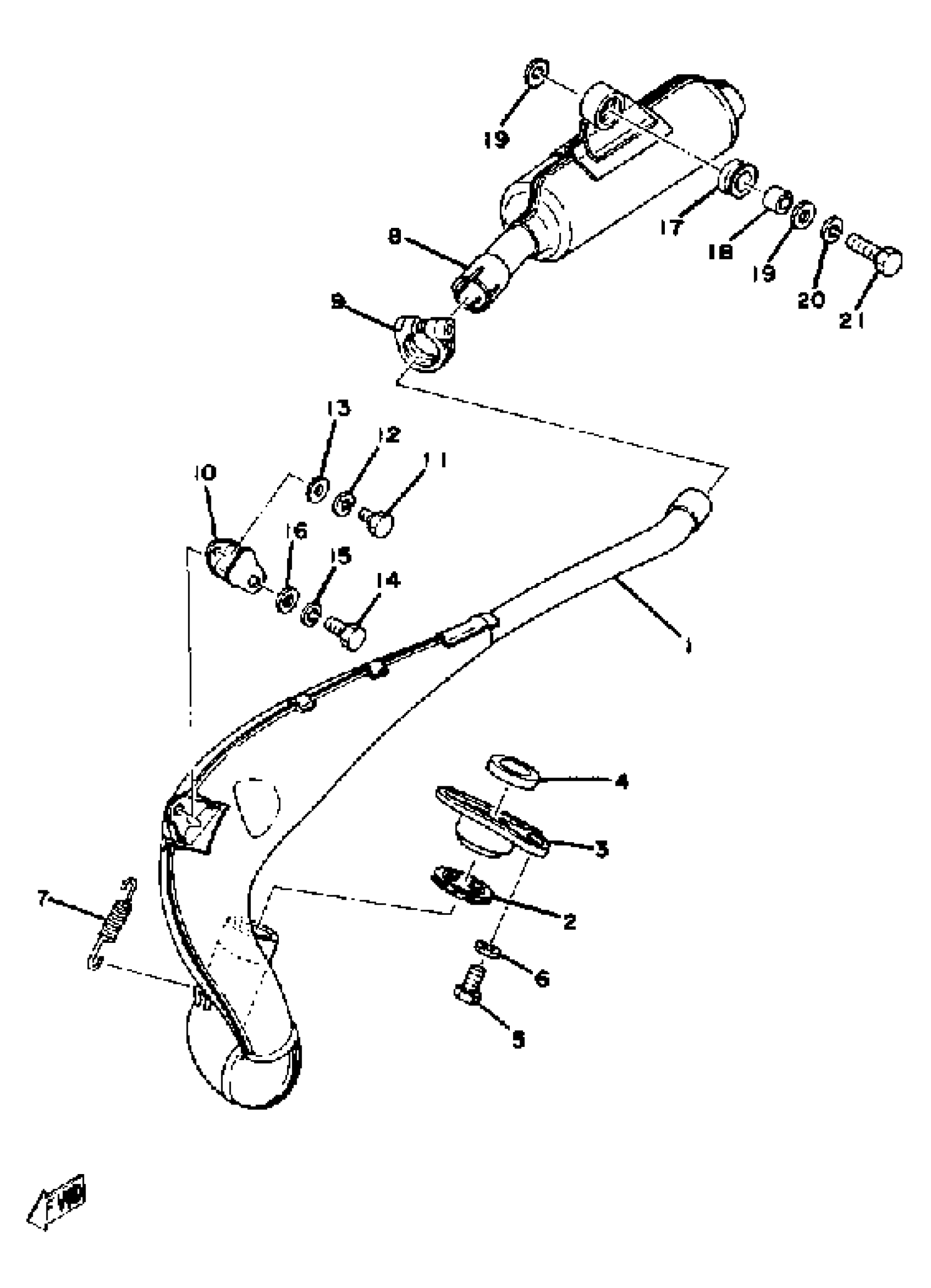

Yamaha YZ125E (YZ125E_F_G) 1978 EXHAUST YZ125E Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(2K6-14610-00-00)

Unavailable

2

GASKET

248-14623-10-00

$7.99

3

NUT, RING

2K5-14612-00-00

Unavailable

4

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

WASHER, SPRING

92995-06100-00

Unavailable

7

SPRING, TENSION (1W4)

90507-20030-00

$14.99

8

SILENCER, EXHAUST

1W1-14753-01-00

Unavailable

9

BAND, SILENCER

537-14788-00-00

Unavailable

10

STAY, MUFFLER 2

483-14781-03-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

BOLT, HEXAGON

97013-08020-00

$1.16

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

.. WASHER, PLATE

92990-08600-00

Unavailable

17

DAMPER

565-14747-00-00

Unavailable

18

COLLAR (437)

90387-08258-00

Unavailable

19

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

21

BOLT, HEXAGON

97013-08030-00

Unavailable
