CRANKSHAFT - PISTON YZ125E - F

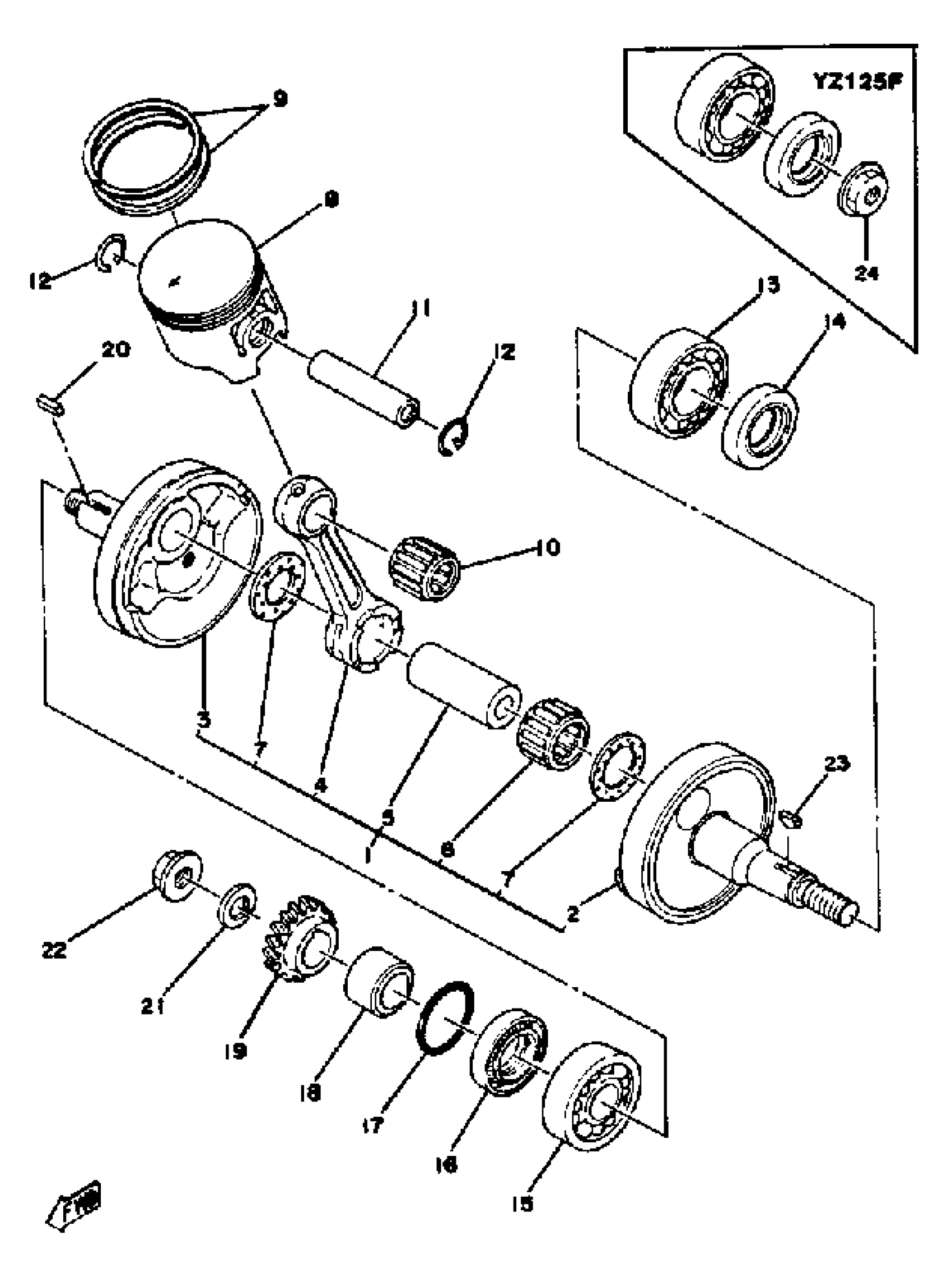

Yamaha YZ125E (YZ125E_F_G) 1978 CRANKSHAFT - PISTON YZ125E - F Diagram
#
1
CRANKSHAFT ASSEMBLY (1W1-11400-01)
2K5-11400-00-00
Unavailable
1
CRANKSHAFT ASSEMBLY
2W5-11400-00-00
Unavailable
2
CRANK (L.H)
1W1-11412-01-00
Unavailable
2
. CRANK 1
2W5-11412-00-00
Unavailable
3
CRANK (R.H)
1W1-11422-01-00
Unavailable
4
. ROD, CONNECTING
3R2-11651-01-00
Unavailable
6
BEARING (3R3)
93310-422H0-00
Unavailable
7
WASHER (29L)
90209-22248-00
Unavailable
8
PISTON KIT 1ST
(2K6-11630-10-00)
Unavailable
8
PISTON KIT 2ND
(2K6-11630-20-00)
Unavailable
8
PISTON KIT 4TH (4TH O.S.)
2K6-11630-40-00
Unavailable
8
PISTON STD (STD)
2K6-11631-00-97
Unavailable
8
PISTON STD (STD)
2K6-11631-00-97
Unavailable
8
PISTON 1 O/S 0.25 (56.25MM 1ST O.S.)
2K6-11635-00-00
Unavailable
8
PISTON 2 O/S 0.50 (56.50MM 2ND O.S.)
2K6-11636-00-00
Unavailable
8
PISTON 3 O/S 0.75 (3RD O.S.)
2K6-11637-00-00
Unavailable
8
PISTON 4 O/S 1.00 (57.00MM 4TH O.S.)
2K6-11638-00-00
Unavailable
8
PISTON KIT STD (STD)
2X3-11630-01-00
Unavailable
8
PISTON KIT 1ST
(2X3-11630-11-00)
Unavailable
8
PISTON STD (55.97MM STD)
2X3-11631-01-97
Unavailable
8
PISTON 1 O/S 0.25 (56.25MM 1ST O.S.)
2X3-11635-01-00
Unavailable
8
PISTON KIT 2ND (2ND O/S)
3R3-11630-20-00
Unavailable
8
PISTON KIT 3RD (3RD O/S)
3R3-11630-30-00
Unavailable
8
PISTON KIT 4TH (4TH O/S)
3R3-11630-40-00
Unavailable
8
PISTON 2 O/S 0.50 (2ND O/S 0.50MM)
3R3-11636-00-00
Unavailable
8
PISTON 3 O/S 0.75 (3RD O/S 0.75MM)
3R3-11637-00-00
Unavailable
8
PISTON 4 O/S 1.00 (4TH O/S 1.00MM)
3R3-11638-00-00
Unavailable
9
RING, PISTON STD (STD)
2K6-11611-00-00
Unavailable
9
RING, PISTON 1ST (1ST O/S)
2K6-11611-10-00
Unavailable
9
RING, PISTON 2ND (2ND O/S)
2K6-11611-20-00
Unavailable
9
RING, PISTON 3RD (3RD O/S)
2K6-11611-30-00
Unavailable
9
RING, PISTON 4TH (4TH O/S)
2K6-11611-40-00
Unavailable
9
PISTON RINGSET STD (STD)
3R3-11601-00-00
Unavailable
9
PISTON RINGSET 1ST (1ST O/S)
3R3-11601-10-00
Unavailable
9
PISTON RINGSET 2ND (2ND O/S)
3R3-11601-20-00
Unavailable
9
PISTON RINGSET 3RD (3RD O/S)
3R3-11601-30-00
Unavailable
9
PISTON RINGSET 4TH (4TH O/S)
3R3-11601-40-00
Unavailable
10
BEARING, NEEDLE (24X)
93310-216L2-00
Unavailable
11
PIN, PISTON
137-11633-10-00
Unavailable
12
CIRCLIP (137-11634-00)
93450-17025-00
Unavailable
13
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
14
OIL SEAL (5V6)
93103-25125-00
Unavailable
15
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
16
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
17
O-RING(3KX)
93210-180A6-00
Unavailable
18
COLLAR, DISTANCE (525)
90387-20488-00
Unavailable
19
GEAR, PRI DRIVE
1W1-16111-00-00
Unavailable
20
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
21
WASHER, SPRING (1W1)
90204-12007-00
Unavailable
22
NUT(1EE)
90179-12659-00
Unavailable
23
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
24
NUT, SPECIAL SHAPE
90179-10257-00
Unavailable
