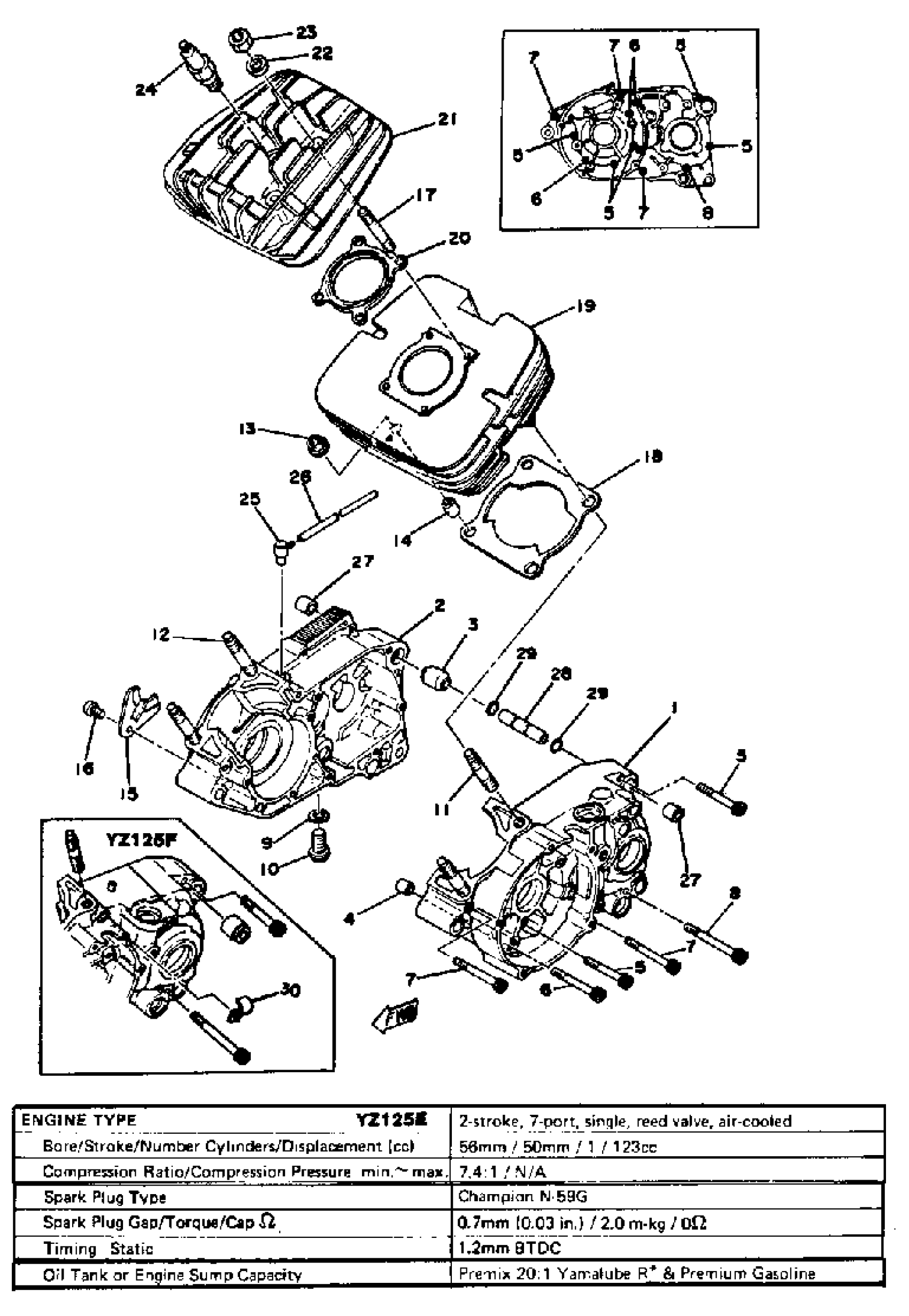

Yamaha YZ125E (YZ125E_F_G) 1978 CRANKCASE - CYLINDER YZ125E - F Diagram

#

Description
Price

1

CRANKCASE 1 (1W1-15111-00)

1W1-15111-02-00

Unavailable

1

CRANKCASE 1

2W5-15111-00-00

Unavailable

2

CRANKCASE 2 (1W1-15121-01)

1W1-15121-02-00

Unavailable

3

PIN, DOWEL

99530-20020-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT,SOCKET

91317-06050-00

$3.88

6

BOLT,SOCKET

91317-06060-00

$3.76

7

BOLT, SOCKET

91317-06070-00

$4.99

8

BOLT, SOCKET

91317-06075-00

$5.60

9

GASKET (3JD1)

90430-12207-00

$7.99

10

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

11

BOLT, STUD (2K5)

90116-10278-00

$3.18

12

BOLT, STUD (2K5)

90116-10279-00

$3.18

13

NUT, CROWN(2GG)

90176-10075-00

$8.49

14

PIN, DOWEL

99530-14016-00

$3.80

15

HOLDER (R.H)

304-15128-00-00

Unavailable

16

SCREW, PAN

98507-08010-00

Unavailable

17

BOLT STUD 363111790000

90116-08104-00

Unavailable

17

BOLT, STUD(3XV)

90116-08564-00

Unavailable

18

GASKET, CYLINDER

18G-11351-02-00

Unavailable

19

CYLINDER 1

2K6-11311-00-00

Unavailable

19

CYLINDER 1

2X3-11311-00-00

Unavailable

20

GASKET, CYLINDER HEAD

2A6-11181-00-00

Unavailable

20

GASKET, CYLINDER HEAD 1

2X3-11181-00-00

Unavailable

21

HEAD, CYLINDER 1

(2K6-11111-00-00)

Unavailable

21

HEAD, CYLINDER 1

2X3-11111-00-00

Unavailable

22

WASHER, PLATE (397)

90201-08100-00

Unavailable

23

NUT(6L2)

95333-08600-00

Unavailable

24

BR10EIX NGK SPLUG 4PK

BR1-0EIX0-00-00

Unavailable

25

BREATHER

5UG-15371-00-00

Unavailable

25

BREATHER

583-15371-00-00

Unavailable

26

HOSE (L570)

90445-07MF1-00

Unavailable

26

HOSE (L1050)

90445-072G8-00

Unavailable

27

DAMPER

90388-08003-00

Unavailable

28

SPACER, ENGINE MOUNT

401-15317-00-00

Unavailable

29

O-RING (P95)

93210-11073-00

Unavailable

30

CLAMP 363154850100

90462-05005-00

Unavailable
