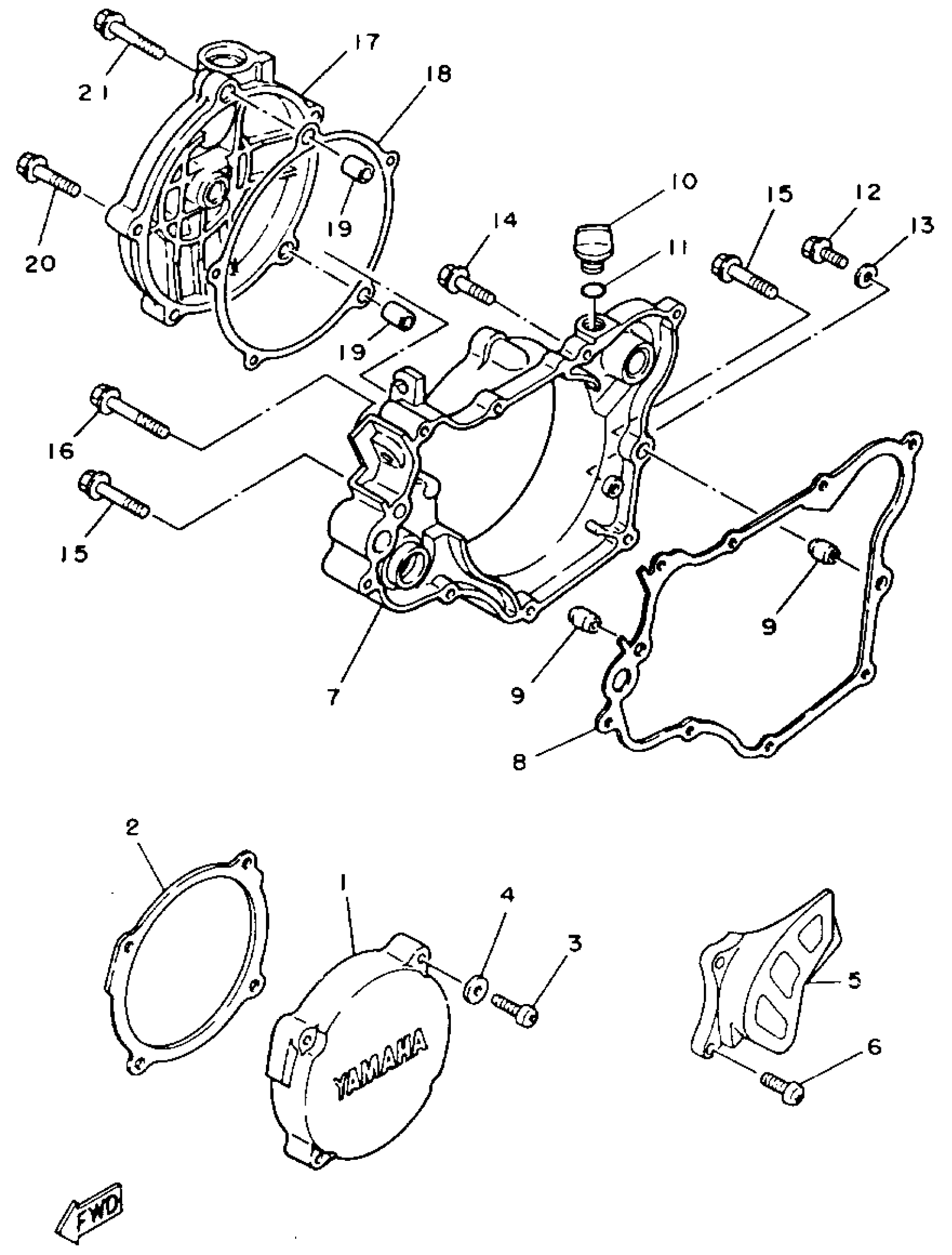

Yamaha YZ125E (YZ125E_F_G) 1978 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4DB-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4DB-15451-00-00

Unavailable

3

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

4

WASHER, PLAIN (646)

92990-06600-00

$1.84

5

COVER, CRANKCASE 2

4EX-15421-00-00

Unavailable

6

SCREW, PAN HEAD

98580-06016-00

$2.88

7

COVER, CRANKCASE 3

3JD-15431-00-00

Unavailable

8

GASKET, CRANKCASE COVER 3

1LX-15462-10-00

$22.79

9

PIN, DOWEL(3VD)

99530-10114-00

$2.13

10

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

11

O-RING (26H)

93210-14579-00

$5.05

12

BOLT, FLANGE(3BM)

95024-06008-00

$7.45

13

GASKET 256113960000

90430-06014-00

Unavailable

14

BOLT, FLANGE(4KG)

95024-06025-00

$2.45

15

BOLT, FLANGE(4BH)

95024-06035-00

$6.43

16

BOLT, FLANGE(4KM)

95024-06040-00

Unavailable

17

COVER, GENERATOR

4EX-15415-00-00

Unavailable

18

GASKET, CARBURETOR COVER

3JD-15463-10-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

$2.13

20

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

21

BOLT, FLANGE(4KM)

95024-06040-00

Unavailable
