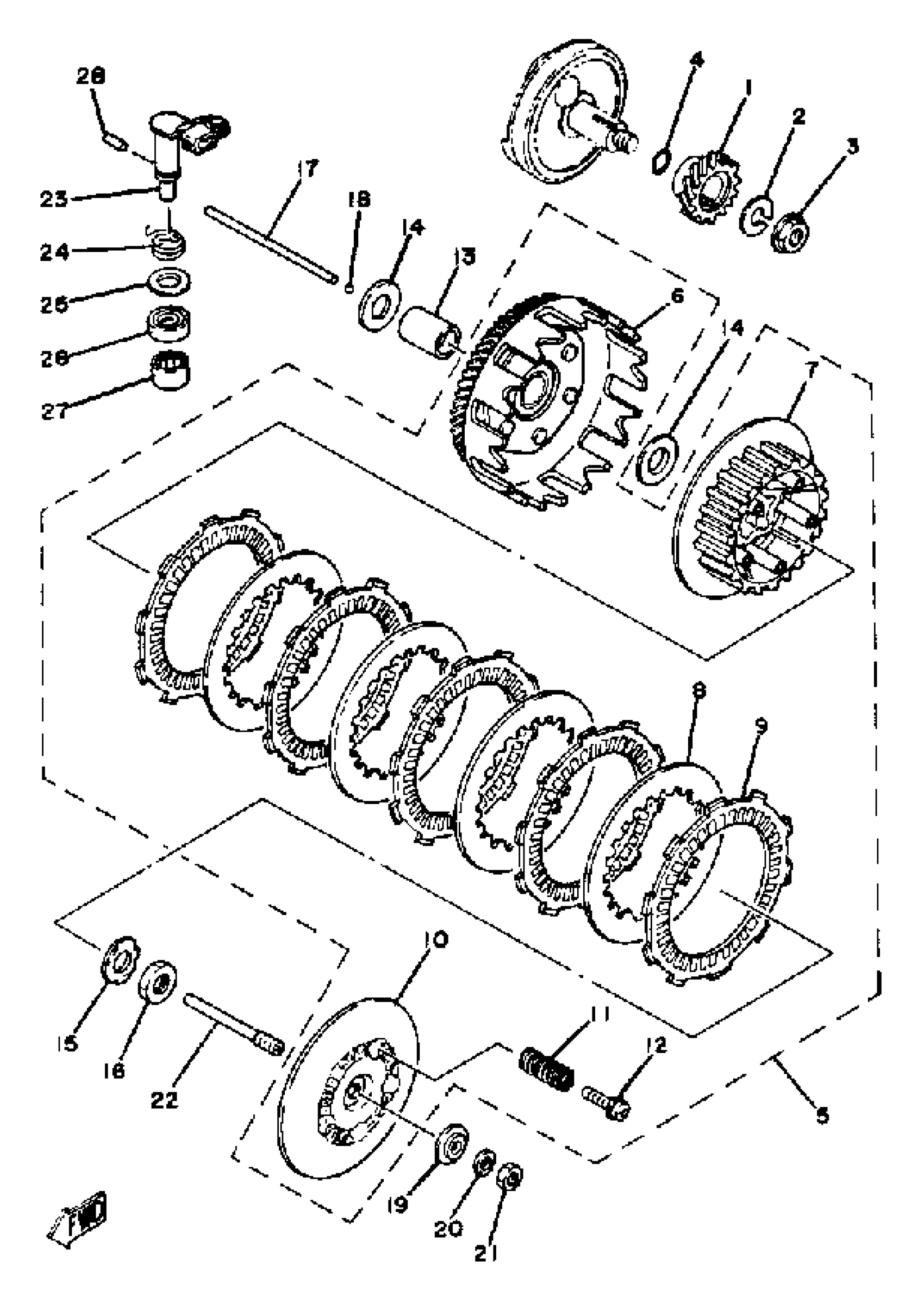

Yamaha YZ125E (YZ125E_F_G) 1978 CLUTCH YZ125G Diagram

#

Description
Price

1

GEAR, PRI DRIVE (18T)

3R3-16111-00-00

Unavailable

2

WASHER, SPRING (1W1)

90204-12007-00

$8.49

3

NUT (4V2)

90179-12335-00

Unavailable

4

O-RING (601)

93210-20027-00

$7.49

5

. PRI DRVN GEAR (62T)

3R3-16150-00-00

Unavailable

5

CLUTCH ASSEMBLY

(3R3-16300-00-00)

Unavailable

7

. BOSS, CLUTCH

1G8-16371-00-00

Unavailable

8

. PLATE, CLUTCH 2

3R3-16325-00-00

Unavailable

9

PLATE, FRICTION

537-16321-00-00

$17.49

10

. PLATE, PRESSURE 1

1W1-16351-00-00

Unavailable

11

SPRING, COMPRESSION (400)

90501-20361-00

$13.49

12

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

13

SPACER

90560-17190-00

Unavailable

14

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

15

WASHER, LOCK (2K6)

90215-14204-00

$9.49

16

NUT, HEXAGON

90170-14171-00

Unavailable

17

ROD, PUSH 2

2X3-16357-00-00

Unavailable

18

BALL

93503-16003-00

Unavailable

19

PLATE, PUSH

1W1-16358-01-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

NUT, HEXAGON

95380-06600-00

Unavailable

22

ROD, PUSH

1W1-16356-02-00

Unavailable

23

PUSH LEVER ASSEMBLY

3R3-16380-02-00

Unavailable

24

SPRING, TORSION

90508-14426-00

Unavailable

25

WASHER PLATE 150251530000

90201-14217-00

Unavailable

26

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

27

BEARING, CYLINDRICAL (3R3)

93315-21429-00

Unavailable

28

PIN, DOWEL (409)

93604-16092-00

Unavailable
