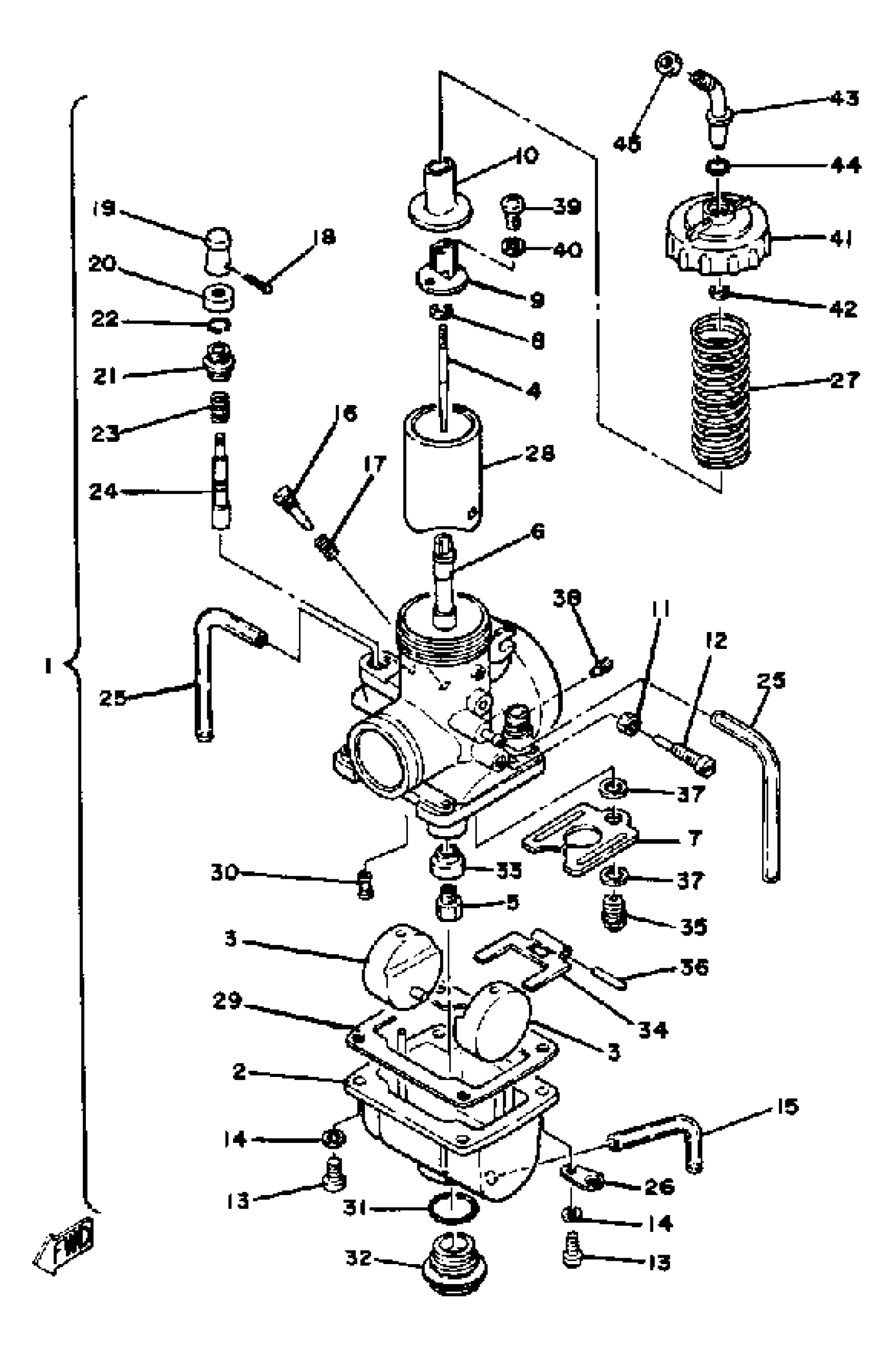

Yamaha YZ125E (YZ125E_F_G) 1978 CARBURETOR YZ125G Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

4V2-14101-00-00

Unavailable

2

BODY, FLOAT CHMBR 1

(3R3-14181-16-00)

Unavailable

3

. FLOAT

310-14185-00-00

Unavailable

4

. NEEDLE

239-14116-22-00

Unavailable

5

JET, MAIN #290

137-14143-58-A1

Unavailable

5

JET, MAIN #300

137-14143-60-A0

$11.99

5

JET, MAIN #310

137-14143-62-A1

Unavailable

6

. NOZZLE, MAIN P-8

239-14141-48-00

Unavailable

7

. PLATE

483-14146-00-00

Unavailable

8

CLIP

3FA-14137-00-00

$7.99

9

. CONNECTOR

509-14274-00-00

Unavailable

10

. SEAT, SPRING

509-14136-00-00

Unavailable

11

NUT, WIRE ADJUSTING

802-14161-00-00

$7.99

12

THROTTLE SCREW SET

40T-14103-00-00

Unavailable

13

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

15

PIPE, OVER FLOW

2J2-14196-00-00

Unavailable

16

AIR SCREW SET

23X-14104-00-00

Unavailable

17

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

18

PIN, COTTER

91490-16020-00

Unavailable

19

. HOLDER

737-14261-00-00

Unavailable

20

. COVER, PLUNGER CAP

637-14173-00-00

Unavailable

21

CAP, PLUNGER

152-14174-00-00

Unavailable

22

CLIP, PLUNGER

353-14138-00-00

Unavailable

23

SPRING, PLUNGER

132-14135-00-00

Unavailable

24

. PLUNGER, STARTER

737-14171-01-00

Unavailable

25

HOSE

89A-14987-00-00

Unavailable

26

. PLATE

313-14146-00-00

Unavailable

27

. SPRING, THROTTLE VALVE

363-14131-00-00

Unavailable

28

. VALVE, THROTTLE 1

3R3-14112-30-00

Unavailable

29

GASKET, FLOAT CHAMBER

483-14184-00-00

Unavailable

30

. JET, PILOT #60

193-14142-60-00

Unavailable

31

O-RING

2K6-14147-00-00

Unavailable

32

. PLUG, SCREW

2K6-14115-00-00

Unavailable

33

. WASHER, MAIN JET

3R3-14153-00-00

Unavailable

34

. ARM, FLOAT

310-14187-00-00

Unavailable

35

NEEDLE VALVE SET

24X-14107-33-00

Unavailable

36

PIN, FLOAT

537-14186-00-00

Unavailable

37

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

38

JET, AIR (#2.0)

239-14172-20-00

Unavailable

39

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

40

WASHER, SPRING

92990-03100-00

Unavailable

41

. TOP, MIXING CHAMBER

3R3-14158-00-00

Unavailable

42

CLIP

363-14137-00-00

Unavailable

43

. CBLE AJST SCRW SETSCREW SET

24X-14106-00-00

Unavailable

44

O-RING

8F2-14147-00-00

Unavailable

45

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable
