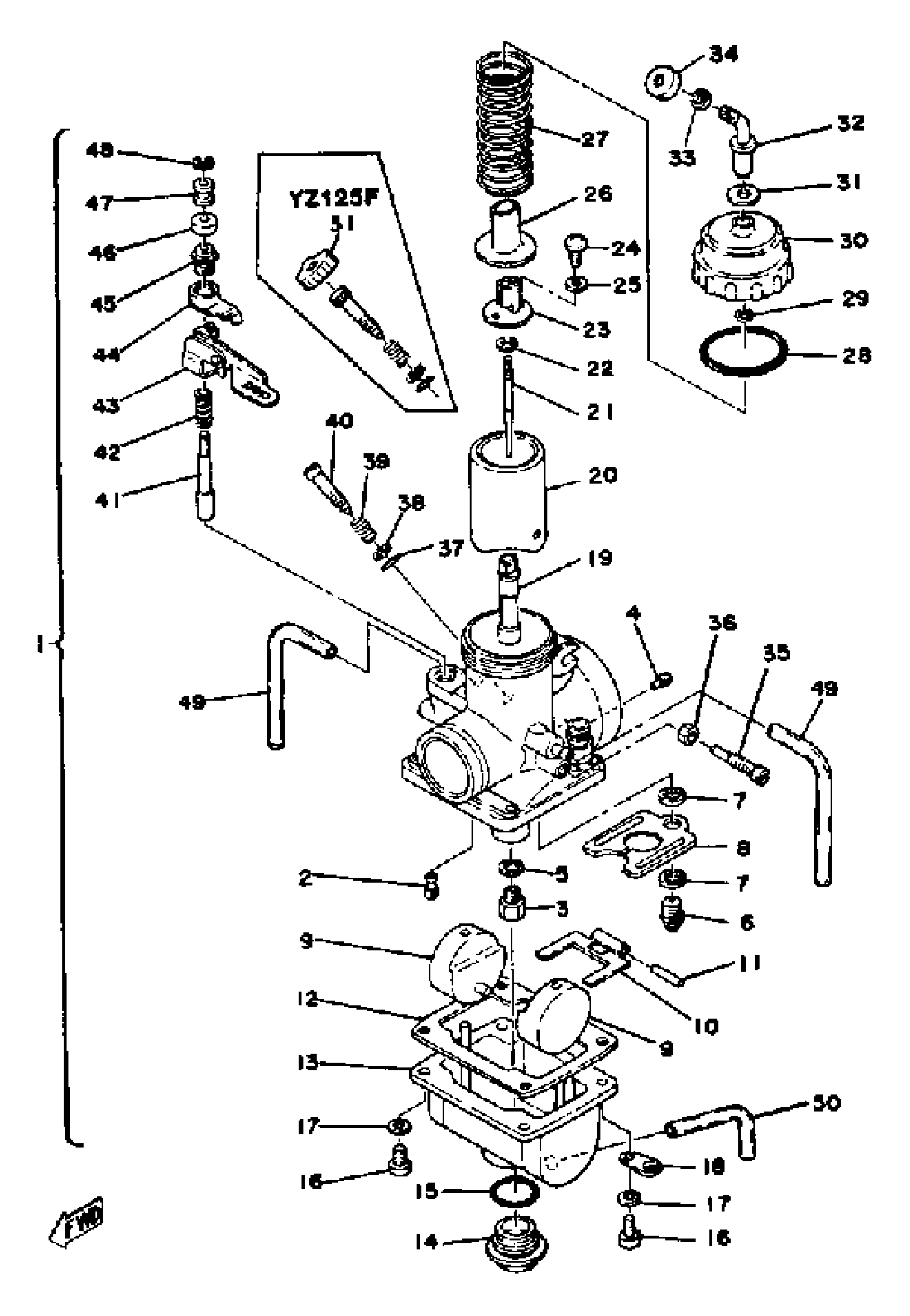

Yamaha YZ125E (YZ125E_F_G) 1978 CARBURETOR YZ125E - F Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(2K6-14101-00-00)

Unavailable

1

CARBURETOR ASSEMBLY 1

(2X3-14101-00-00)

Unavailable

2

. JET, PILOT #60

193-14142-60-00

Unavailable

3

JET, MAIN #270

137-14143-54-A1

$11.99

3

JET, MAIN #280

137-14143-56-A0

Unavailable

3

JET, MAIN #290

137-14143-58-A1

Unavailable

4

JET, AIR (#2.0)

239-14172-20-00

$8.99

5

WASHER, MAIN JET

(537-14153-00-00)

Unavailable

6

NEEDLE VALVE SET

24X-14107-33-00

$50.99

7

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

8

. PLATE

483-14146-00-00

Unavailable

9

. FLOAT

310-14185-00-00

Unavailable

10

. ARM, FLOAT

310-14187-00-00

Unavailable

11

PIN, FLOAT

127-14186-00-00

$6.65

12

GASKET, FLOAT CHAMBER

483-14184-00-00

$22.99

13

BODY, FLOAT CHMBR 1

(2K6-14181-16-00)

Unavailable

14

. PLUG, SCREW

2K6-14115-00-00

Unavailable

15

O-RING

2K6-14147-00-00

Unavailable

16

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

. PLATE

313-14146-00-00

Unavailable

19

. NOZZLE, MAIN P-8

239-14141-48-00

Unavailable

20

. VALVE, THROTTLE 1

509-14112-30-00

Unavailable

21

. NEEDLE

239-14116-22-00

Unavailable

22

CLIP

3FA-14137-00-00

Unavailable

23

. CONNECTOR

509-14274-00-00

Unavailable

24

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

25

WASHER, SPRING

92990-03100-00

Unavailable

26

. SEAT, SPRING

509-14136-00-00

Unavailable

27

. SPRING, THROTTLE VALVE

363-14131-00-00

Unavailable

28

. O-RING

93210-40289-00

Unavailable

29

CLIP

363-14137-00-00

Unavailable

30

. TOP, MIXING CHAMBER (500-14158-00-33)

500-14158-00-00

Unavailable

31

GASKET

509-14198-00-00

Unavailable

32

. GUIDE, CABLE

500-14155-00-00

Unavailable

33

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

34

CAP

3X3-14169-00-00

Unavailable

35

THROTTLE SCREW SET

40T-14103-00-00

Unavailable

36

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

37

. O-RING

6K8-14562-00-00

Unavailable

38

WASHER,NEEDLE

812-14235-00-00

Unavailable

39

. SPRING, AIR ADJUSTING

137-14134-00-00

Unavailable

40

. SCREW, AIR ADJUSTING

1G8-14123-00-00

Unavailable

40

. AIR SCREW SET (2X3-14123-00)

43G-14104-00-00

Unavailable

41

. PLUNGER, STARTER

1W1-14171-00-00

Unavailable

42

. SPRING, PLUNGER

256-14135-00-00

Unavailable

43

. LEVER, STARTER 1

1W1-14175-01-00

Unavailable

44

. PLATE, STARTER LEVER

275-14178-00-00

Unavailable

45

. CAP, PLUNGER

802-14174-00-00

Unavailable

46

. COVER, PLUNGER CAP

802-14173-00-00

Unavailable

47

. RING

583-14918-00-00

Unavailable

48

. CLIP

737-14137-00-00

Unavailable

49

HOSE

89A-14987-00-00

Unavailable

50

PIPE, OVER FLOW

2J2-14196-00-00

Unavailable

51

. CAP

1W1-14968-00-00

Unavailable
