CARBURETOR

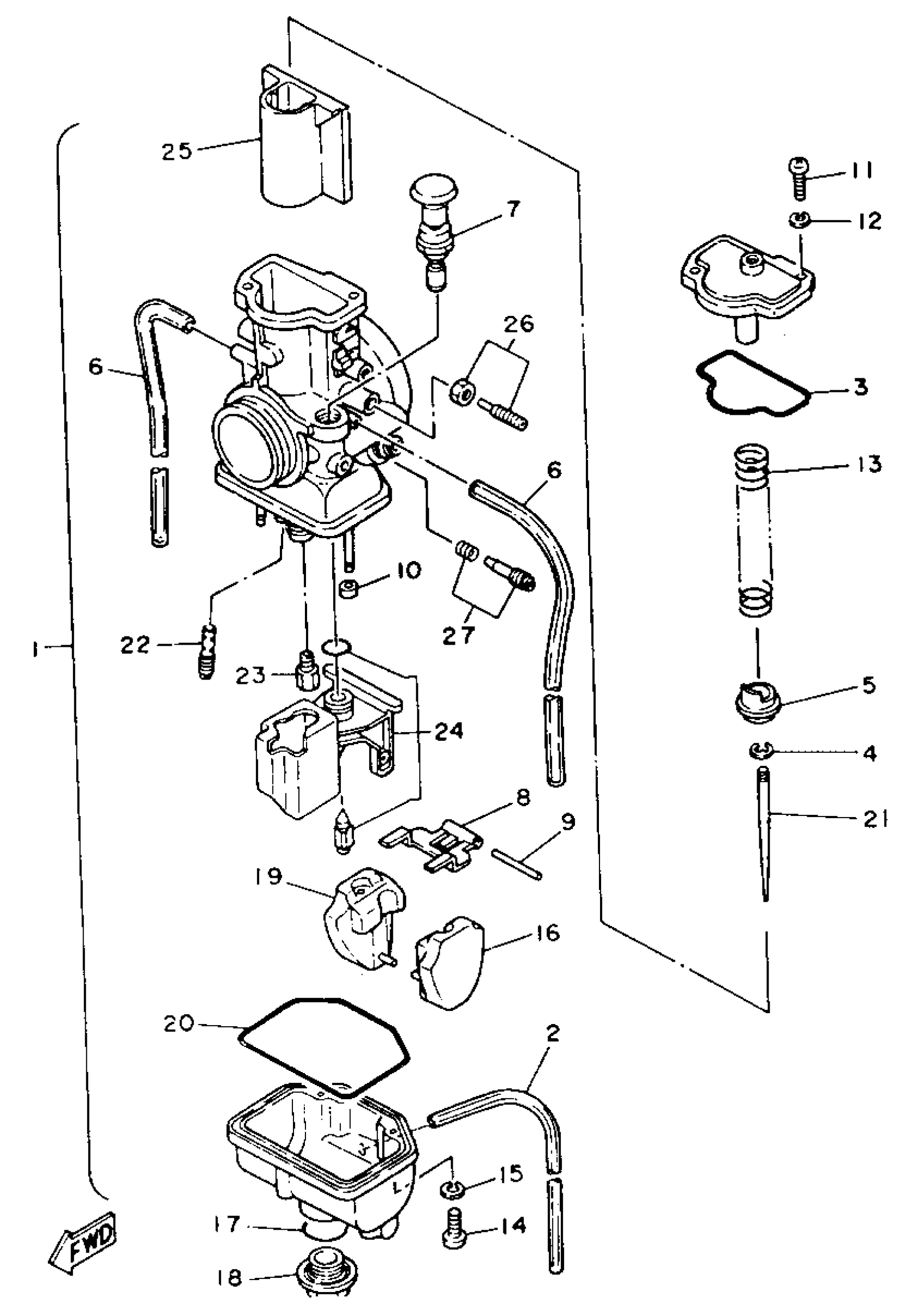

Yamaha YZ125E (YZ125E_F_G) 1978 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
4EX-14101-10-00
Unavailable
2
PIPE
55X-14196-00-00
Unavailable
5
. RING
3JD-14194-00-00
Unavailable
8
. ARM, FLOAT
363-14187-00-00
Unavailable
10
CAP
214-14118-00-00
Unavailable
11
SCREW, PAN HEAD
98511-04012-00
Unavailable
13
. SPRING, THROTTLE VALVE
3JD-14131-00-00
Unavailable
16
. FLOAT
3JD-14185-00-00
Unavailable
17
O-RING
3JE-14561-00-00
Unavailable
18
. PLUG, SCREW
4DB-14115-00-00
Unavailable
19
. FLOAT
3JE-14185-00-00
Unavailable
20
O-RING
3JE-14147-00-00
Unavailable
21
. NEEDLE (J8-6EN15-55)
3JD-14116-A1-00
Unavailable
21
. NEEDLE (J8-6EN15-54)
3JD-14116-A3-00
Unavailable
21
. NEEDLE (J8-6EN15-56)
3JD-14116-A4-00
Unavailable
21
. NEEDLE (J8-6EN15-57)
3JD-14116-A5-00
Unavailable
22
JET, PILOT (# 17.5)
3H1-14142-17-00
Unavailable
22
JET, PILOT (# 20)
3H1-14142-20-00
Unavailable
22
. JET, PILOT #25
3H1-14142-25-00
Unavailable
22
. JET, PILOT (# 35)
3H1-14142-35-00
Unavailable
23
JET, MAIN #310
137-14143-62-A1
Unavailable
23
JET, MAIN #320
137-14143-64-00
Unavailable
23
JET, MAIN #330
137-14143-66-A1
Unavailable
23
JET,MAIN #340
137-14143-68-00
Unavailable
23
JET,MAIN #350
137-14143-70-00
Unavailable
24
NEEDLE VALVE SET
3JD-14107-35-00
Unavailable
25
. VALVE, THROTTLE (CA 30)
3JD-14112-30-00
Unavailable
25
. VALVE, THROTTLE (CA 35)
3JD-14112-35-00
Unavailable
25
. VALVE, THROTTLE (CA 40)
3JD-14112-40-00
Unavailable
25
. VALVE, THROTTLE (CA 45)
3JD-14112-45-00
Unavailable
25
. VALVE, THROTTLE (CA 50)
3JD-14112-50-00
Unavailable
26
THROTTLE SCREW SET
3JD-14103-00-00
Unavailable
27
AIR SCREW SET
4GL-14104-00-00
Unavailable
