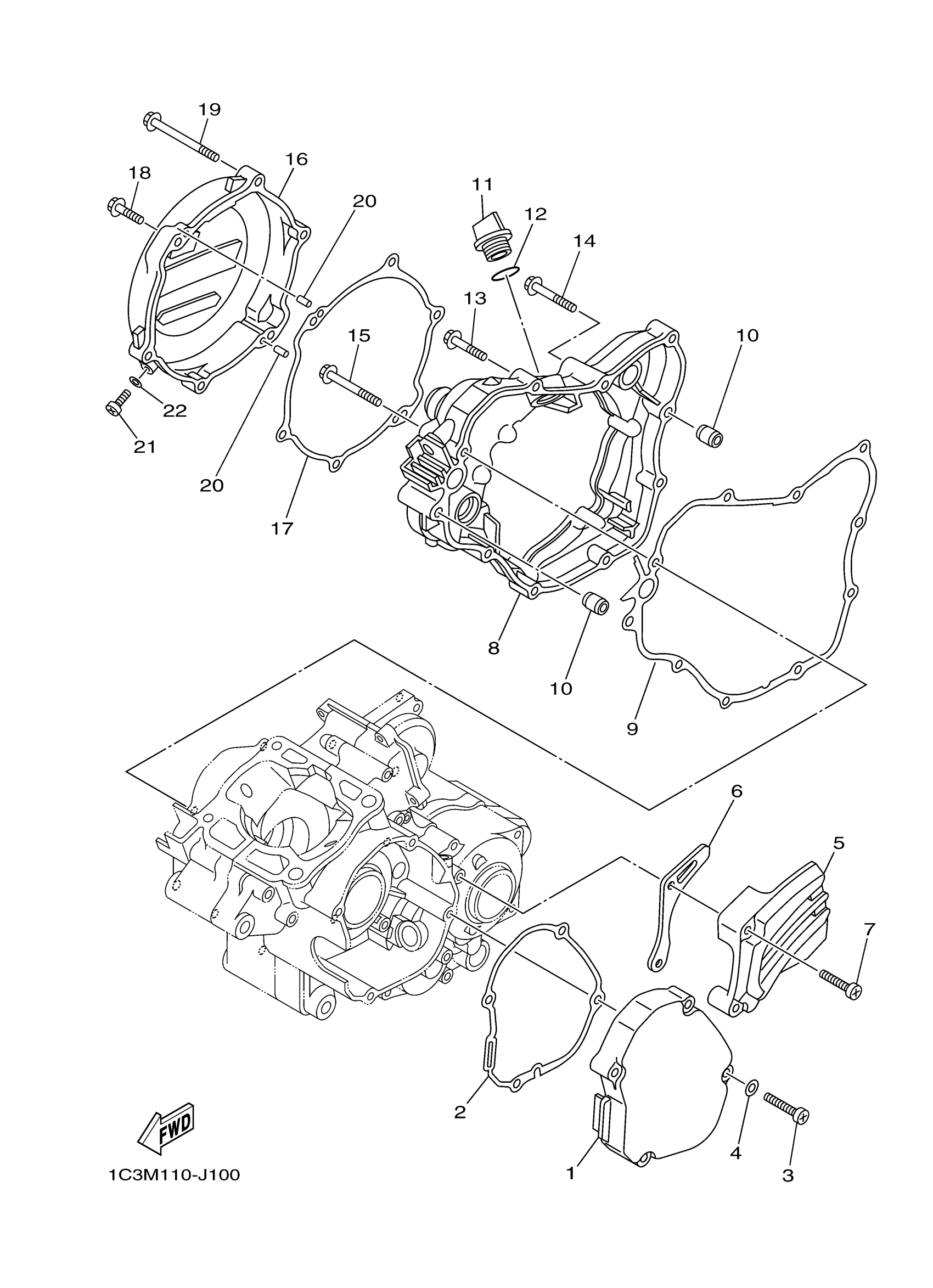

Yamaha YZ125D2 (YZ125) 1SR5 2013 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1C3-15411-10-00

$36.44

2

GASKET, CRANKCASE COVER 1

1C3-15451-00-00

$12.73

3

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

4

WASHER, PLAIN (646)

92990-06600-00

$1.84

5

COVER, CRANKCASE 2

1C3-15421-10-00

Unavailable

6

GUIDE, CHAIN

1C3-17466-00-00

$10.10

7

SCREW, PAN HEAD

98502-06030-00

$1.16

8

COVER, CRANKCASE 3

1C3-15431-03-00

Unavailable

9

GASKET, CRANKCASE COVER 3

1C3-15462-00-00

$14.07

10

PIN, DOWEL(3XW)

91808-16023-00

$5.26

11

PLUG, OIL

3Y1-15363-10-00

$15.94

12

O-RING (646)

93210-19123-00

Unavailable

13

BOLT, FLANGE

95022-06030-00

$1.31

14

BOLT, FLANGE

95022-06040-00

$2.80

15

BOLT, FLANGE

95022-06050-00

$1.36

16

COVER, GENERATOR

1C3-15415-10-00

Unavailable

17

GASKET, 2

1C3-15463-00-00

Unavailable

18

BOLT, FLANGE

95022-06065-00

Unavailable

19

BOLT, FLANGE

95022-06025-00

Unavailable

20

PIN,DOWEL (603)

93604-10011-00

Unavailable

21

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable
