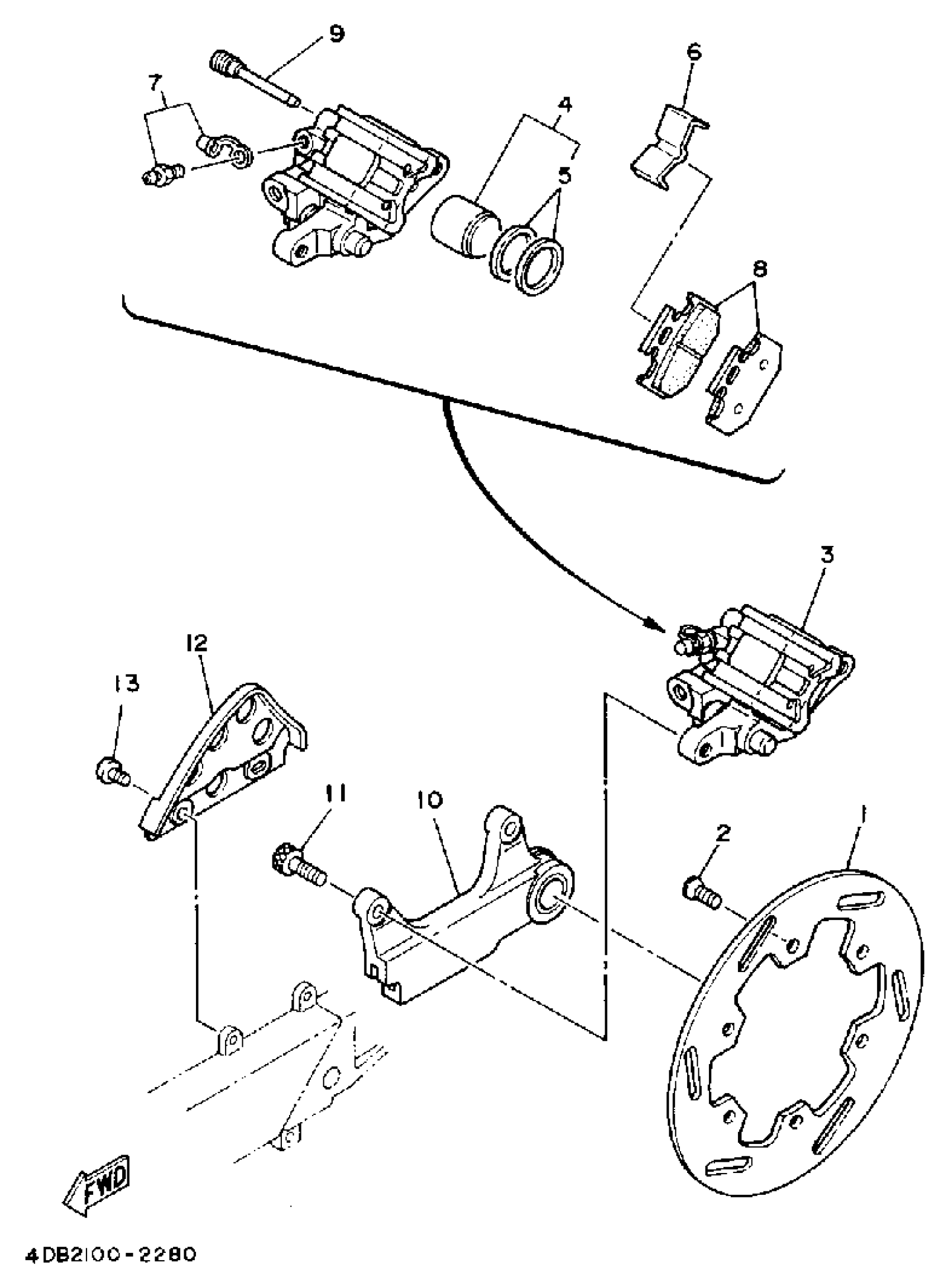

Yamaha YZ125D1 (YZ125D1) 1992 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

4MX-2582W-00-00

Unavailable

SCREW, COUNTERSUNK

90151-06080-00

$2.18

CALIPER ASSEMBLY, REAR 2 (3XJ-2580W-00)

4DA-2580W-00-00

Unavailable

PISTON ASSY, CALIPER

3SP-W0057-50-00

Unavailable

CALIPER SEAL KIT

3JD-25803-50-00

$16.49

SUPPORT, PAD

3SP-25919-51-00

Unavailable

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

. BRAKE PAD KIT 2

4DA-W0046-00-00

Unavailable

PIN, PAD

3FV-25924-00-00

$23.99

SUPT. BRACKET ASSEMBLY.

3XJ-25920-00-00

Unavailable

BOLT,SOCKET

91314-08025-00

$8.49

PROTECTOR

3JD-27491-00-00

Unavailable

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28
