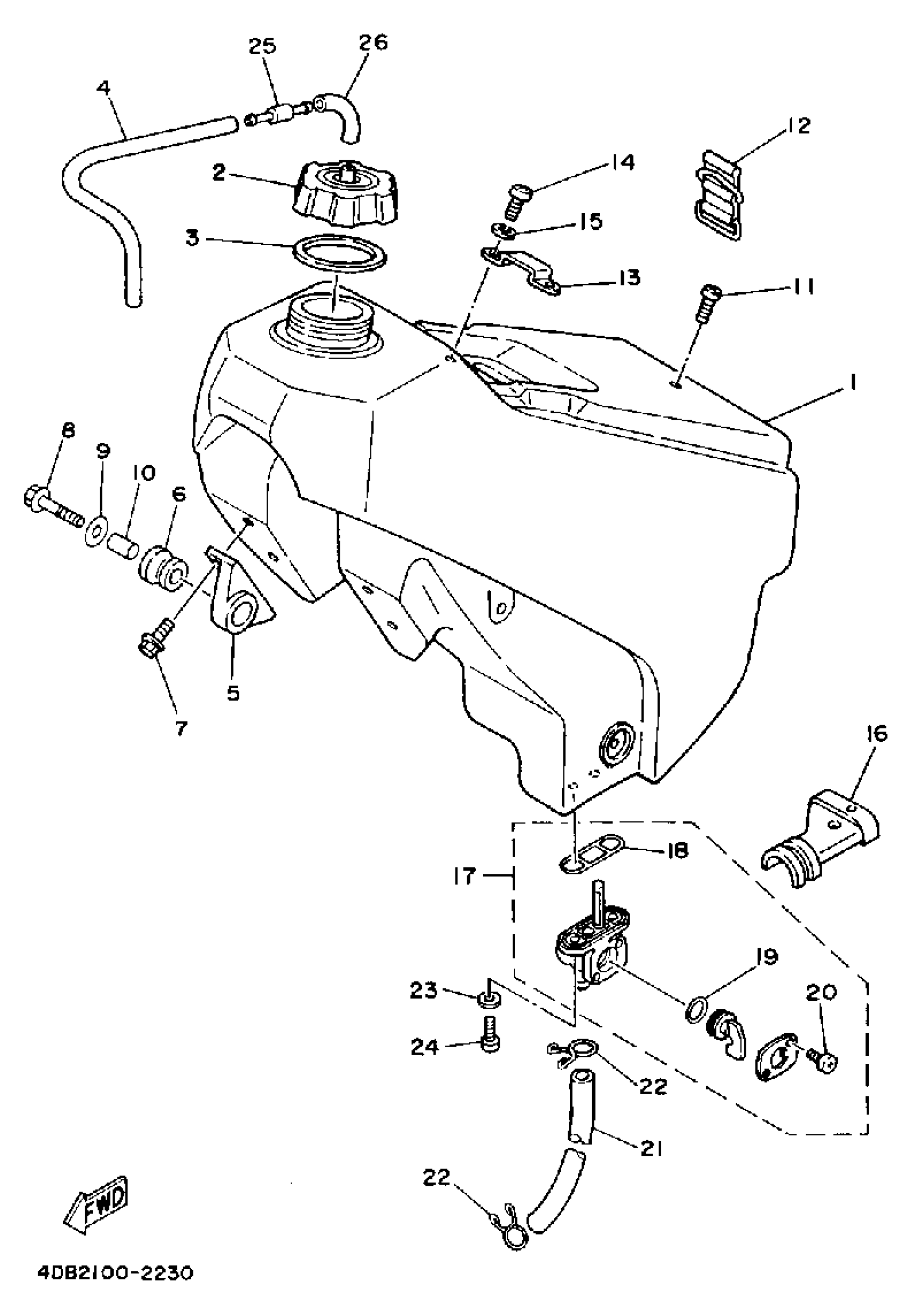

Yamaha YZ125D1 (YZ125D1) 1992 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3XJ-24110-01-00

Unavailable

2

BODY, CAP

5X7-24611-01-00

Unavailable

3

PACKING, CAP

5X7-24612-00-00

Unavailable

4

HOSE (L420)

90445-092K1-00

$12.49

5

HOLDER, DAMPER

5XE-24144-00-00

$23.99

6

GROMMET(4AA)

90480-18549-00

$10.49

7

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

8

BOLT, FLANGE(4BH)

95024-06035-00

$9.49

9

WASHER, PLATE (J10)

90201-06697-00

$8.49

10

COLLAR 849833160000

90387-06027-00

$8.49

11

SCREW, BIND (J17)

98980-06020-00

$8.49

12

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

13

BRACKET, SEAT

5X6-2412F-00-00

Unavailable

14

BOLT (661)

97013-06012-00

$5.60

15

WASHER, SPRING

92995-06100-00

Unavailable

16

DAMPER, LOCATING 1

1LX-24181-00-00

Unavailable

17

FUEL COCK ASSY 1

3JD-24500-20-00

Unavailable

18

O-RING

4X8-24512-00-00

Unavailable

19

SEAL, COCK

3AJ-24534-01-00

Unavailable

20

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

21

HOSE (L198)

90445-11293-00

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

SCREW 256241430000

90149-06011-00

Unavailable

25

PIPE JOINT ASSY

3XJ-24380-00-00

Unavailable

26

HOSE (L420)

90445-092K1-00

$12.49
