Description

Price

1

CRKSHFT ASY

3XJ-11400-01-00

Unavailable

2

. CRANK 1

3SR-11412-00-00

Unavailable

3

. CRANK 2

3XJ-11422-00-00

Unavailable

4

ROD, CONNECTING

4PE-11651-02-00

Unavailable

5

PIN, CRANK 1

3JD-11681-10-00

$68.99

6

WASHER(47X)

90209-22257-00

Unavailable

7

BEARING

93310-52238-00

$74.99

8

PISTON STD

4DB-11631-00-A0

Unavailable

8

. PISTON STD

4DB-11631-00-B0

Unavailable

8

PISTON STD

4DB-11631-00-C0

Unavailable

8

PISTON STD

4DB-11631-00-D0

Unavailable

9

RING, PISTON

5X4-11611-02-00

$34.99

10

PIN, PISTON

137-11633-10-00

$27.99

11

CIRCLIP(1AR)

93450-17129-00

$4.14

12

BEARING, NEEDLE (24X)

93310-216L2-00

$33.99

13

BEARING(1LX)

93306-37204-00

Unavailable

14

OIL SEAL(1LX)

93102-22363-00

Unavailable

15

OIL SEAL(3KX)

93103-32171-00

Unavailable

16

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

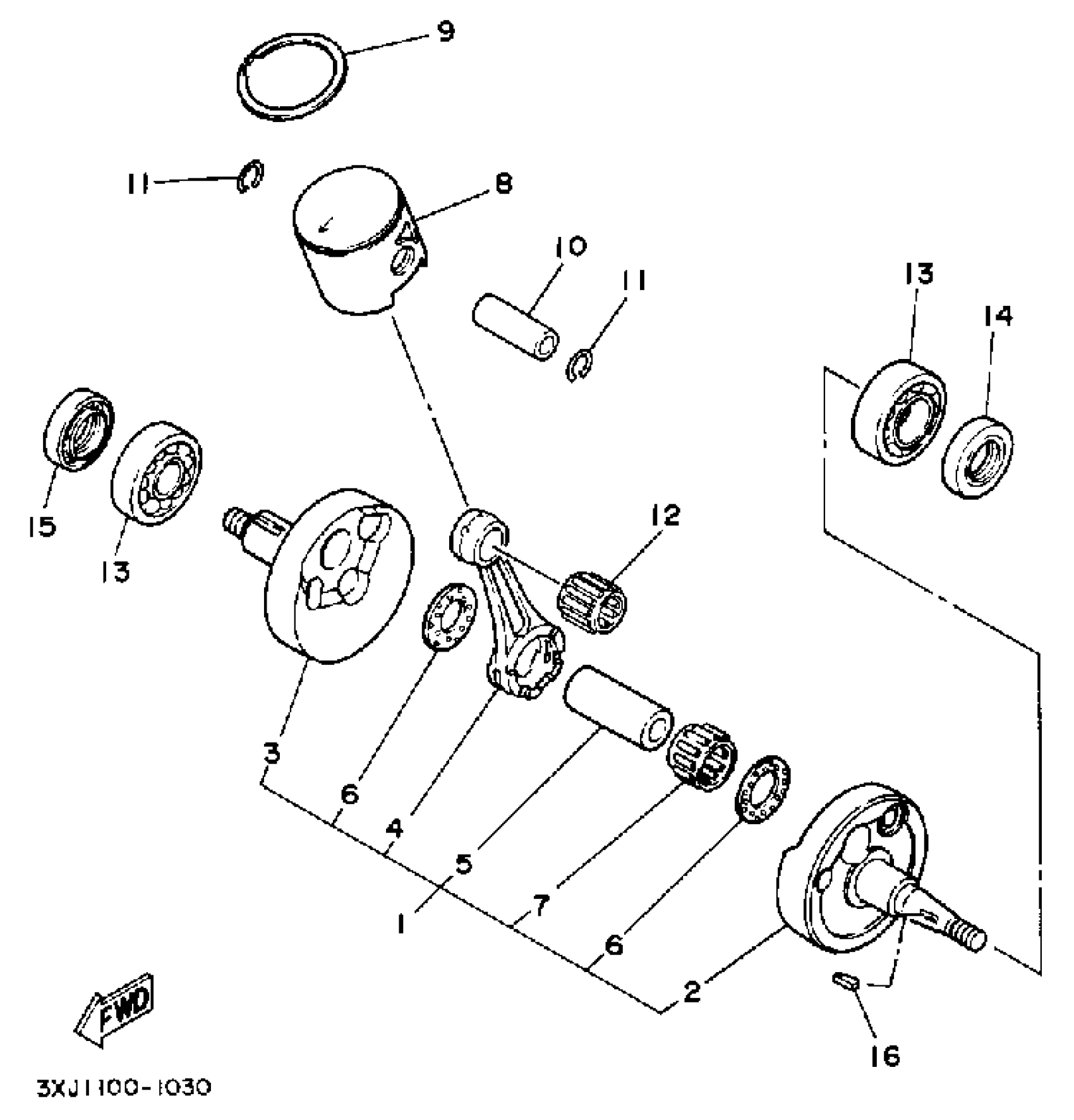

Yamaha YZ125D1 (YZ125D1) 1992 CRANKSHAFT-PISTON Diagram

CRKSHFT ASY

. CRANK 1

. CRANK 2

ROD, CONNECTING

PIN, CRANK 1

WASHER(47X)

BEARING

PISTON STD

. PISTON STD

PISTON STD

PISTON STD

RING, PISTON

PIN, PISTON

CIRCLIP(1AR)

BEARING, NEEDLE (24X)

BEARING(1LX)

OIL SEAL(1LX)

OIL SEAL(3KX)

KEY WOODRUFF 146115450000
