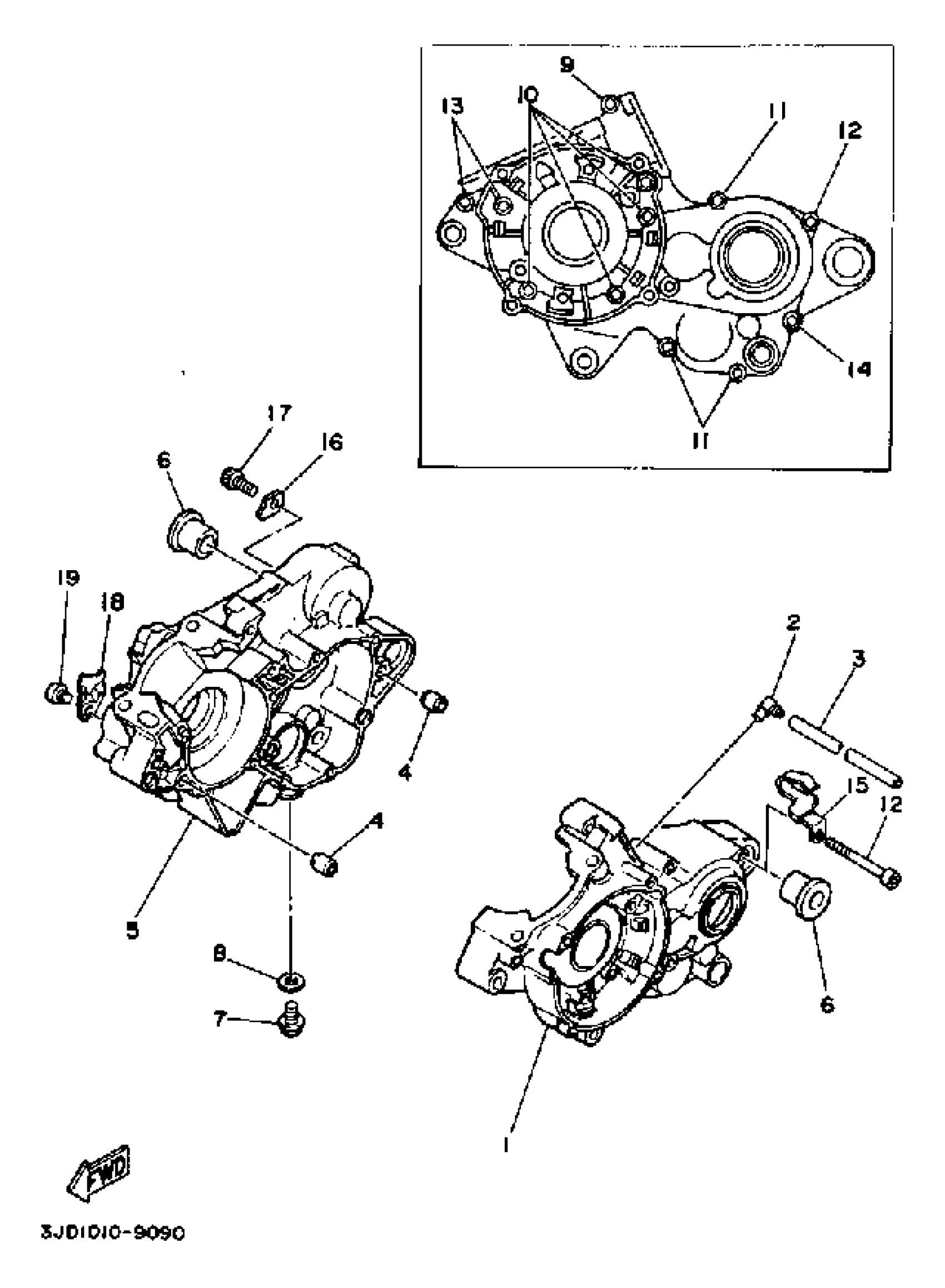

Yamaha YZ125B (YZ125B) 1975 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

1LX-15111-12-00

Unavailable

2

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

3

HOSE (L1500)

90445-084J0-00

$18.99

4

PIN, DOWEL

99530-12016-00

$4.89

5

CRANKCASE 2

1LX-15121-12-00

Unavailable

6

COLLAR

90387-16781-00

Unavailable

7

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

8

GASKET (3JD1)

90430-12207-00

$7.99

9

BOLT,SOCKET

91317-06035-00

Unavailable

10

BOLT,SOCKET

91317-06045-00

$4.99

11

BOLT,SOCKET

91317-06055-00

$4.19

12

BOLT, SOCKET

91317-06070-00

$4.99

13

BOLT,SOCKET

91317-06060-00

$3.76

14

BOLT, SOCKET

91317-06065-00

$3.76

15

CLAMP(3JD)

90465-08336-00

$10.49

16

WASHER

90209-06290-00

Unavailable

17

BOLT, SOCKET

91317-05012-00

Unavailable

18

HOLDER

3R3-15128-01-00

Unavailable

19

SCREW, PAN

98507-08010-00

Unavailable
