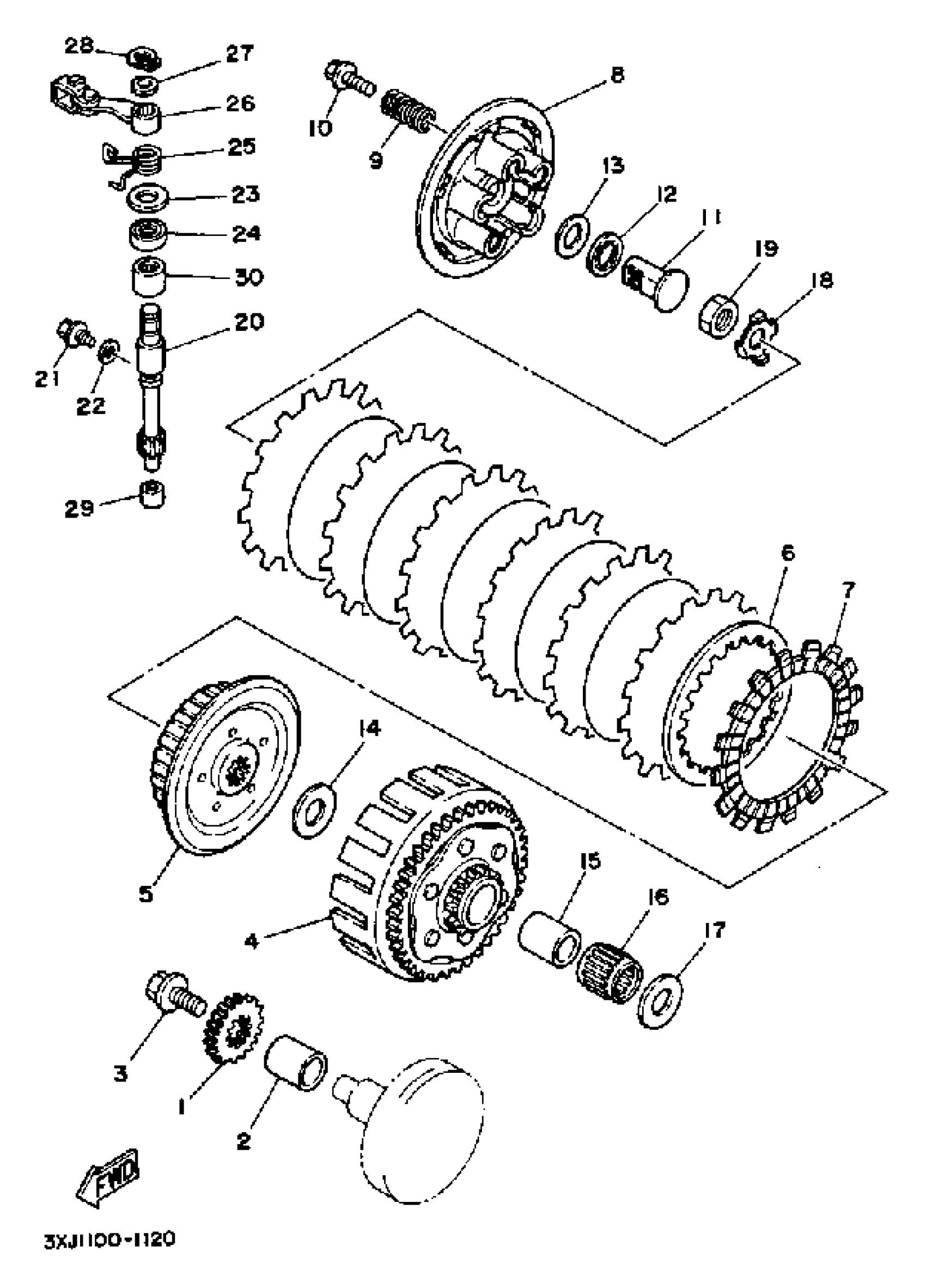

Yamaha YZ125B (YZ125B) 1975 CLUTCH Diagram

GEAR, PRIMARY DRIVE

3XJ-16111-00-00

Unavailable

COLLAR(2RH)

90387-202T9-00

$36.99

BOLT, WASHER BASED(1TX)

90105-10445-00

$11.49

PRI DRVN GEARCOMP.

3XJ-16150-00-00

Unavailable

BOSS, CLUTCH

3XJ-16371-00-00

Unavailable

PLATE, CLUTCH 1

3XJ-16324-10-00

$13.49

PLATE, FRICTION

3XJ-16321-00-00

$22.99

PLATE, PRESSURE 1

3XJ-16351-00-00

Unavailable

SPRING, COMPRESSION (4H7)

90501-23598-00

$7.49

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

ROD, PUSH 1

3XJ-16356-00-00

Unavailable

BEARING, THRUST (713)

93340-21505-00

$18.99

WASHER, PLATE(3GD)

90201-150U6-00

$9.49

WASHER, PLATE(1HX)

90201-204K8-00

$10.49

SPACER 1

3XJ-16181-00-00

Unavailable

BEARING, CYLINDRICAL(51Y)

93310-225N0-00

Unavailable

PLATE, THRUST 2

3XJ-16164-00-00

Unavailable

WASHER, LOCK (30X)

90215-16320-00

Unavailable

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

AXLE, PUSH LEVER

3JD-16382-00-00

Unavailable

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

GASKET 256113960000

90430-06014-00

Unavailable

WASHER PLATE 102181410000

90201-12474-00

Unavailable

OIL SEAL (3X3)

93102-15212-00

Unavailable

SPRING, TORSION

90508-14767-00

Unavailable

PUSH LEVER ASSY

3JD-16340-00-00

Unavailable

WASHER, PLAIN(735)

90201-10119-00

Unavailable

CIRCLIP(10W)

99009-10400-00

Unavailable

BEARING

93315-10838-00

Unavailable

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable
