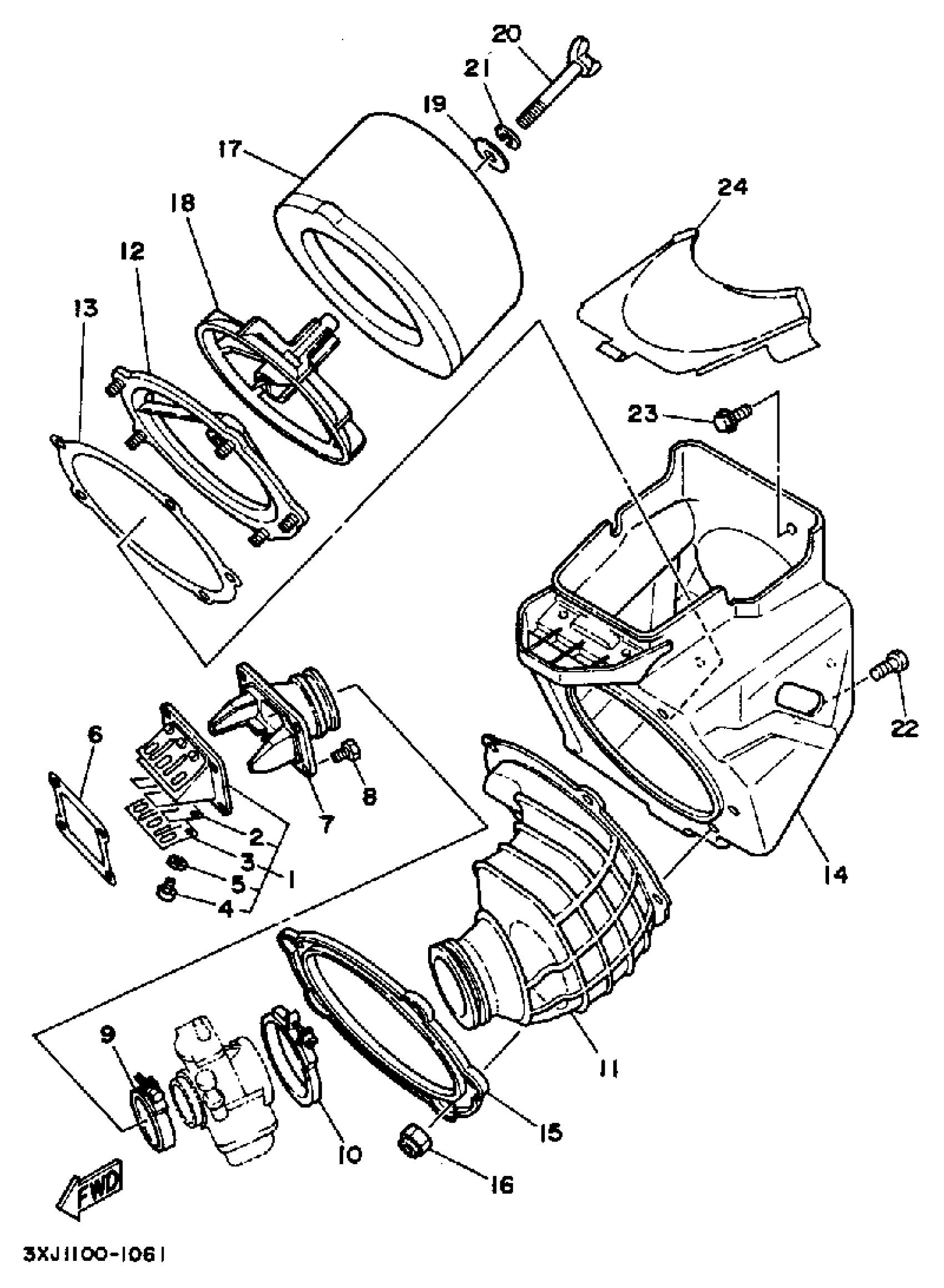

Yamaha YZ125B (YZ125B) 1975 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

2VN-13610-00-00

Unavailable

2

. REED, VALVE

1RX-13613-00-00

Unavailable

3

STOPPER, REED VALVE

2VN-13616-00-00

$30.99

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

2K7-13621-10-00

$14.49

7

JOINT, CARBURETOR

3SR-13565-00-00

Unavailable

8

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

9

CLAMP, HOSE

90460-51109-00

Unavailable

10

CLAMP, HOSE (29L)

90460-68230-00

$16.99

11

JOINT, AIR CLNR 1

3XJ-14453-00-00

Unavailable

12

HOLDER,GUIDE

3JD-14459-01-00

Unavailable

13

SEAL

3JD-14462-00-00

$35.99

14

AIR CLEANER CASE COMP. (3XJ-W1441-00)

3XJ-W1441-01-00

Unavailable

15

PLATE

5MV-14477-00-00

Unavailable

16

NUT, U

95617-05100-00

Unavailable

17

ELEMENT, AIR CLEANER

3JD-14451-01-00

Unavailable

18

GUIDE

3JD-14458-01-00

Unavailable

19

WASHER (4H7)

90209-06096-00

Unavailable

20

BOLT, WING

90122-06005-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

23

BOLT, WITH WASHER(3JD)

90119-06185-00

Unavailable

24

COVER, CASE

3XJ-1441A-00-00

Unavailable
