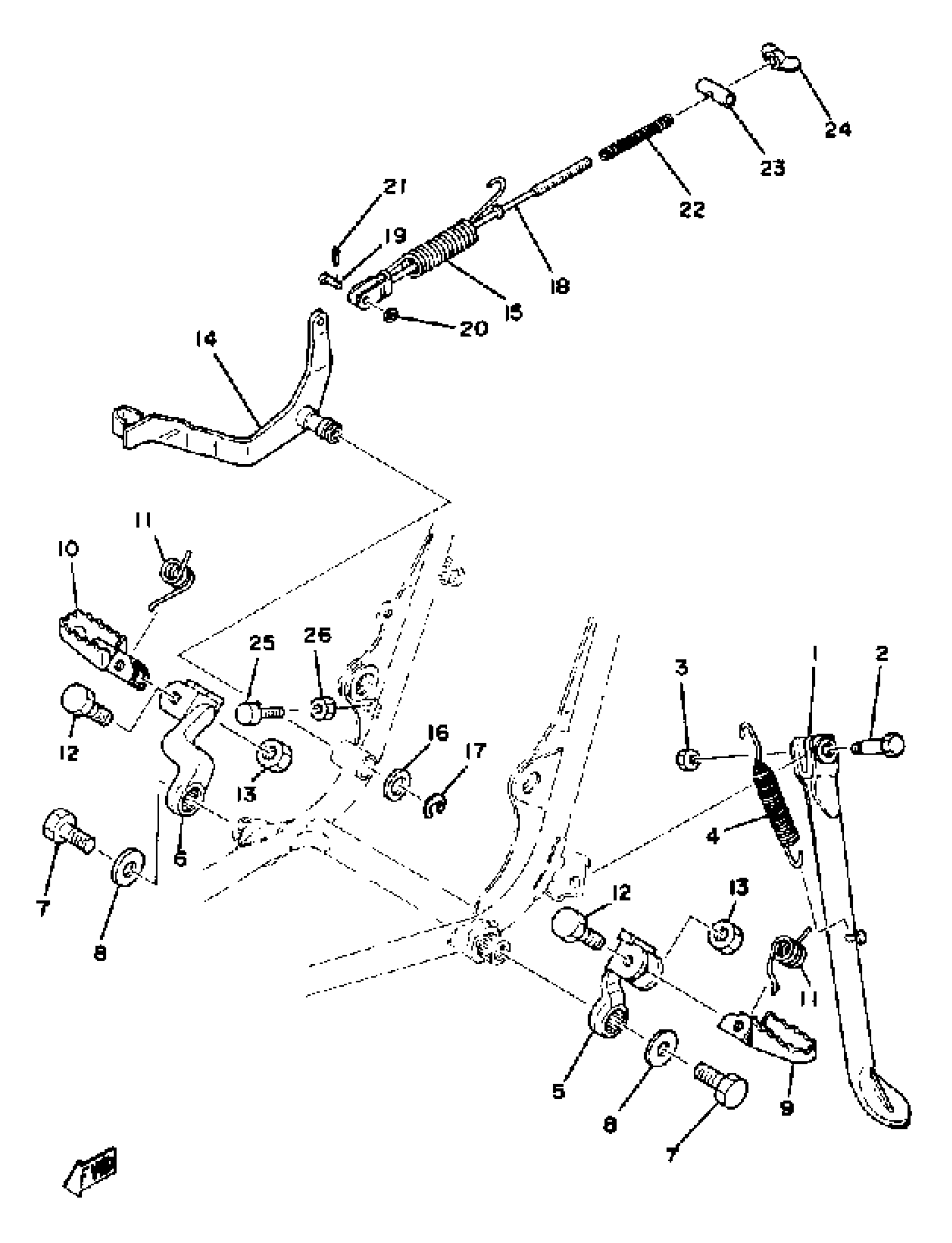

Yamaha YZ125A (YZ125A) 1974 STAND - FOOTREST - BRAKE PEDAL YZ125D Diagram

#

Description
Price

1

STAND, SIDE

1W1-27311-10-00

Unavailable

2

BOLT

90109-10473-00

$8.49

3

NUT (682)

95380-10700-00

Unavailable

4

SPRING (434)

90507-29008-00

$28.99

5

BRACKET FOOTREST

(99999-01340-00)

Unavailable

6

BRACKET FOOTREST

(99999-01109-00)

Unavailable

7

BOLT,HEXAGON

97017-10016-00

Unavailable

8

WASHER (583)

90201-10639-00

$10.49

9

FOOTREST 1

1W4-27411-00-00

Unavailable

10

FOOTREST 2

1W4-27421-00-00

Unavailable

11

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

12

BOLT

90101-08371-00

Unavailable

13

NUT, U

95617-08100-00

$9.49

14

PEDAL, BRAKE

(1W1-27211-01-33)

Unavailable

15

SPRING, TENSION

90506-18289-00

$14.99

16

WASHER PLATE 611441260000

90201-14212-00

Unavailable

17

CIRCLIP (137)

93430-10015-00

Unavailable

18

ROD, BRAKE

322-27231-00-00

Unavailable

19

PIN, CLEVIS (24X)

90240-06103-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable

22

SPRING, (180-27236-00)

90501-10245-00

Unavailable

23

PIN 1562723700

90249-12008-00

Unavailable

24

NUT (25K)

90179-06411-00

Unavailable

25

BOLT, HEXAGON

97017-06020-00

Unavailable

26

NUT(650)

95380-06700-00

Unavailable
