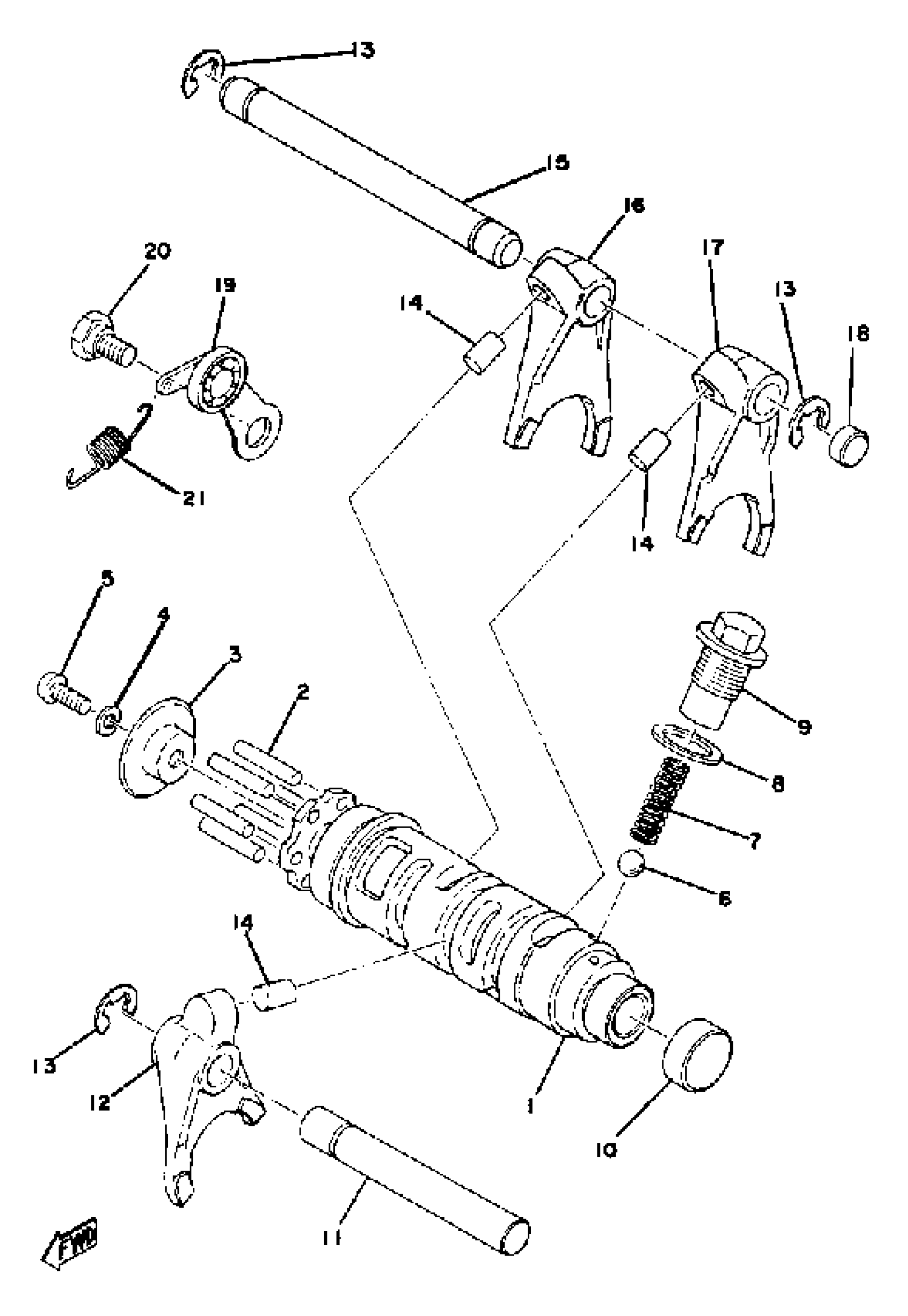

Yamaha YZ125A (YZ125A) 1974 SHIFTER 1 YZ125C Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

1G8-18540-00-00

Unavailable

1

SHIFT CAM ASSEMBLY

1G8-18540-00-00

Unavailable

2

PIN,DOWEL (620)

93604-22050-00

$8.49

3

PLATE, SIDE 1

525-18561-00-00

Unavailable

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

6

BALL

93505-16006-00

$8.49

7

SPRING, COMPRESION

90501-12750-00

Unavailable

8

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

9

BOLT

90109-14385-00

$16.99

10

PLUG 363174810000

90338-20023-00

$5.60

11

BAR, SHIFT FORK GUIDE 1

(257-18531-00-00)

Unavailable

12

FORK, SHIFT 2

(525-18512-00-00)

Unavailable

13

CIRCLIP(2R6)

99001-08600-00

$8.49

14

PIN STRAIGHT 257185520000

90250-06013-00

$9.49

15

BAR, SHIFT FORK GUIDE 2

363-18535-00-00

Unavailable

16

FORK, SHIFT 3

525-18513-00-00

Unavailable

17

FORK, SHIFT 1

537-18511-00-00

Unavailable

18

PLUG, SPECIAL SHAPE

90338-10063-00

Unavailable

19

STOPPER

1G8-18140-00-00

Unavailable

19

STOPPER LEVER ASSEMBLY 000

(537-18140-00-00)

Unavailable

20

BOLT

90109-06239-00

Unavailable

21

SPRING, TENSION (260)

90506-09112-00

Unavailable
