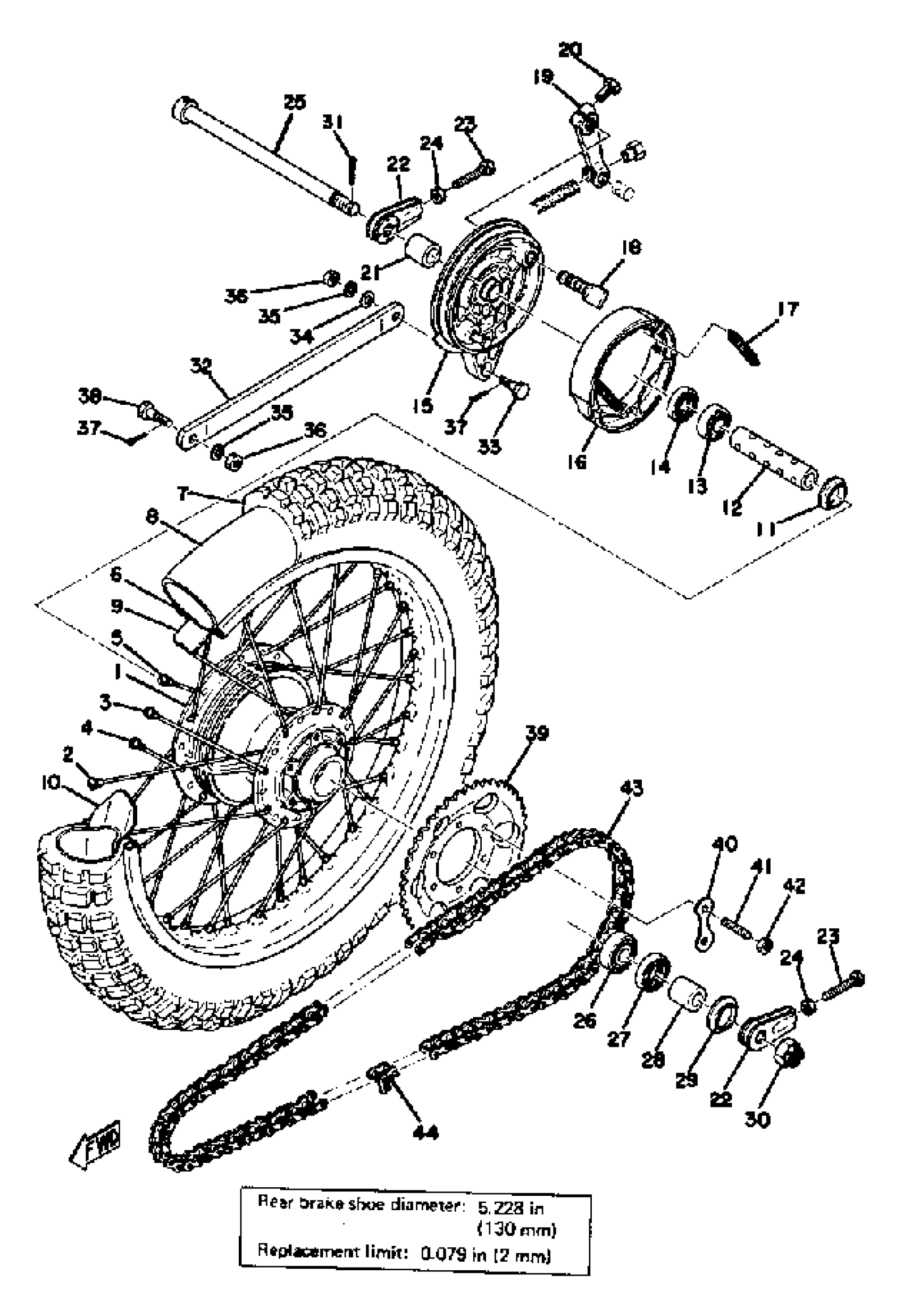

Yamaha YZ125A (YZ125A) 1974 REAR WHEEL YZ125C Diagram

#

Description
Price

1

SPOKE SET, REAR

537-25304-01-00

Unavailable

1

HUB, REAR

(537-25311-01-98)

Unavailable

2

SPOKE SET, INNER 2

(537-25396-90-00)

Unavailable

3

SPOKE SET, OUTER 2

(537-25397-90-00)

Unavailable

4

SPOKE SET, INNER 1

(537-25391-90-00)

Unavailable

5

SPOKE SET, OUTER 1

(537-25392-90-00)

Unavailable

6

RIM 1.85X18

94418-18245-00

Unavailable

7

410X18 DUN SR SPRT

(94141-18171-00)

Unavailable

8

TUBE (2RH)

94232-18113-00

$29.99

9

BAND, RIM (2J4)

94340-18086-00

$17.99

10

SPACER, BEAD

2X3-25394-00-00

Unavailable

11

FLANGE, SPACER

146-25115-00-00

$6.99

12

SPACER(23A)

90560-15312-00

$38.99

13

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

14

OIL SEAL (22X35X5)

93104-22018-00

$11.49

15

PLATE, BRAKE SHOE

(401-25321-00-98)

Unavailable

16

BRAKE SHOE SET-2PCS

183-W2536-00-00

Unavailable

17

SPRING (5T9)

90506-17328-00

Unavailable

18

CAMSHAFT

26A-25351-00-00

Unavailable

19

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

20

BOLT, HEXAGON

97017-06020-00

Unavailable

21

COLLAR

90387-15115-00

Unavailable

22

PULLER, CHAIN

248-25388-00-00

Unavailable

23

BOLT

90101-08060-00

Unavailable

24

. NUT

95380-08700-00

Unavailable

25

AXLE, WHEEL

537-25381-00-00

Unavailable

26

BEARING

93306-30212-00

Unavailable

27

SEAL,OIL

93106-26005-00

Unavailable

28

COLLAR (401-25377-00)

90387-15424-00

Unavailable

29

UNAVAILABLE IN PRICE BOOK

401-25867-00-00

Unavailable

30

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

31

PIN, COTTER

91490-30030-00

Unavailable

32

BAR, TENSION

(537-25371-00-00)

Unavailable

33

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

34

WASHER, PLAIN

92990-08200-00

Unavailable

35

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

36

. NUT

95380-08700-00

Unavailable

37

PIN, COTTER

91490-20025-00

Unavailable

38

BOLT 1092537300

90109-08063-00

Unavailable

39

SPROCKET, DRIVN 45T

537-25445-00-00

Unavailable

39

SPROCKET, DRIVN 47T

537-25447-00-00

Unavailable

39

SPROCKET, DRIVN 49T

(537-25449-00-00)

Unavailable

40

WASHER

537-25412-00-00

Unavailable

41

BOLT, STUD (537 HUB)

90116-10221-00

Unavailable

42

NUT (682)

95380-10700-00

Unavailable

43

428HD 110L

(94574-28110-00)

Unavailable

44

CHAIN JOINT

(94680-06031-00)

Unavailable
