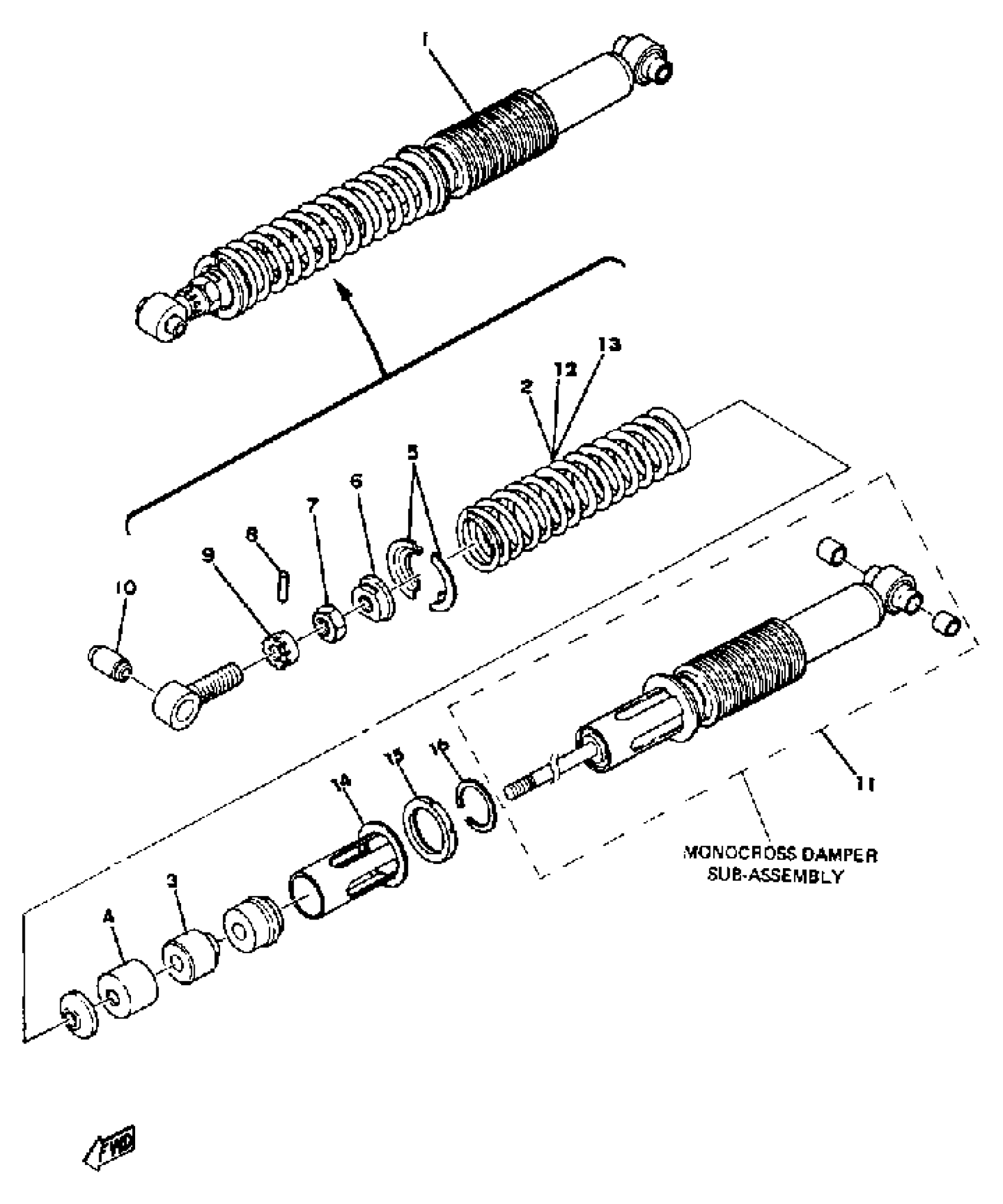

Yamaha YZ125A (YZ125A) 1974 REAR CUSHION YZ125D Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REAR

(1W1-22210-00-00)

Unavailable

2

SPRING, COMPRESSION

(90501-98466-00)

Unavailable

3

BUMP, STOP

(1W1-22493-00-00)

Unavailable

4

COVER

(1W1-22221-00-00)

Unavailable

5

GUIDE, SPRING 1

(1W1-22214-00-00)

Unavailable

6

SEAT, SPRING UPPER

(1W1-22213-00-00)

Unavailable

7

NUT, HEXAGON (29L)

90170-20320-00

$15.99

8

. PIN, DOWEL

93604-26132-00

Unavailable

9

NUT, ADJUSTING

(1W1-22497-00-00)

Unavailable

10

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

Unavailable

11

DAMPER SUB-ASSEMBLY.

(1W1-22401-00-00)

Unavailable

12

SPRING, COMPRESSION

(90501-98477-00)

Unavailable

13

SPRING, COMPRESSION

(90501-98478-00)

Unavailable

14

GUIDE, SPRING 2

(1W1-22224-00-00)

Unavailable

15

SEAT, SPRING LOWER

(1W1-22223-00-00)

Unavailable

16

CIRCLIP, OUTER

(93440-50058-00)

Unavailable
