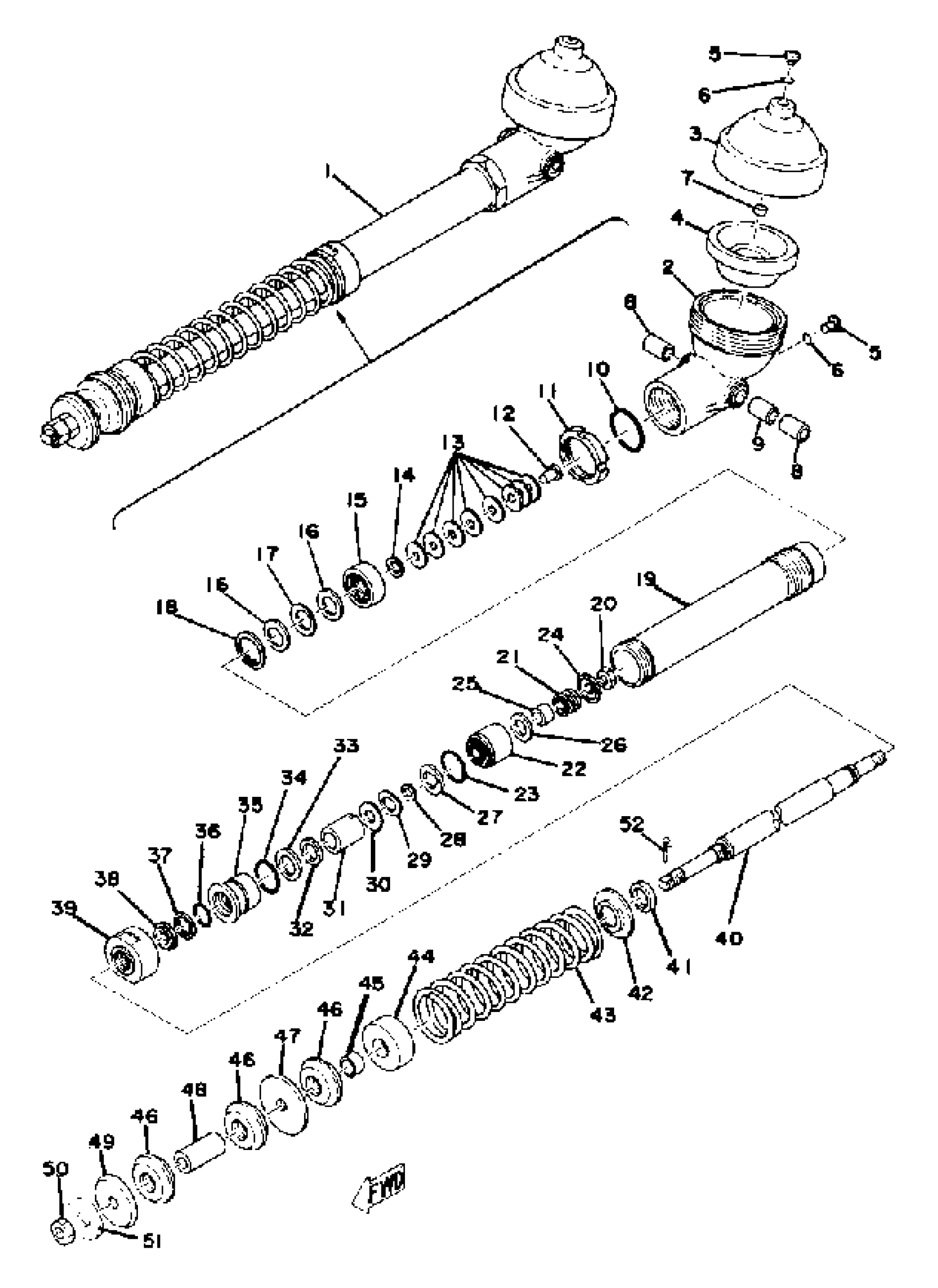

Yamaha YZ125A (YZ125A) 1974 REAR CUSHION YZ125C Diagram

#

Description

Price

1

. VALVE SUB ASSEMBLY, BTM

509-22405-00-00

Unavailable

1

SHK/ABS ASSEMBLY, REAR

(537-22210-00-00)

Unavailable

2

HOUSING, MEMBRANE

(483-22411-01-00)

Unavailable

2

. VALVE SUB ASSEMBLY, BTM

509-22405-00-00

Unavailable

3

CAP, HOUSING

(483-22412-00-00)

Unavailable

4

MEMBRANE

(483-22413-02-00)

Unavailable

5

SCREW, BIND(2TV)

98980-06008-00

$3.19

6

O-RING (26H)

93210-06632-00

$8.49

7

. VALVE, RUBBER

483-22419-01-00

Unavailable

8

BUSH, BIMETAL SOLID

(90382-12019-00)

Unavailable

9

. COLLAR (122-148-26)

90387-12493-00

Unavailable

10

O-RING (483MXS)

93210-42263-00

Unavailable

11

NUT, SPECIAL SHAPE

(90179-44068-00)

Unavailable

19

CYLINDER, SHOCK ABS

(509-22471-01-00)

Unavailable

20

NUT, SELF LOCKING (23X)

90185-12119-00

$11.49

21

SPRING, COMPRESSION

(90501-29327-00)

Unavailable

22

PISTON, SHOCK ABS

(483-22431-00-00)

Unavailable

23

. O-RING

93210-31264-00

Unavailable

30

WASHER, PLATE

(90201-12525-00)

Unavailable

31

STOPPER

(509-22482-01-00)

Unavailable

32

SPACER

(90560-18143-00)

Unavailable

33

DAMPER 1

(483-22483-02-00)

Unavailable

34

. O-RING

93210-31264-00

Unavailable

35

HOUSING, SEAL RING

(483-22473-00-00)

Unavailable

36

O-RING (122)

93210-23029-00

Unavailable

37

OIL SEAL, SO-TYPE

(93104-22052-00)

Unavailable

38

. OIL SEAL, SD-TYPE (SD-22-30-55)

93102-22141-00

Unavailable

39

CAP, CASE

(483-22472-01-00)

Unavailable

40

ROD, PISTON

(509-22481-01-00)

Unavailable

41

. WASHER, PLATE

90202-22091-00

Unavailable

42

GUIDE, SPRING 1

(483-22214-01-00)

Unavailable

43

UNAVAILABLE IN PRICE BOOK

510-20000-00-0

Unavailable

43

SPRING, COMPRESSION

(90501-80362-00)

Unavailable

43

SPRING, COMPRESSION

(90501-80364-00)

Unavailable

43

SPRING, COMPRESSION

(90501-80365-00)

Unavailable

43

SPRING, COMPRESSION

90501-80366-00

Unavailable

43

SPRING, COMPRESSION

(90501-80367-00)

Unavailable

43

SPRING, COMPRESSION

(90501-80368-00)

Unavailable

44

SEAT, SPRING UPPER

(509-22213-01-00)

Unavailable

45

COLLAR

(90387-16477-00)

Unavailable

46

. DAMPER 2

483-22492-01-00

Unavailable

47

. NUT, SPECIAL SHAPE

90179-16189-00

Unavailable

48

. COLLAR (142-22-48)

90387-14274-00

Unavailable

49

WASHER, SPEC''L SHAP

(90209-14059-00)

Unavailable

50

NUT(6TC)

95337-14600-00

Unavailable

51

WASHER, PLATE(3FC)

90201-142M6-00

Unavailable

52

PIN COTTER

91490-30025-00

Unavailable

52

PIN, COTTER

91490-20025-00

Unavailable
