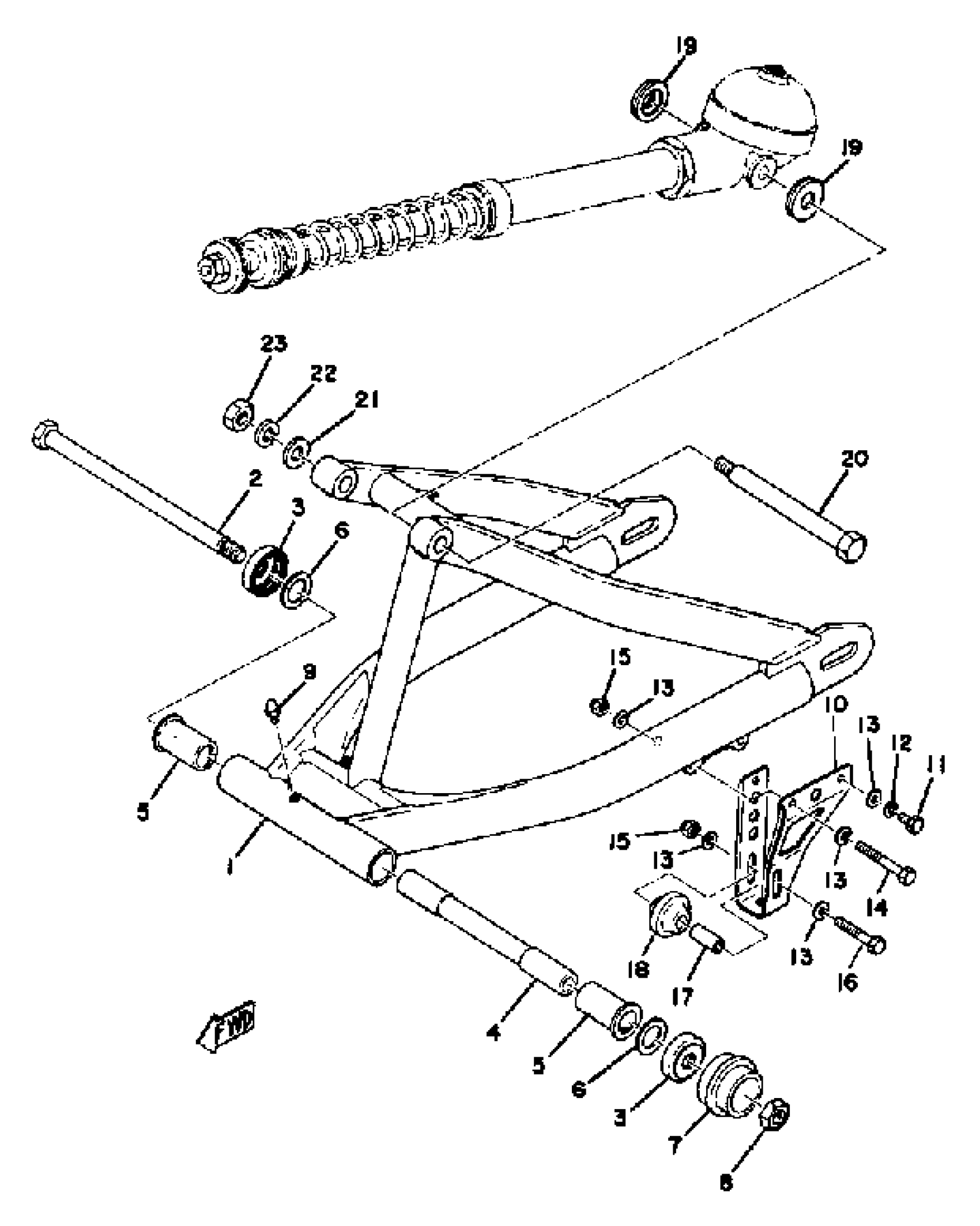

Yamaha YZ125A (YZ125A) 1974 REAR ARM YZ125C Diagram

#

Description
Price

1

REAR ARM

(537-22110-00-33)

Unavailable

2

SHAFT, PIVOT

537-22141-01-00

Unavailable

3

COVER, THRUST 1

401-22128-01-00

$29.99

4

BUSH 2

18G-22124-00-00

Unavailable

5

BUSHING (401-22123-00)

90386-18028-00

$26.99

6

SHIM

401-22127-00-00

$7.99

7

SEAL, GUARD

537-22151-00-00

Unavailable

8

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

9

NIPPLE, GREASE

93700-06005-00

$12.49

10

GUARD, CHAIN

401-22153-00-33

Unavailable

11

BOLT (661)

97013-06012-00

$5.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

BOLT (682)

97095-06040-00

Unavailable

17

SPACER (322-22137-00)

90560-06003-00

Unavailable

18

TENSIONER

322-22178-00-00

Unavailable

19

COVER, THRUST 1

483-22128-00-00

Unavailable

20

BOLT

90109-08300-00

Unavailable

21

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

23

NUT(6L2)

95333-08600-00

Unavailable
