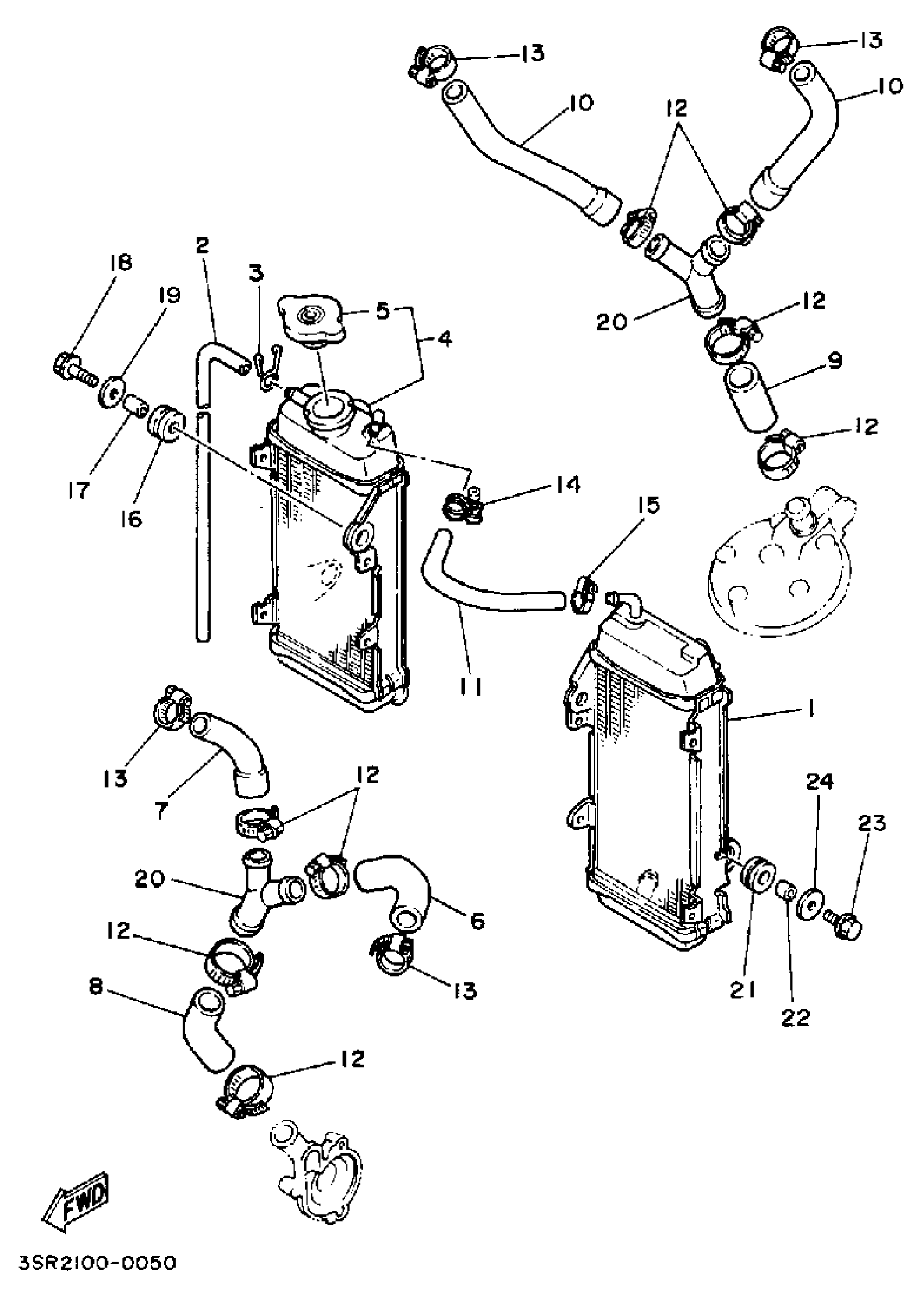

Yamaha YZ125A (YZ125A) 1974 RADIATOR - HOSE Diagram

#

Description
Price

1

RADIATOR ASSEMBLY 2

3JD-1240A-00-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

3

CLIP

90467-090A2-00

$4.41

4

RADIATOR ASSY 2

3XP-12461-00-00

Unavailable

5

CAP, RADIATOR

4FL-12462-00-00

$62.99

6

PIPE 2

3JD-12482-00-00

Unavailable

7

PIPE 3

3JD-12483-00-00

Unavailable

8

PIPE 1

3JD-12481-01-00

Unavailable

9

PIPE 3

3AK-12483-00-00

Unavailable

10

PIPE 6

3JD-12476-00-00

Unavailable

11

PIPE 8

4JW-1248A-00-00

Unavailable

12

HOSE CLAMP ASSY

90450-28001-00

$14.99

13

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

14

HOSE CLAMP ASSEMBLY

90450-15041-00

Unavailable

15

HOSE CLAMP ASSY(62T)

90450-14M05-00

$17.99

16

GROMMET(663)

90480-15064-00

Unavailable

17

COLLAR(2UJ)

90387-061V1-00

Unavailable

18

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

19

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable

20

JOINT 1

24X-12469-00-00

Unavailable

21

GROMMET (4L0)

90480-18276-00

Unavailable

22

COLLAR (90387-066J9)

90387-064W1-00

Unavailable

23

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

24

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable
