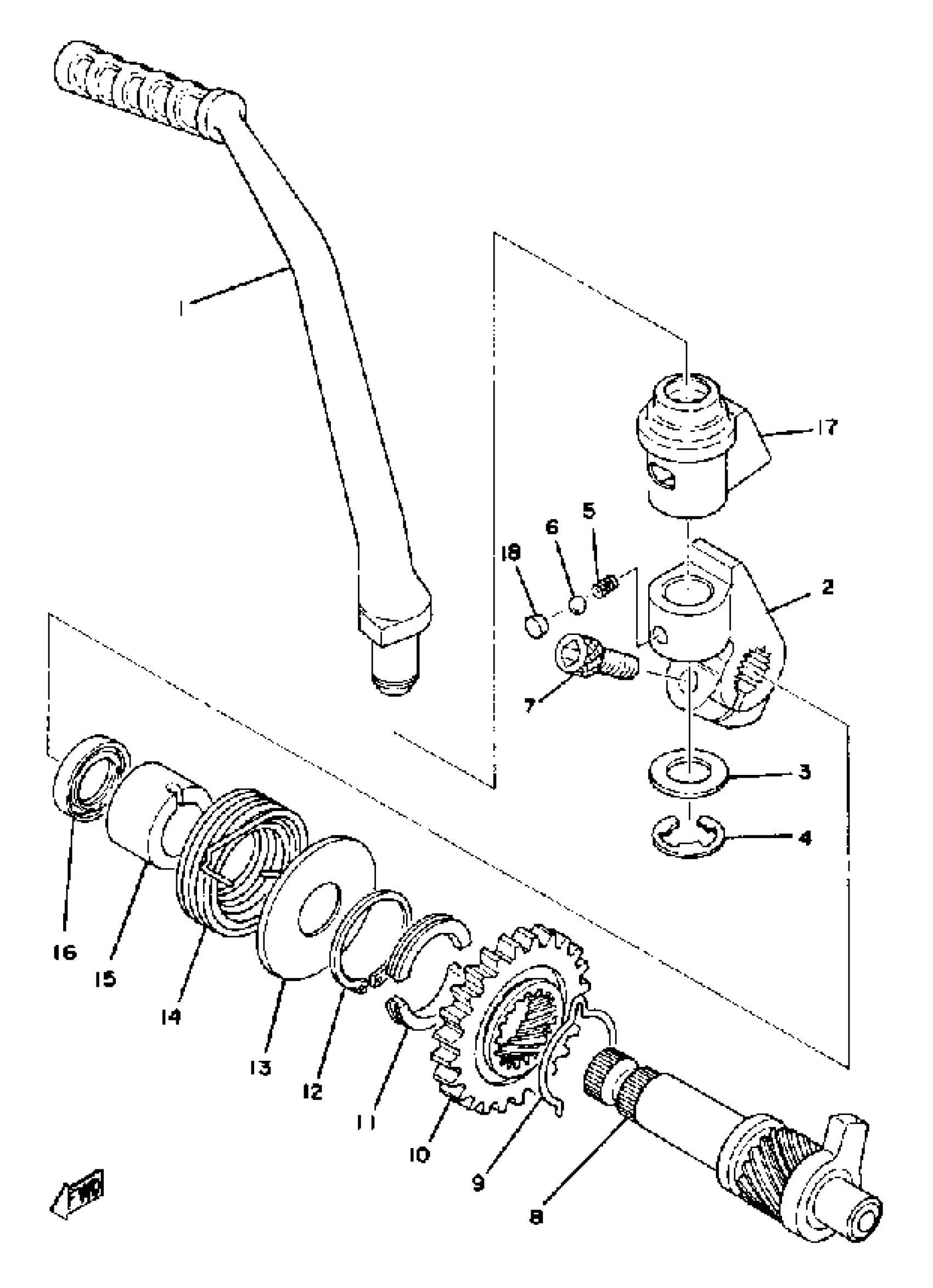

Yamaha YZ125A (YZ125A) 1974 KICK - STARTER YZ125D Diagram

#

Description
Price

1

KICK CRANK ASSEMBLY (1W1-15611-02-33)

1W1-15620-01-00

Unavailable

2

BOSS, KICK CRANK

1W1-15621-01-00

Unavailable

3

WASHER, PLATE (525)

90201-12541-00

$7.49

4

CIRCLIP (137)

93430-08007-00

$8.49

5

SPRING, COMPRESSION (1W1)

90501-10459-00

$7.49

6

BALL

93503-16003-00

$2.72

7

BOLT, SOCKET

91317-08025-00

$8.49

8

KICK AXLE ASSEMBLY

1W1-15660-00-00

Unavailable

9

CLIP 315156870000

90468-26048-00

$8.49

10

GEAR, KICK

1W1-15641-00-00

Unavailable

11

HOLDER, KICK GEAR

248-15654-00-00

$8.99

12

CIRCLIP(4A6)

99009-30400-00

$8.49

13

COVER, SPRING

401-15676-00-00

$7.99

14

SPRING, TORSION (1W1)

90508-26346-00

Unavailable

15

SPACER, KICK AXLE SPRING

1W1-15666-00-00

$16.49

16

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

17

COVER, KICK CRANK BOSS

1W1-15618-01-00

Unavailable

18

PLUG, TAPER

90336-06030-00

Unavailable
