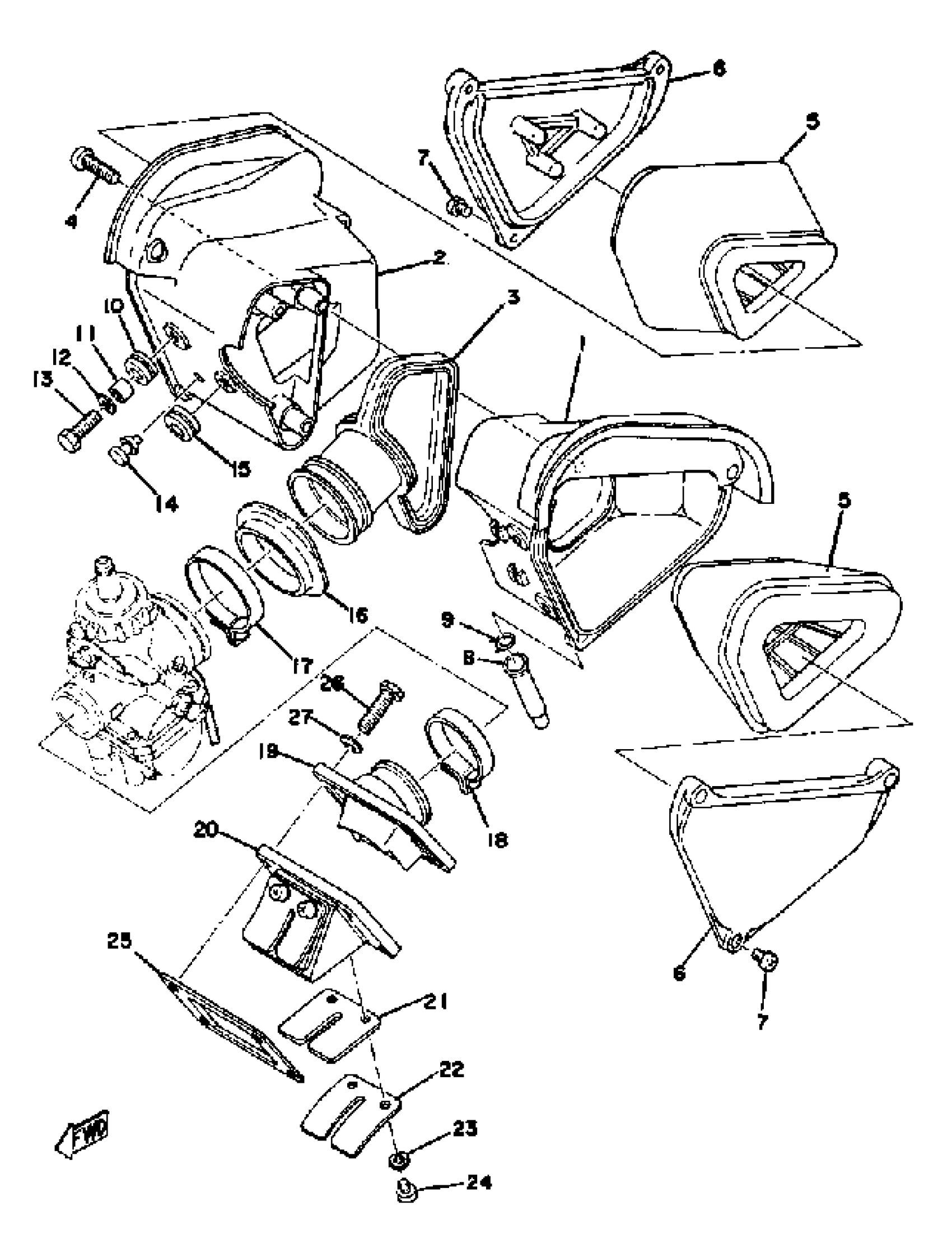

Yamaha YZ125A (YZ125A) 1974 INTAKE YZ125C Diagram

#

Description

Price

1

CASE, AIR CLEANER 1

(2K5-14411-00-00)

Unavailable

2

CASE, AIR CLEANER 2

(2K5-14421-00-00)

Unavailable

3

JOINT, AIR CLEANER 1

(537-14453-00-00)

Unavailable

4

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

5

ELEMENT, AIR CLNR (537-14450-00)

537-14451-00-00

Unavailable

6

CAP, CLEANER CASE 1

537-14412-00-00

Unavailable

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

SEAL (509-14457-01)

509-14457-00-00

Unavailable

9

CLIP (371)

90467-14015-00

$8.49

10

GROMMET 839774310000

90480-14023-00

$7.49

11

COLLAR 437216330000

90387-07391-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

GROMMET

(90480-05169-00)

Unavailable

15

GROMMET

90480-20170-00

Unavailable

16

COVER 1

537-14417-00-00

Unavailable

17

BAND

90460-54062-00

Unavailable

18

CLAMP, HOSE (5H0)

90460-43179-00

Unavailable

19

JOINT, CARBURETOR

537-13565-01-00

Unavailable

20

REED VALVE ASSY

10V-13610-01-00

Unavailable

21

REED VALVE 1

10V-13613-01-00

Unavailable

22

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

Unavailable

23

WASHER, SPRING

92990-03100-00

Unavailable

24

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

25

GASKET, VALVE SEAT

3TT-13621-00-00

Unavailable

26

BOLT, HEXAGON

97017-06025-00

$4.24

27

WASHER, SPRING

92995-06100-00

Unavailable
