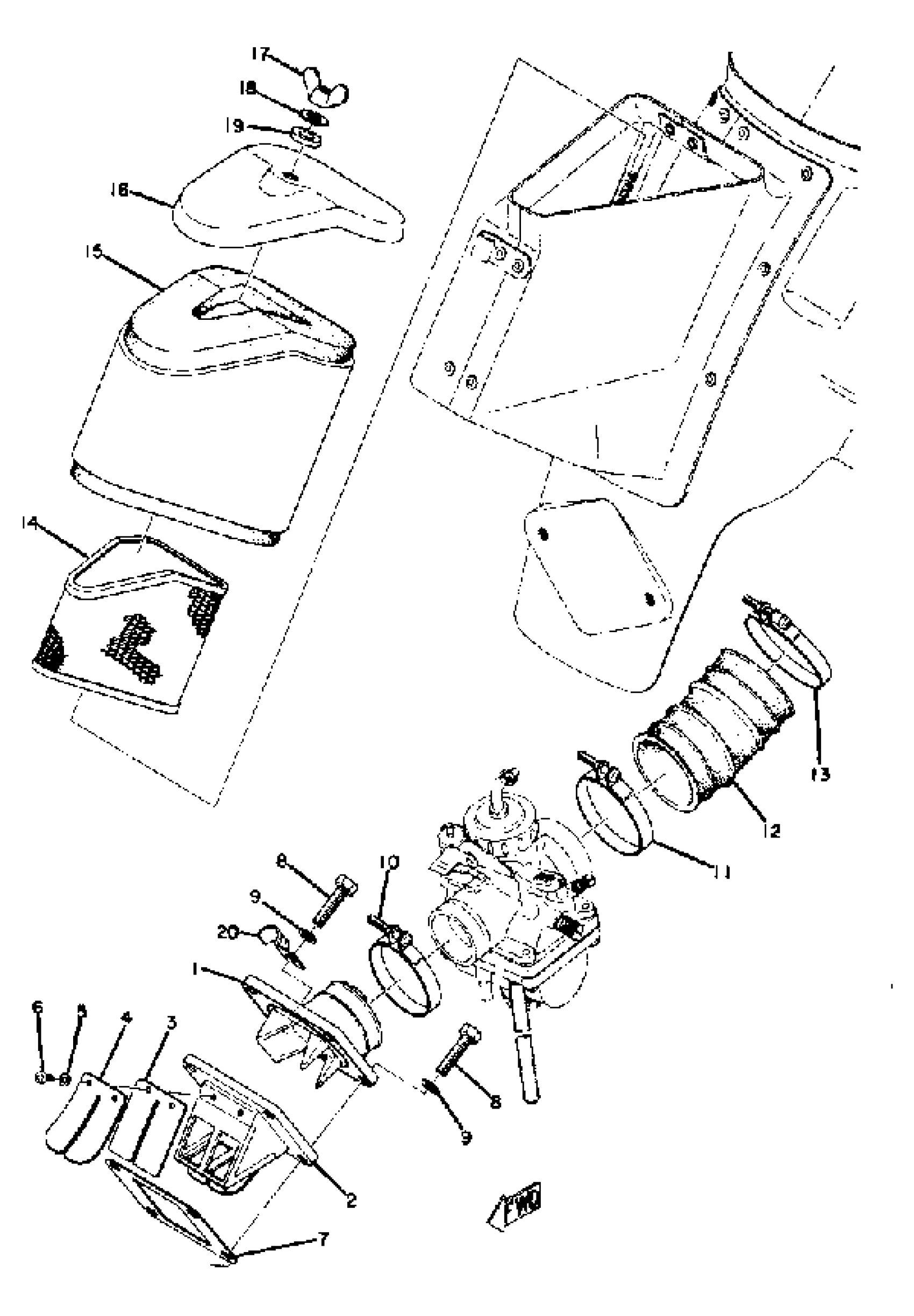

Yamaha YZ125A (YZ125A) 1974 INTAKE YZ125A - B Diagram

#

Description
Price

1

JOINT, CARBURETOR

401-13565-01-00

Unavailable

2

REED VALVE ASSY

345-13610-20-00

$228.99

3

. REED, VALVE (401-13613-00)

2R9-13613-00-00

Unavailable

4

. STOPPER, REED VALVE

345-13616-70-00

Unavailable

5

WASHER, SPRING

92990-03100-00

$8.49

6

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

7

GASKET, VALVE SEAT

87A-13621-00-00

$8.99

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92995-06100-00

Unavailable

10

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

11

CLAMP HOSE 278144550000

90460-49058-00

$7.49

11

CLAMP HOSE 304144550000

90460-51059-00

$16.99

12

JOINT, AIR CLNR 1

401-14453-00-00

Unavailable

13

BAND

90460-54062-00

Unavailable

14

GUIDE, ELEMENT

(401-14458-00-00)

Unavailable

15

ELEMENT, AIR CLNR

401-14451-00-00

Unavailable

16

CAP, CLEANER CASE 1

(401-14412-00-00)

Unavailable

17

NUT, WING (646)

90175-06008-00

Unavailable

18

WASHER, PLATE 1412342700

90202-06008-00

Unavailable

19

WASHER, PLATE

90201-06061-00

Unavailable

20

GASKET KIT YZ125A

(402-W0001-00-00)

Unavailable

20

CLAMP 363154850100

90462-05005-00

Unavailable
