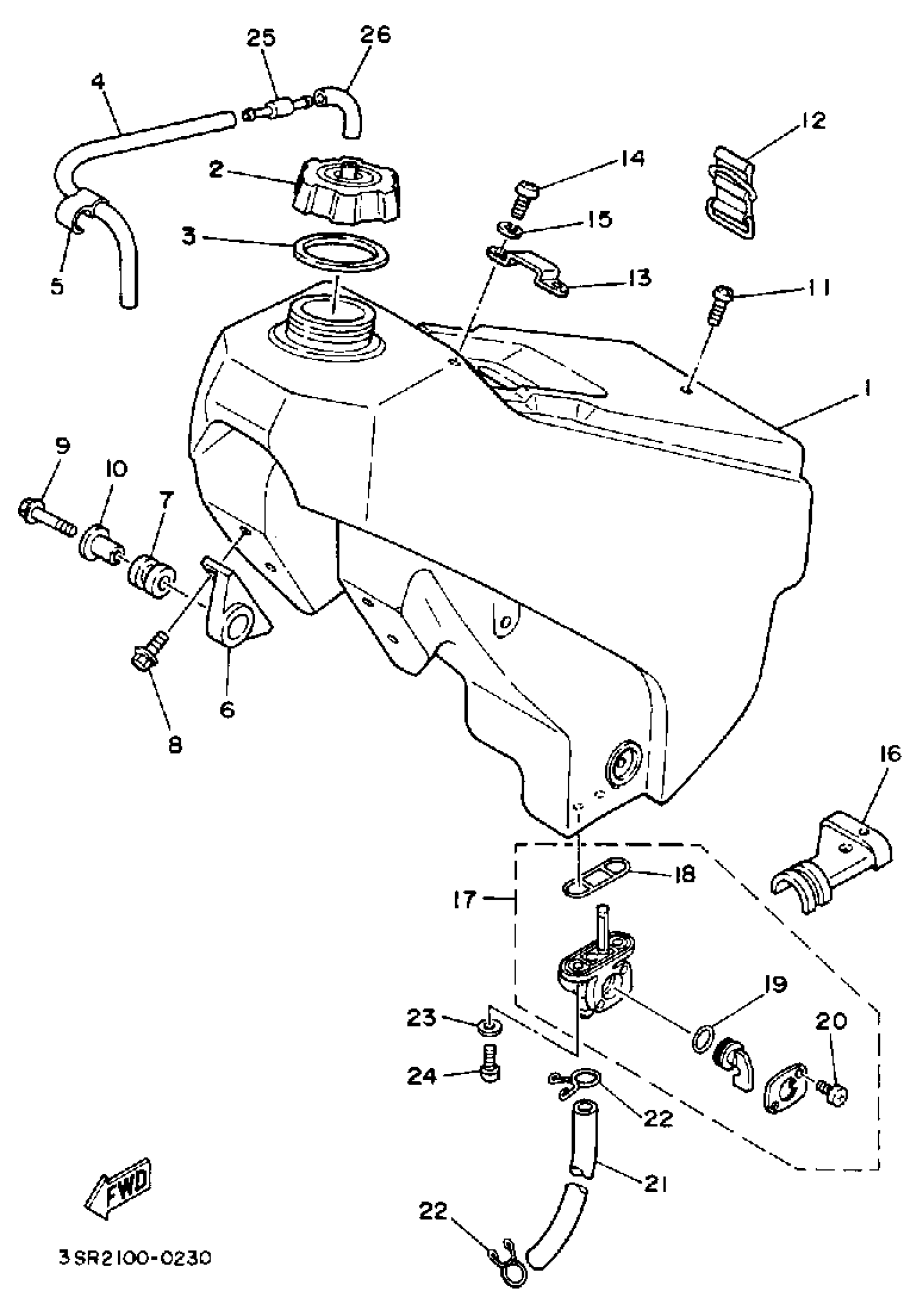

Yamaha YZ125A (YZ125A) 1974 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3XJ-24110-01-00

Unavailable

2

BODY, CAP

5X7-24611-01-00

Unavailable

3

PACKING, CAP

5X7-24612-00-00

Unavailable

4

HOSE (L420)

90445-092K1-00

$12.49

5

CLIP (1E6)

90468-15064-00

Unavailable

6

HOLDER, DAMPER

5XE-24144-00-00

$23.99

7

GROMMET(4AA)

90480-18549-00

$10.49

8

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

9

BOLT, FLANGE(4BH)

95024-06035-00

$9.49

10

WASHER, SPECIAL

3JD-24186-00-00

$13.49

11

SCREW, BIND (J17)

98980-06020-00

$8.49

12

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

13

BRACKET, SEAT

5X6-2412F-00-00

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

DAMPER, LOCATING 1

1LX-24181-00-00

Unavailable

17

FUEL COCK ASSY 1

3JD-24500-20-00

Unavailable

18

O-RING

4X8-24512-00-00

Unavailable

19

O-RING

4X8-24534-00-00

Unavailable

20

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

21

HOSE (L198)

90445-11293-00

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

SCREW 256241430000

90149-06011-00

Unavailable

25

PIPE JOINT ASSEMBLY

4A0-24380-00-00

Unavailable

26

HOSE (L420)

90445-092K1-00

$12.49
