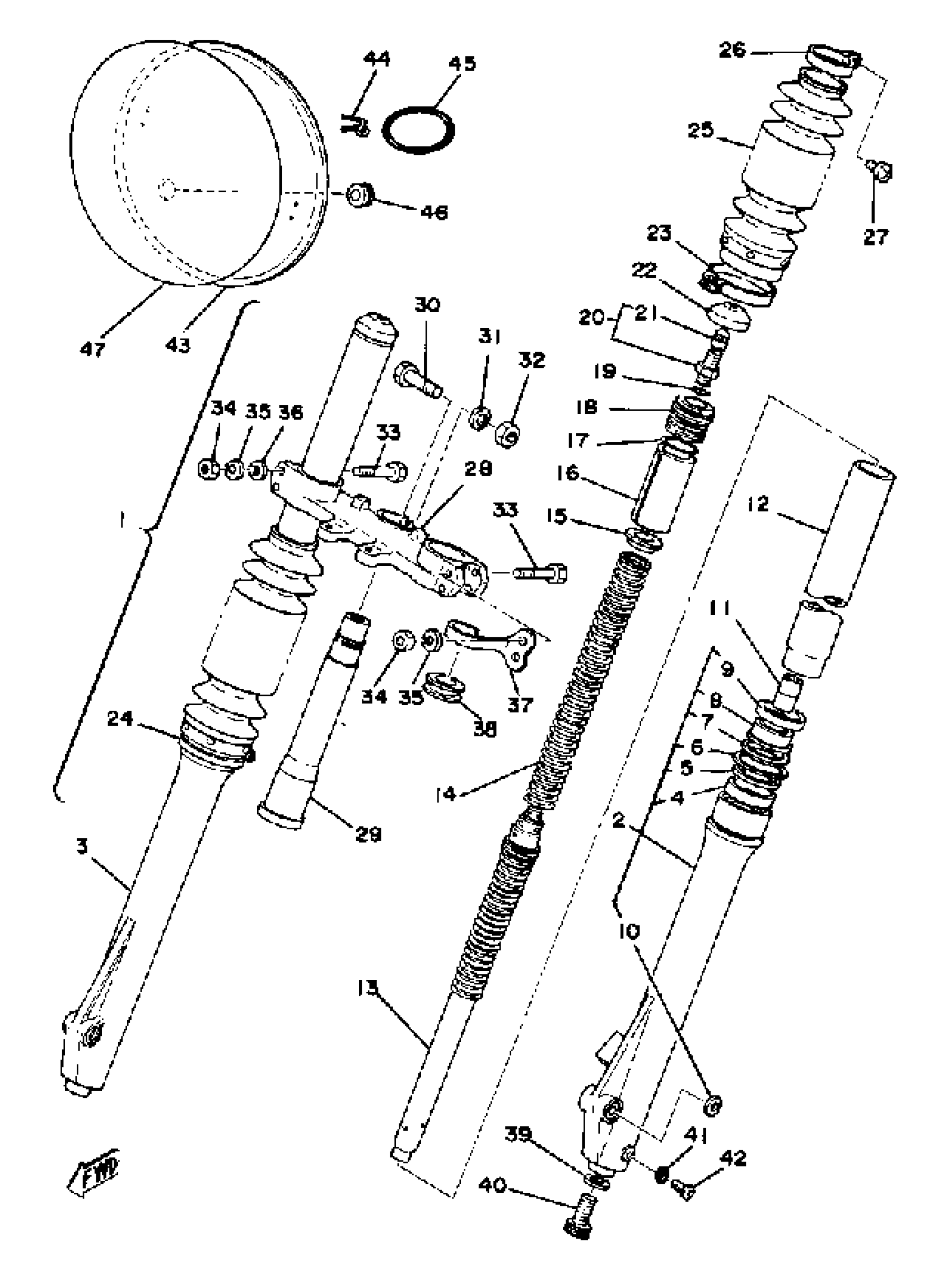

Yamaha YZ125A (YZ125A) 1974 FRONT FORK YZ125D Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(2K6-23101-L0-00)

Unavailable

2

TUBE, OUTER 1

(1W1-23126-L0-00)

Unavailable

3

TUBE, OUTER 2

(1W1-23136-L0-00)

Unavailable

4

OIL SEAL

48Y-23145-00-00

$30.99

5

WASHER, OIL SEAL

(509-23146-L0-00)

Unavailable

6

.. CLIP, OIL SEAL

1W1-23156-L0-00

Unavailable

7

.. RING, SNAP

1W1-23153-L0-00

Unavailable

8

SEAL, DUST

1G8-23144-L1-00

$25.99

9

.. COVER, DUST SEAL

99999-01510-00

Unavailable

10

.. CAP, FRONT FORK

1W1-23168-L0-00

Unavailable

11

TAPER SPINDLE

1W1-23173-L0-00

$31.99

12

INNER TUBE 1

(1W1-23110-L0-00)

Unavailable

13

CYLINDER, FRTFRK

(1W1-23170-L0-00)

Unavailable

14

SPRING, FRONT FORK

(1W1-23141-10-00)

Unavailable

14

SPRING, FRONT FORK

(1W1-23141-20-00)

Unavailable

14

SPRING, FRONT FORK

(1W1-23141-L0-00)

Unavailable

15

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

16

SPACER

(1W1-23118-L0-00)

Unavailable

17

O-RING

1W1-23114-L0-00

Unavailable

18

. BOLT, CAP

1W1-23111-L0-00

Unavailable

19

. O-RING

509-23163-L0-00

Unavailable

20

. AIR VALVE

509-23190-L0-00

Unavailable

21

CAP, AIR VALVE

509-23184-L0-00

Unavailable

22

. COVER, VALVE

1W1-23185-L0-00

Unavailable

23

HOLDER, CABLE 1

1W1-23318-L0-00

Unavailable

24

BAND

509-23489-L0-00

Unavailable

25

BOOT, FRONT FORK

(1W1-23191-L0-00)

Unavailable

26

BAND, BOOT

341-92090-60-00

Unavailable

27

SCREW

509-23194-L0-00

Unavailable

28

. UNAVAILABLE IN PRICE BOOK

1W1-23345-L0-35

Unavailable

29

SHAFT, STEERING

(1W1-23341-L0-00)

Unavailable

30

BOLT 2

(1W1-23356-L0-00)

Unavailable

31

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

32

NUT

(322-23357-00-00)

Unavailable

33

BOLT (1E6)

90101-08340-00

Unavailable

34

NUT, HEXAGON

(90170-08180-00)

Unavailable

35

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

36

.. WASHER, PLATE

92990-08600-00

Unavailable

37

. HOLDER, CABLE

1W1-23317-01-00

Unavailable

38

GUIDE, WIRE

1W1-23389-00-00

Unavailable

39

GASKET

509-23158-L0-00

Unavailable

40

. BOLT, HEX SCKT HEAD

1T3-23181-50-00

Unavailable

41

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

42

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

43

PLATE, NUMBER

322-23485-00-00

Unavailable

44

STAY, PLATE

431-23486-02-00

Unavailable

45

O-RING (3.0-69.0)

93210-69355-00

Unavailable

46

GROMMET (1W1)

90480-17213-00

Unavailable

47

EMBLEM

322-23395-00-00

Unavailable
