- YZ125A (YZ125A) 1974
FRONT FORK YZ125C

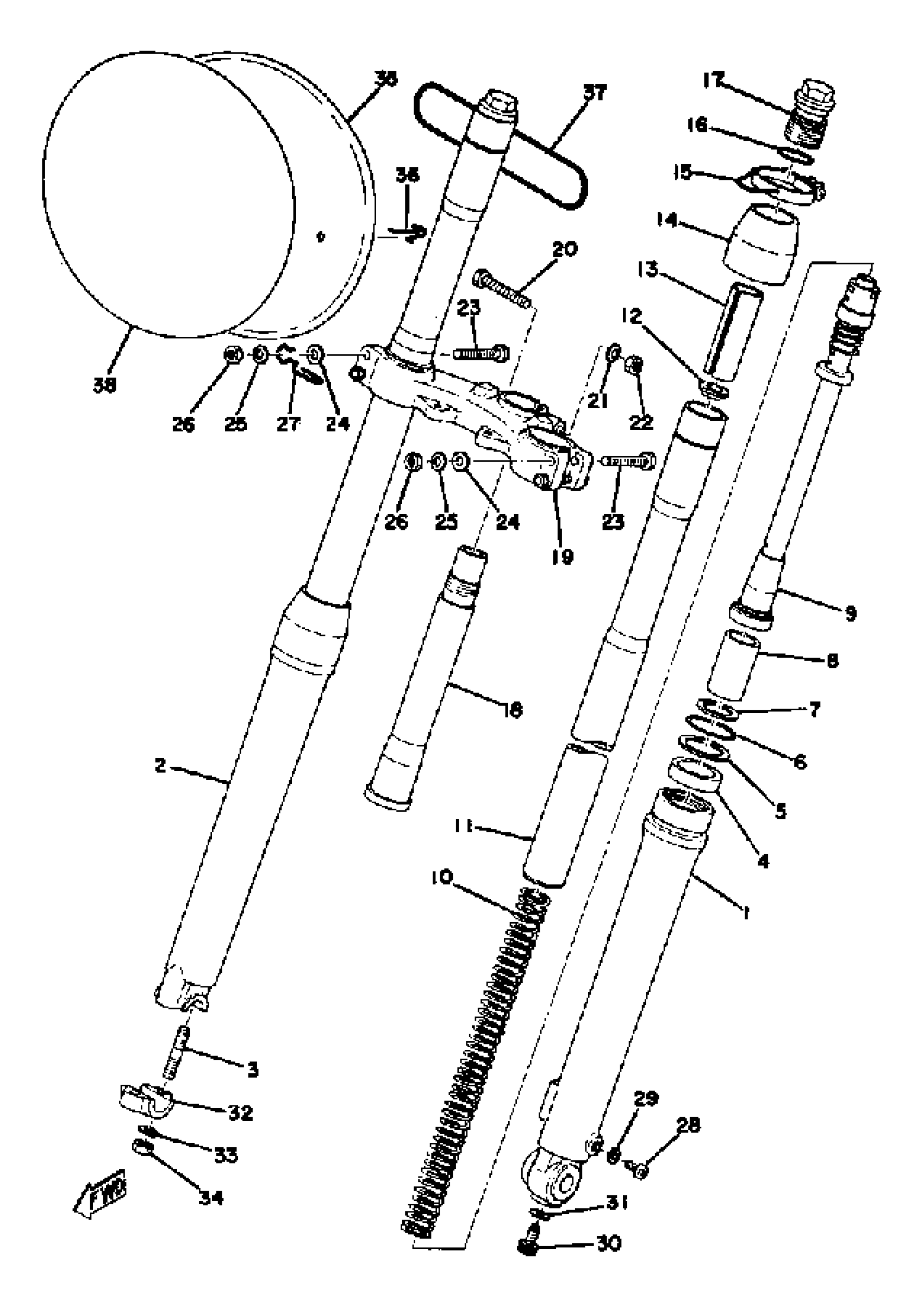

Yamaha YZ125A (YZ125A) 1974 FRONT FORK YZ125C Diagram
#
1
. UNAVAILABLE IN PRICE BOOK
498-23146-00-00
Unavailable
1
FRONT FORK ASSEMBLY
(509-23101-01-00)
Unavailable
2
TUBE, OUTER 2
(498-23136-00-00)
Unavailable
5
.. WASHER, OIL SEAL
214-23146-00-00
Unavailable
6
.. CLIP, OIL SEAL
214-23156-00-00
Unavailable
7
. CIRCLIP, INNER
93450-30033-00
Unavailable
8
PISTON, FRONT FORK
(509-23171-00-00)
Unavailable
9
CYLINDER, FRONT FORK
(509-23170-01-00)
Unavailable
10
SPRING, FRONT FORK
(509-23141-01-00)
Unavailable
11
TUBE, INNER 1
(509-23124-01-00)
Unavailable
12
. SEAT, SPRING UPPER
278-23142-50-00
Unavailable
13
SPACER
(33Y-23118-00-00)
Unavailable
14
. SEAL, DUST
292-23144-00-00
Unavailable
15
CLAMP, HOSE
(90460-54061-00)
Unavailable
16
. GASKET
214-23114-00-00
Unavailable
17
BOLT, CAP
(291-23111-60-00)
Unavailable
18
SHAFT, STEERING
(1E6-23341-00-00)
Unavailable
19
BOLT 2
(322-23356-00-00)
Unavailable
19
BRACKET, LOWER
(483-23345-00-33)
Unavailable
21
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
22
NUT
(322-23357-00-00)
Unavailable
23
BOLT, HEXAGON
97013-08055-00
Unavailable
24
WASHER, PLATE 1562722600
90201-08083-00
Unavailable
25
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
26
NUT, HEXAGON
(90170-08180-00)
Unavailable
27
HOLDER, CABLE 2
(434-23319-00-00)
Unavailable
28
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
29
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
31
GASKET
509-23158-L0-00
Unavailable
32
. HOLDER, AXLE (291-23167-60)
291-23167-61-00
Unavailable
33
.. WASHER, PLATE
92990-08600-00
Unavailable
34
NUT, HEXAGON
(90170-08176-00)
Unavailable
35
PLATE, NUMBER
322-23485-00-00
Unavailable
36
STAY, PLATE
431-23486-02-00
Unavailable
37
O-RING (802)
93210-99103-00
Unavailable
38
EMBLEM
322-23395-00-00
Unavailable
