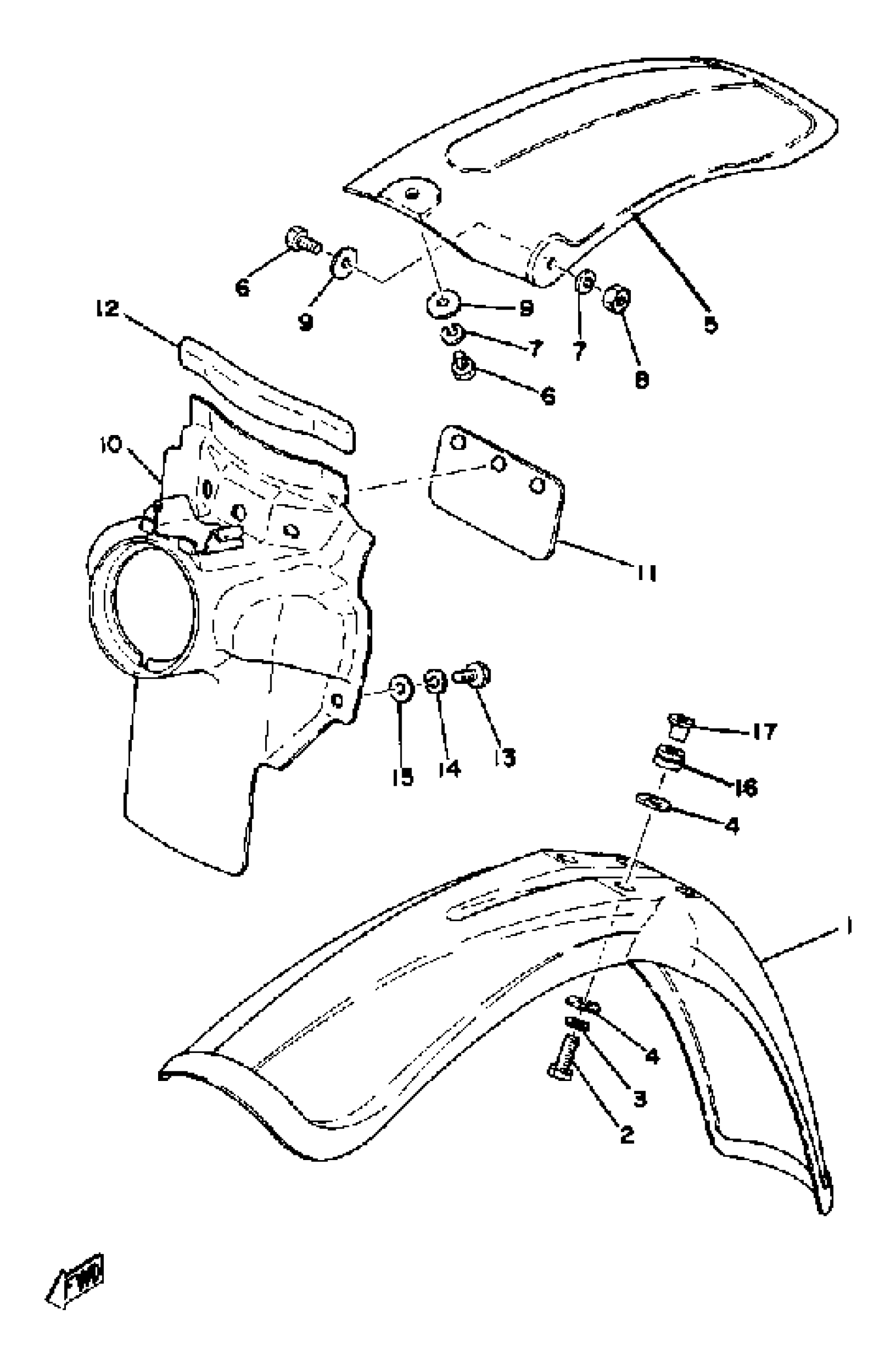

Yamaha YZ125A (YZ125A) 1974 FRONT FENDER - REAR FENDER YZ125D Diagram

#

Description
Price

1

FENDER, FRONT

5X6-21511-01-00

$38.39

2

BOLT, HEXAGON

97017-06025-00

$2.78

3

WASHER, SPRING

92995-06100-00

$2.95

4

WASHER, PLATE

90201-06380-00

$0.54

5

FENDER, REAR (1W1-21611-00)

2K6-21611-00-00

Unavailable

6

BOLT(8CP)

97017-06014-00

$4.91

7

WASHER, SPRING

92995-06100-00

$2.95

8

NUT, HEXAGON

95380-06600-00

$4.11

9

WASHER, PLATE

90201-06380-00

$0.54

10

GUARD, MUD

(1W2-21620-90-00)

Unavailable

11

FLAP

1M1-21621-00-00

$12.80

12

. DAMPER

565-21746-00-00

Unavailable

13

BOLT(8CP)

97017-06014-00

$4.91

14

WASHER, SPRING

92995-06100-00

$2.95

15

WASHER, PLATE

90201-06380-00

$0.54

16

GROMMET

90480-14198-00

Unavailable

17

COLLAR

90387-06158-00

Unavailable
