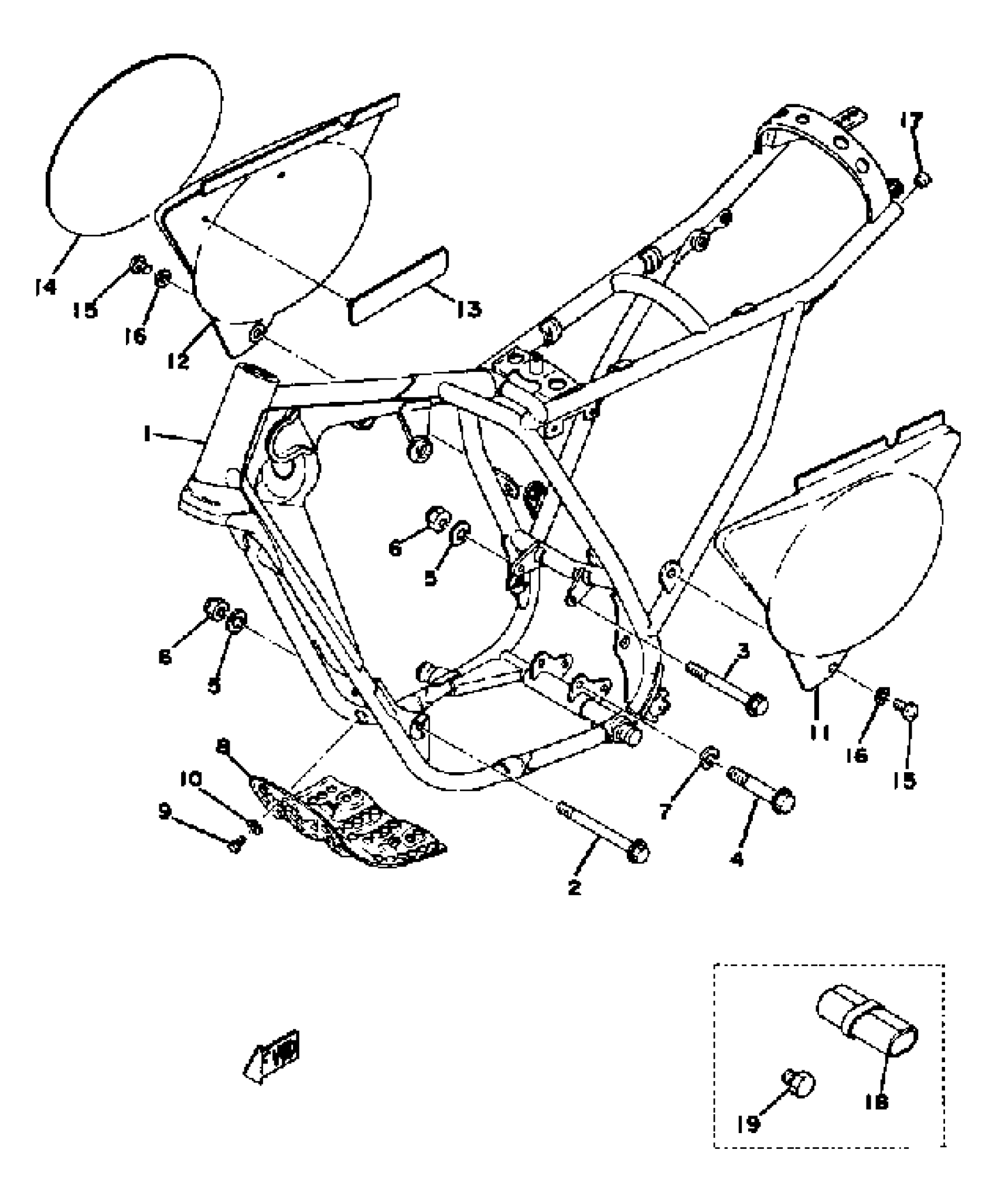

Yamaha YZ125A (YZ125A) 1974 FRAME YZ125C Diagram

#

Description
Price

1

FRAME

(537-21110-02-33)

Unavailable

2

BOLT

90105-08024-00

$6.36

3

BOLT, WASHER BASED (401)

90105-08120-00

$5.84

4

BOLT

90105-10037-00

Unavailable

5

WASHER (401)

90209-08050-00

$7.24

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$6.82

7

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

8

PROTECTOR, ENGINE

(537-21471-00-00)

Unavailable

9

BOLT (661)

97013-06012-00

$4.40

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

COVER, SIDE 1

537-21711-00-00

Unavailable

12

COVER, SIDE 2

537-21721-00-00

Unavailable

13

SEAL 1

537-21732-00-00

Unavailable

14

EMBLEM 7

(401-21787-00-00)

Unavailable

15

SCREW, BIND (705)

98980-06016-00

$6.35

16

WASHER, PLATE

90201-06380-00

Unavailable

17

PLUG, BLIND

(537-25139-00-00)

Unavailable

18

TOOL KIT

(363-28100-10-00)

Unavailable

19

BOLT

(90109-20405-00)

Unavailable
