FRAME - SIDE COVER YZ125A - B

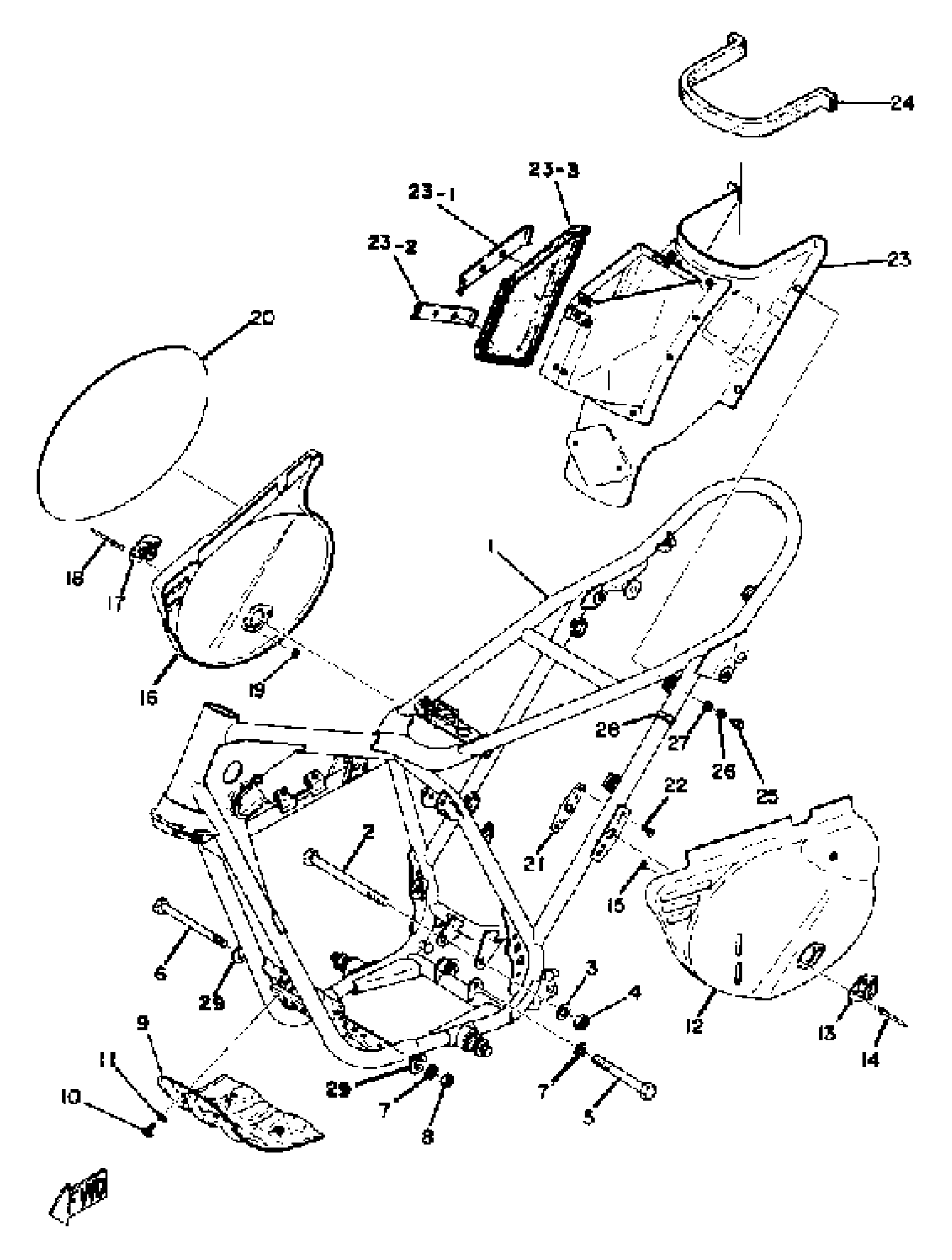

Yamaha YZ125A (YZ125A) 1974 FRAME - SIDE COVER YZ125A - B Diagram
#
1
. PATCH 1
402-21256-00-00
Unavailable
1
FRAME
(453-21110-00-33)
Unavailable
2
PATCH 2
(402-21257-00-00)
Unavailable
2
BOLT
90109-08387-00
Unavailable
3
. SEAL
402-21269-00-00
Unavailable
4
NUT, HEXAGON
90170-08031-00
Unavailable
5
BOLT
90105-10037-00
Unavailable
8
NUT, HEXAGON
90170-08031-00
Unavailable
9
PROTECTOR, ENGINE
(401-21471-00-90)
Unavailable
10
BOLT (661)
97013-06012-00
Unavailable
11
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
12
COVER, SIDE 1
(401-21711-00-02)
Unavailable
12
COVER, SIDE 1
(401-21711-00-03)
Unavailable
13
FASTENER, SIGN
(363-21189-00-00)
Unavailable
14
RIVET,BLIND
90267-40080-00
Unavailable
15
WASHER
90201-04015-00
Unavailable
16
COVER, SIDE 2
(401-21721-00-20)
Unavailable
16
COVER, SIDE 2
(402-21721-00-00)
Unavailable
17
FASTENER, SIGN
(363-21189-00-00)
Unavailable
18
RIVET,BLIND
90267-40080-00
Unavailable
19
WASHER
90201-04015-00
Unavailable
20
EMBLEM 7
(401-21787-00-00)
Unavailable
21
NUT, PLATE
363-21736-00-00
Unavailable
22
SCREW, FLAT
98707-04010-00
Unavailable
23
BOX, AIR CLEANER
(401-21240-02-00)
Unavailable
24
DAMPER
(401-21746-00-00)
Unavailable
25
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
25
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
WASHER, PLATE
90201-06380-00
Unavailable
28
DAMPER, MUFFLER
(276-14747-00-00)
Unavailable
29
WASHER (401)
90209-08050-00
Unavailable
