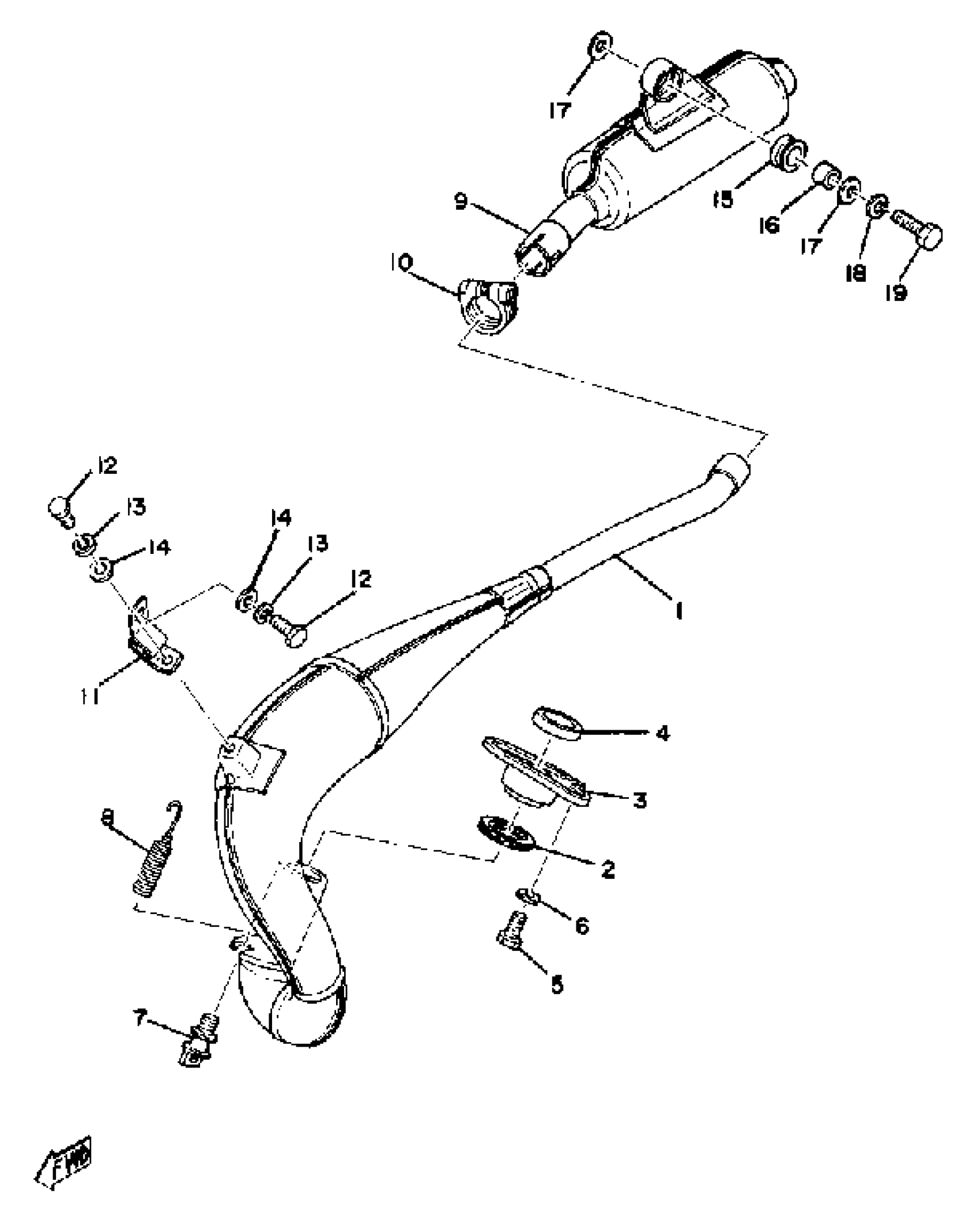

Yamaha YZ125A (YZ125A) 1974 EXHAUST YZ125D Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(1W1-14610-01-00)

Unavailable

2

GASKET

248-14623-10-00

$7.99

3

NUT, RING

2K5-14612-00-00

Unavailable

4

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

WASHER, SPRING

92995-06100-00

Unavailable

7

BOLT, HOOK

409-14684-00-00

Unavailable

8

SPRING,TENSION

90507-20012-00

Unavailable

9

SILENCER, EXHAUST

1W1-14753-01-00

Unavailable

10

BAND, SILENCER

537-14788-00-00

Unavailable

11

STAY, MUFFLER 2

1M1-14772-00-00

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

DAMPER

565-14747-00-00

Unavailable

16

COLLAR (437)

90387-08258-00

Unavailable

17

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

BOLT, HEXAGON

97013-08030-00

Unavailable
