1974 Yamaha YZ125A (YZ125A) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1974 Yamaha YZ125A (YZ125A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

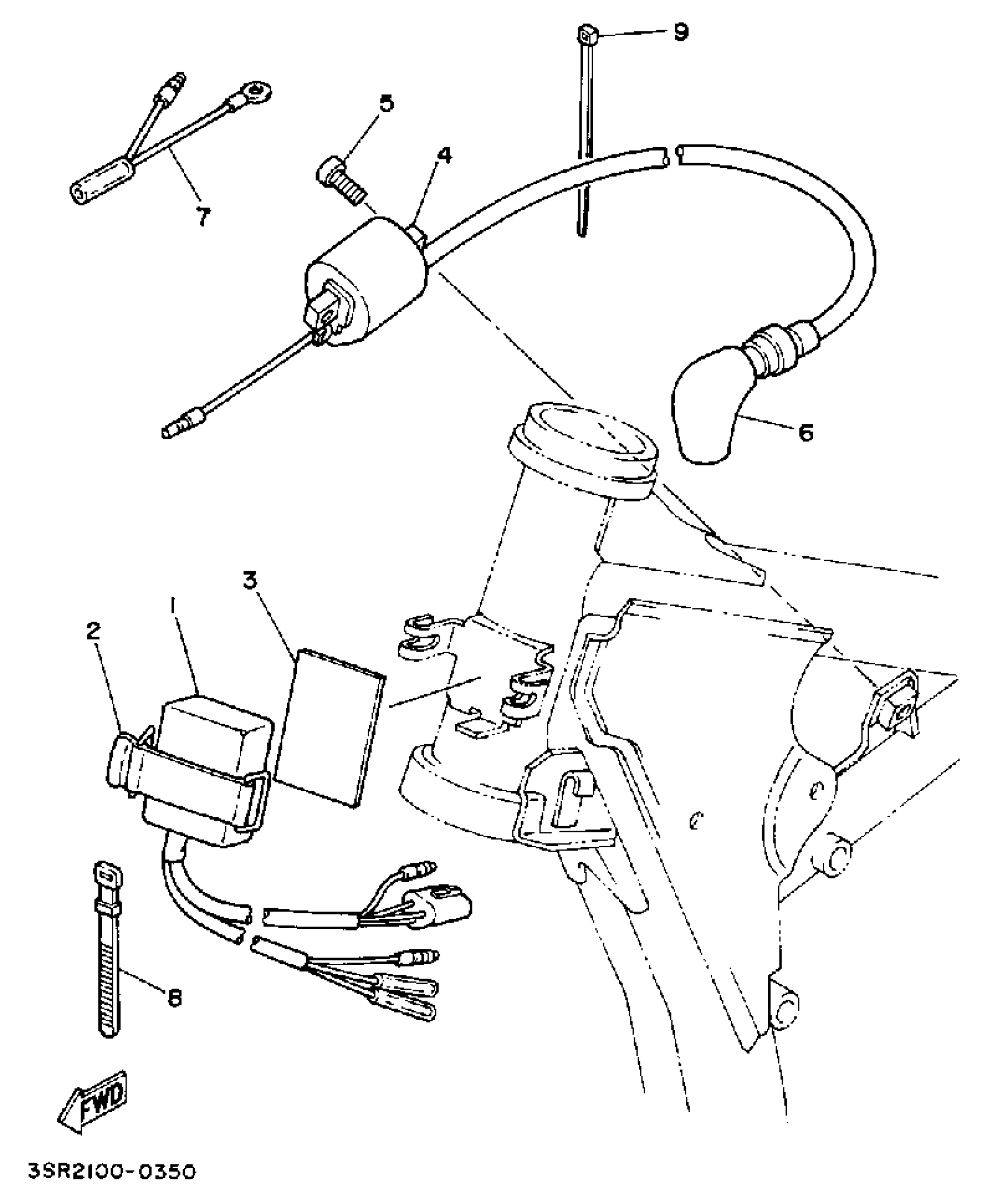

1974 Yamaha YZ125A (YZ125A) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

3SR-85540-10-00

1
Out of stock

2

BAND, TOOL

21V-21376-00-00

1

$6.38

In stock

3

DAMPER

3RB-85547-01-00

1
Out of stock

4

IGNITION COIL ASSY

3SR-82310-10-00

1
Out of stock

5

SCREW, PAN

98507-06014-00

1

$6.18

In stock

6

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

6

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

7

WIRE, EARTH LEAD

5X1-82519-01-00

1
Out of stock

8

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

9

BAND

1UA-82591-00-00

1
Out of stock
