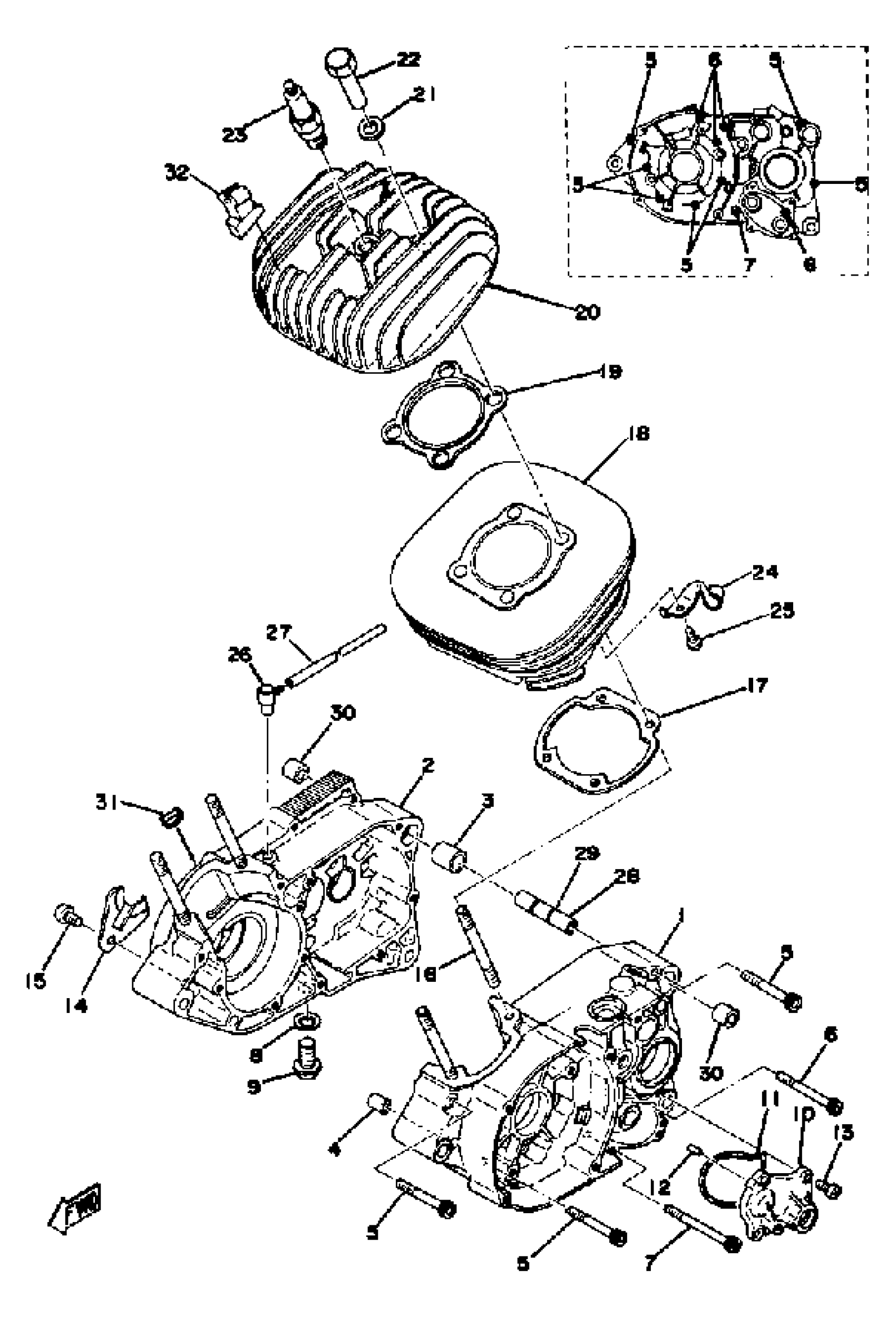

Yamaha YZ125A (YZ125A) 1974 CRANKCASE - CYLINDER YZ125C Diagram

#

Description
Price

1

CRANKCASE 1

(537-15111-00-00)

Unavailable

2

CRANKCASE 2

(537-15121-00-00)

Unavailable

3

PIN, DOWEL

99530-20020-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT,SOCKET

91317-06050-00

$3.88

6

BOLT,SOCKET

91317-06060-00

$3.76

7

BOLT, SOCKET

91317-06070-00

$4.99

8

GASKET (3JD1)

90430-12207-00

$7.99

9

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

10

COVER, SHIFTER 1

401-15419-01-00

Unavailable

11

RING, RUBBER

401-15449-00-00

$29.99

12

PIN,DOWEL (603)

93603-12007-00

$2.55

13

SCREW, PAN

98507-06014-00

$8.49

14

HOLDER (R.H)

304-15128-00-00

$6.99

15

SCREW, PAN

98507-08010-00

$8.49

16

BOLT (248-11361-00)

90116-08064-00

Unavailable

17

GASKET, CYLINDER

1WE-11351-00-00

Unavailable

18

CYLINDER 1

(1G8-11311-00-00)

Unavailable

19

GASKET, CYLINDER HEAD

248-11181-00-00

Unavailable

20

HEAD, CYLINDER 1

(537-11111-00-00)

Unavailable

21

WASHER PLATE 278111750000

90201-12362-00

Unavailable

22

NUT (3V6)

90179-08303-00

Unavailable

23

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

Unavailable

24

HOLDER, CLUTCH CABLE

525-15441-01-00

Unavailable

25

BOLT (661)

97013-06012-00

Unavailable

26

BREATHER

583-15371-00-00

Unavailable

27

HOSE (L570)

90445-07MF1-00

Unavailable

28

SPACER, ENGINE MOUNT

401-15317-00-00

Unavailable

29

O-RING (P95)

93210-11073-00

Unavailable

30

DAMPER

90388-08003-00

Unavailable

31

CLUTCH WEIGHT KIT

(537-17000-09-00)

Unavailable

32

ABSORBER 1

(537-11161-00-00)

Unavailable
