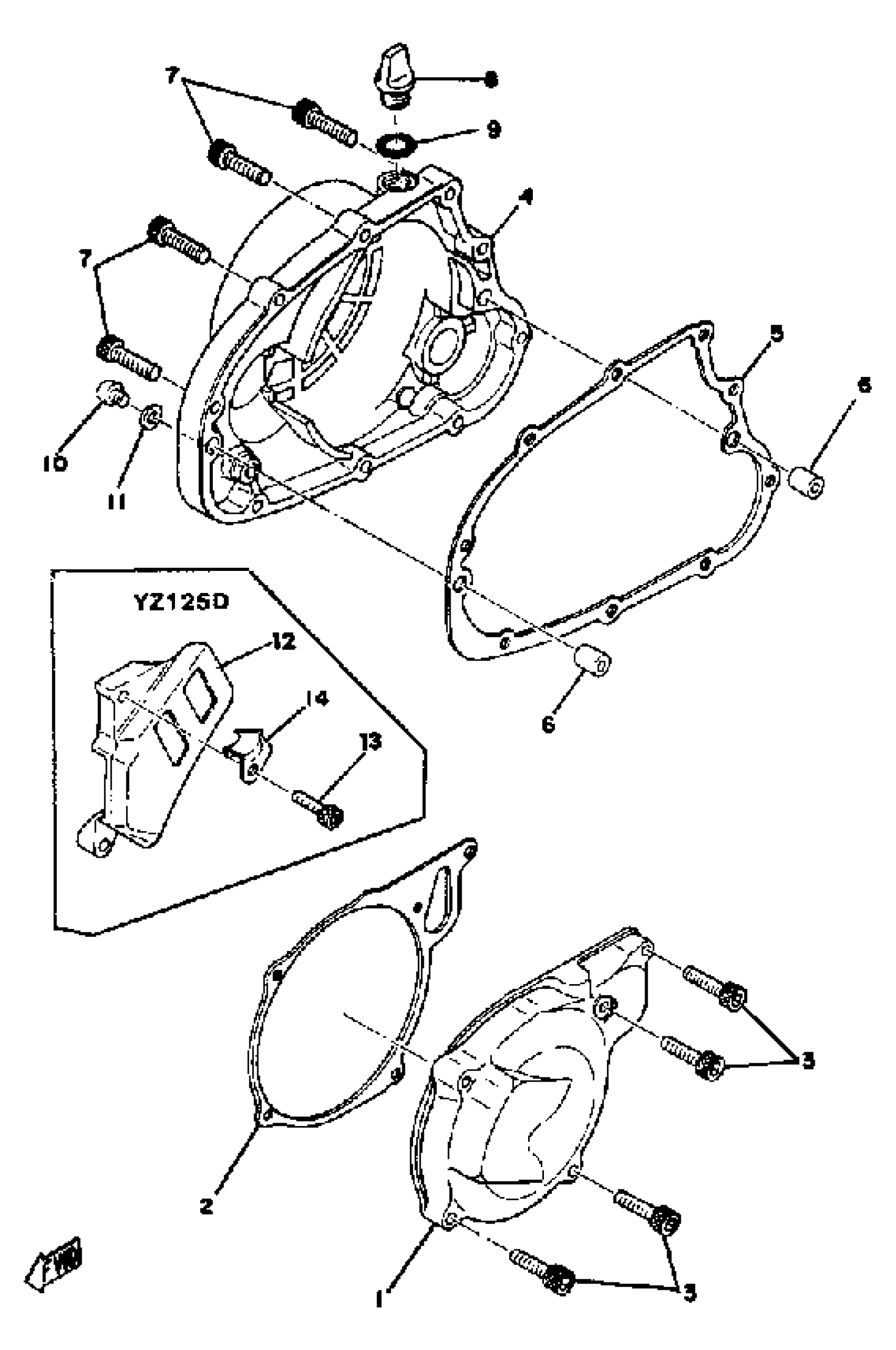

Yamaha YZ125A (YZ125A) 1974 CRANKCASE COVER YZ125C - D Diagram

#

Description
Price

1

COVER, CRANKCASE L

1W1-15411-00-00

Unavailable

1

COVER, CRANKCASE L

3V3-15411-00-00

Unavailable

2

GASKET 1

1W1-15455-01-00

Unavailable

2

GASKET 1

537-15455-10-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

4

COVER, CRANKCASE 3

1W1-15431-00-00

Unavailable

4

COVER, CRANKCASE 3

(537-15431-01-00)

Unavailable

5

GASKET, CRANKCASE COVER 1

18G-15451-03-00

$28.99

5

GASKET, CRCS COVER

537-15451-01-00

Unavailable

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

8

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

9

O-RING (26H)

93210-14579-00

$7.49

10

SCREW, PAN

98517-06008-00

$8.49

11

GASKET 838153840000

90430-06016-00

$8.49

12

COVER, CRANKCASE R

1W1-15421-01-00

Unavailable

13

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

14

CLAMP

(90465-10117-00)

Unavailable
