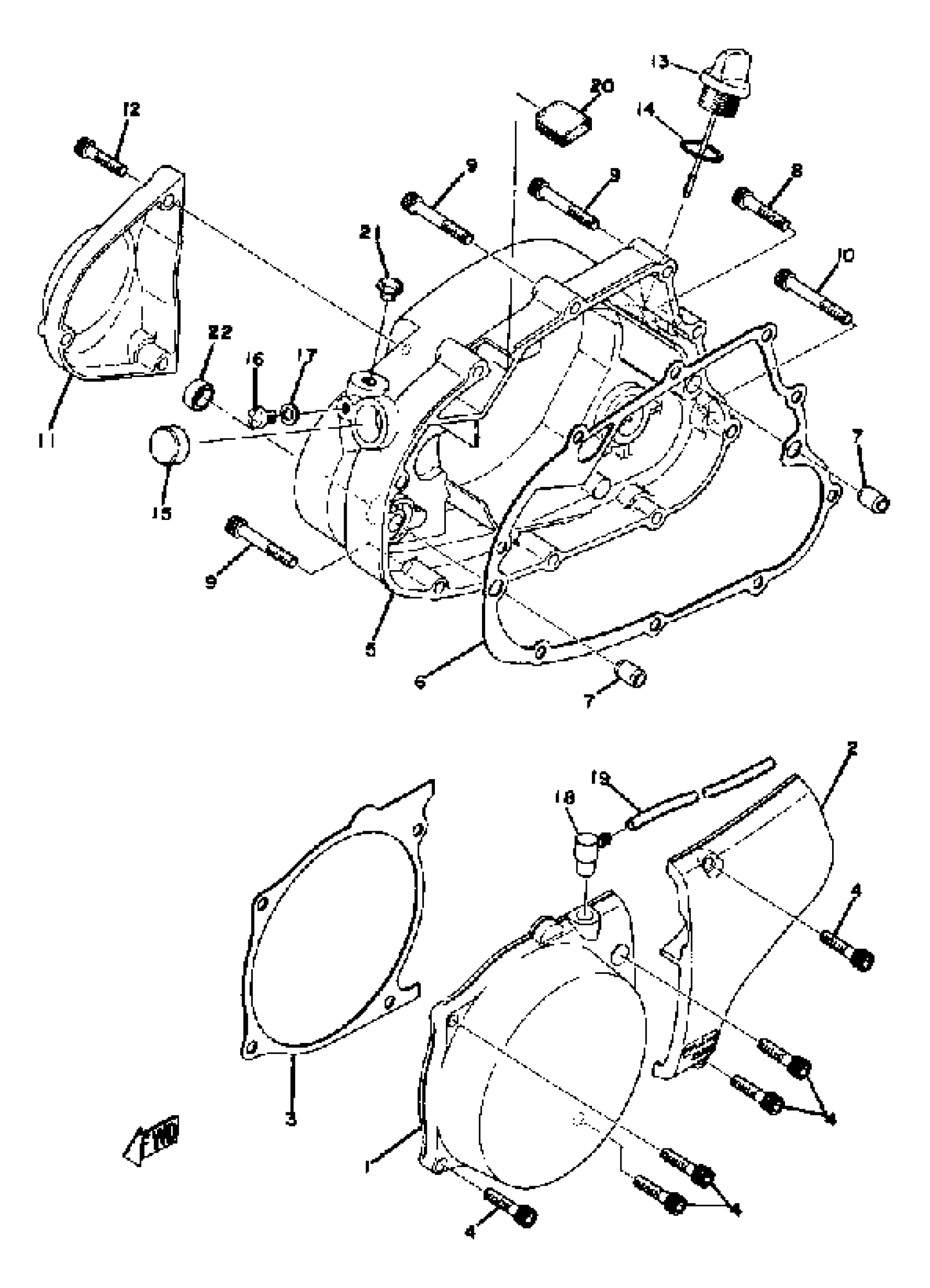

Yamaha YZ125A (YZ125A) 1974 CRANKCASE COVER YZ125A - B Diagram

#

Description
Price

1

COVER, CRANKCASE L

1X0-15411-00-00

Unavailable

2

COVER, CRANKCASE R

401-15421-00-00

Unavailable

3

GASKET 1

401-15455-01-00

Unavailable

4

BOLT,SOCKET

91317-06025-00

$5.60

5

COVER, CRANKCASE 3

401-15431-00-00

Unavailable

6

GASKET, CRANKCASE COVER 1

3UL-15451-00-00

$20.99

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

9

BOLT,SOCKET

91317-06040-00

$3.76

10

BOLT,SOCKET

91317-06045-00

$4.99

11

COVER, OIL PUMP

1X0-15416-00-00

Unavailable

12

BOLT,SOCKET

91317-06025-00

$5.60

13

PLUG, OIL LEVEL

401-15362-00-00

Unavailable

14

O-RING (646)

93210-19123-00

Unavailable

15

PLUG 363174810000

90338-20023-00

$5.60

16

SCREW PAN HEAD

98580-06010-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

BREATHER

583-15371-00-00

Unavailable

19

HOSE

(90446-07009-00)

Unavailable

20

PLUG, SPEC''L SHAPE

(90338-15045-00)

Unavailable

21

PLUG (17J)

90338-07124-00

Unavailable

22

GASKET KIT YZ125A

(402-W0001-00-00)

Unavailable

22

PLUG(12Y)

90338-16029-00

Unavailable
