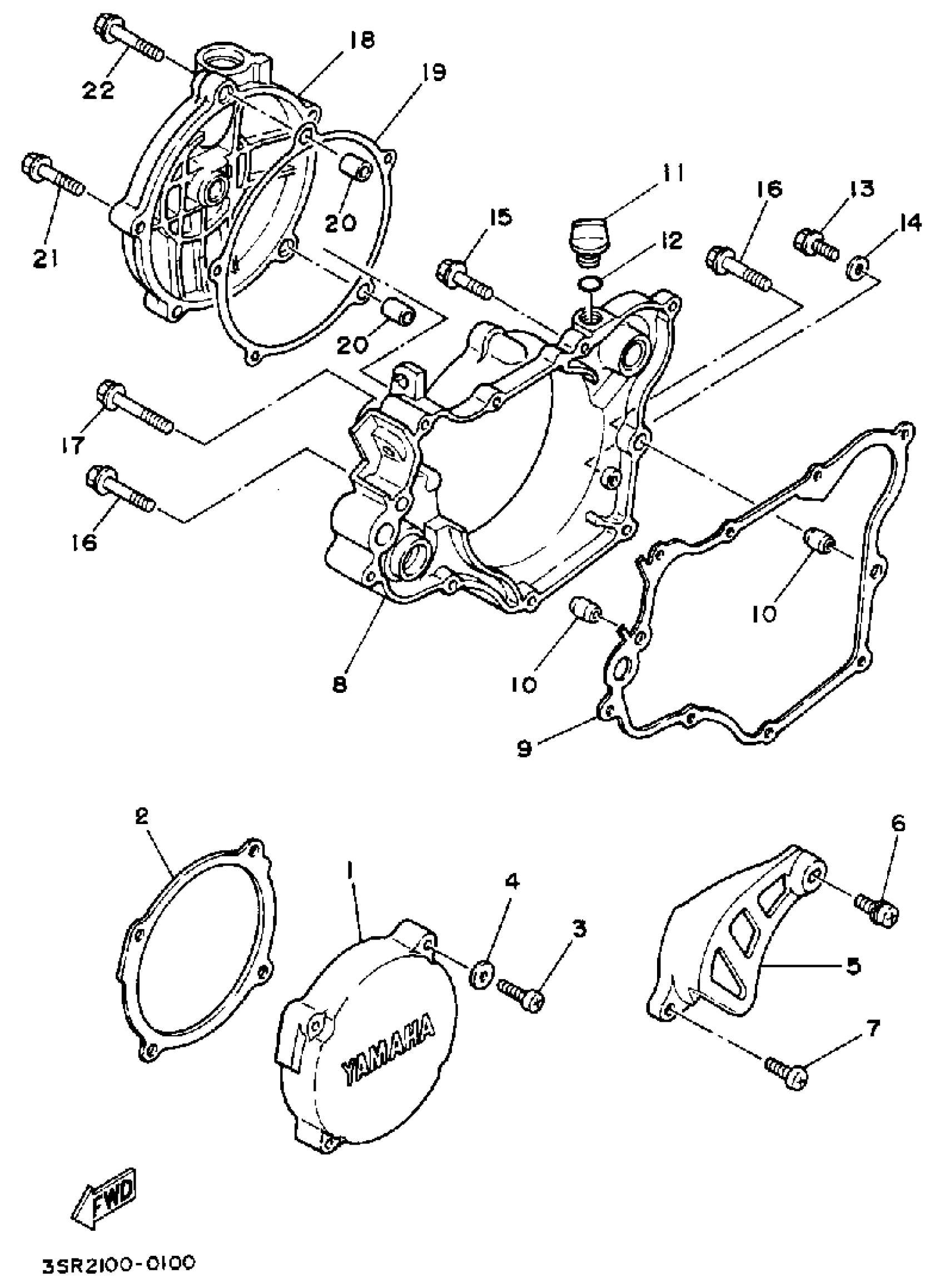

Yamaha YZ125A (YZ125A) 1974 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2VN-15411-00-00

Unavailable

2

GASKET,CRCS COVER

1LX-15451-11-00

Unavailable

3

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

COVER, CRANKCASE 2

3SR-15421-00-00

Unavailable

6

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$9.49

7

SCREW, PAN

98507-06014-00

$8.49

8

COVER, CRANKCASE 3

3JD-15431-00-00

Unavailable

9

GASKET, CRANKCASE COVER 3

1LX-15462-10-00

$25.99

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

12

O-RING (26H)

93210-14579-00

$7.49

13

BOLT, FLANGE(3BM)

95024-06008-00

$9.49

14

GASKET 838153840000

90430-06016-00

$8.49

15

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

16

BOLT, FLANGE(4BH)

95024-06035-00

Unavailable

17

BOLT, FLANGE(4KM)

95024-06040-00

Unavailable

18

CVR,GEN

99999-02818-00

Unavailable

19

GASKET, CARBURETOR COVER

3JD-15463-10-00

Unavailable

20

PIN, DOWEL(3VD)

99530-10114-00

$2.55

21

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

22

BOLT, FLANGE(4KM)

95024-06040-00

Unavailable
